TP-Link TL-SX3016F
  • TP-Link TL-SX3016F
  • TP-Link TL-SX3016F
  • TP-Link TL-SX3016F
  • TP-Link TL-SX3016F
Full Fiber Switch with Lightning-Fast 10G Build and expand your lightning-fast network with TP-Link TL-SX3016F—a fully managed switch with full 16-port 10G fiber ports and 320 Gbps switching capacity. Ideal for small, medium, and large business networks, it meets and surpasses the needs for high-speed, reliable, and safe enterprise networks.Seamless Integration to Omada Cloud SDN Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.Dual Redundant Power Supplies Two power supplies backing each other up make it an ideal choice for reliable networking architecture.Advanced L3 Features An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses and ISPs.Secure Networking Our high-quality security features defend against a range of network threats. They include IP-MAC-Port-VID Binding, Port Security, Storm Control, and DHCP Snooping. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. The Access Control Lists (ACL, L2 to L4) restrict access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. User access to the network can be controlled through 802.1X authentication to grant access according to the valid user credentials.Enterprise Level Features A complete lineup of L2+ features is supported. 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control are among the innovative features. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to appropriate subscribers and reducing unnecessary traffic, while IGMP throttling & filtering restrict subscribers at the port level to prevent unauthorized multicast access. Static Routing segments the network to route traffic efficiently.Advanced Quality of Service (QoS) Voice and video traffic and be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS, voice and video services remain smooth, even in situations of low bandwidth.ISP Features Internet Service Providers (ISPs) get the support they need with features including sFlow, QinQ, L2PT, PPPoE ID Insertion, and IGMP authentication. 802.3ah OAM and Device Link Detection Protocol (DLDP) provide straightforward monitoring and troubleshooting of Ethernet links across the entire network.IPv6 Support An enormous variety of IPv6 functions guarantees your network will be ready for the Next Generation Network (NGN) without the need to upgrade your hardware. Take advantage of features such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery, and IPv6 Neighbor Discover to enhance your network environment.
10G supportYes
AC input frequency50/60 Hz
AC input voltage100 - 240 V
Access Control List (ACL)Y
Basic switching RJ-45 Ethernet ports typeNone
Cables includedAC
CertificationCE, FCC, RoHS
Console portRJ-45/micro-USB
Depth220 mm
Flow control supportY
Forwarding rate238.08 Mpps
Head-of-line (HOL) blockingY
Heat dissipation111.71 BTU/h
Height44 mm
IGMP snoopingY
Jumbo frames supportY
Link aggregationY
MAC address table32000 entries
MIB supportRFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213
Multicast supportY
Networking standardsIEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ad,IEEE 802.3x
Number of queues8
Number of VLANs4000
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 45 °C
Port mirroringY
Power consumption (max)32.74 W
Quality of Service (QoS) supportY
Quick start guideY
Rack mountingYes
Rate limitingY
Security algorithmsHTTPS,SSH,SSH-2,SSL/TLS
Spanning tree protocolY
Storage relative humidity (H-H)5 - 90 %
Storage temperature (T-T)-40 - 70 °C
Switch layerL2/L2+
Switch typeManaged
Switching capacity320 Gbit/s
System event logY
VLAN supportY
Web-based managementY
Width440 mm
Jumbo frames9000
IP-MAC-Port bindingY
SFP+ module slots quantity16
BPDU filtering/protectionY
AuthenticationGuest VLAN,MAC-based authentication,Port-based authentication
Authentication typeAAA,TACACS+
Queue scheduling algorithmsSP,WRR+SP,Weighted Round Robin (WRR)
Product colourBlack
Virtual LAN featuresPrivate VLAN,Protocol-based VLAN,Tagged VLAN,Voice VLAN
DHCP featuresDHCP relay,DHCP server,DHCP snooping,DHCPv6 client,DHCPv6 snooping

tl-sx3016f.pdf

TP-Link TL-SX3016F Data Sheet

Download (1012.29k)

You might also like

  • TP-LINK TL-SM311LM
    TP-LINK TL-SM311LM
  • TP-LINK Gigabit SFP Media Converter
    TP-LINK Gigabit SFP Media Converter
  • LC - LC Multimode Duplex Fibre Patch Leads
    LC - LC Multimode Duplex Fibre Patch Leads

Similar products

  • TP-LINK 8-Port Gigabit Easy Smart Switch with 4-Port PoE
    TP-LINK 8-Port Gigabit Easy Smart Switch...
  • TP-LINK LS1005
    TP-LINK LS1005
  • TP-LINK LS1005G
    TP-LINK LS1005G
  • TP-LINK LS1008
    TP-LINK LS1008
  • TP-LINK LS1008G
    TP-LINK LS1008G

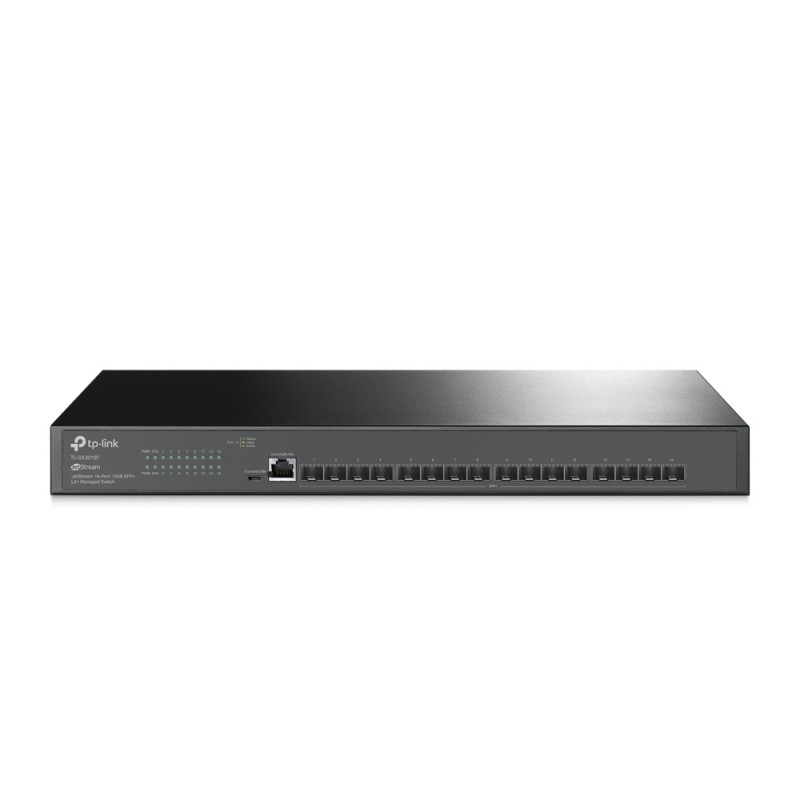

TP-Link TL-SX3016F

320 Gbps, 238.08 Mpps, 16x 10G SFP+, RJ-45, Micro-USB, 440 × 220 × 44 mm

TL-SX3016F

Out of Stock

£530.77
£442.31 Ex VAT.
