10G support | No |
AC input frequency | 50/60 Hz |
AC input voltage | 100 - 240 V |
Access Control List (ACL) | Y |
Basic switching RJ-45 Ethernet ports quantity | 48 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Broadcast storm control | Y |
Console port | RJ-45/micro-USB |
Depth | 330 mm |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Flow control support | Y |
Forwarding rate | 77.4 Mpps |
Head-of-line (HOL) blocking | Y |
Height | 44 mm |
IGMP snooping | Y |
IP routing | Y |
Jumbo frames support | Y |
Link aggregation | Y |
MAC address filtering | Y |
MAC address table | 16000 entries |
Manual | Y |
Multicast support | Y |
Networking standards | IEEE 802.1D,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.3ad,IEEE 802.3x |
Number of fans | 3 fan(s) |
Number of VLANs | 4000 |
Operating relative humidity (H-H) | 10 - 90 % |
Operating temperature (T-T) | 0 - 40 °C |
Package type | box |
Password protection | Y |
Port mirroring | Y |
Power consumption (max) | 485.4 W |
Power over Ethernet (PoE) | Yes |
Power over Ethernet plus (PoE+) ports quantity | 48 |
Power supply included | Y |
Quality of Service (QoS) support | Y |
Rack mounting | Yes |
Rate limiting | Y |
Spanning tree protocol | Y |
SSH/SSL support | Y |
Storage relative humidity (H-H) | 5 - 90 % |
Storage temperature (T-T) | -40 - 70 °C |
Switch layer | L2/L2+ |
Switch type | Managed |
Switching capacity | 104 Gbit/s |
System event log | Y |
Total Power over Ethernet (PoE) budget | 384 W |
VLAN support | Y |
Web-based management | Y |
Width | 440 mm |
ARP inspection | Y |
SFP module slots quantity | 4 |
BPDU filtering/protection | Y |
Loop protection | Y |
Authentication | MAC-based authentication,Port-based authentication |
Power over Ethernet (PoE) power per port | 30 W |
Active link detection | Y |
Static route | Y |
Configuring Location Settings (CLI) | Y |
Product colour | Black |
Policy-based routing | Y |
DHCP features | DHCP client,DHCP relay,DHCP server,DHCP snooping,DHCPv6 client,DHCPv6 snooping |
Cloud-managed | Y |
IGMP entries | 511 |
48× 10/100/1000 Mbps RJ45, 4× Gigabit SFP, 1× RJ45 Console Port, 1× Micro-USB, PoE+, 104 Gbps, 77.4 Mpps, 440 × 330 × 44 mm

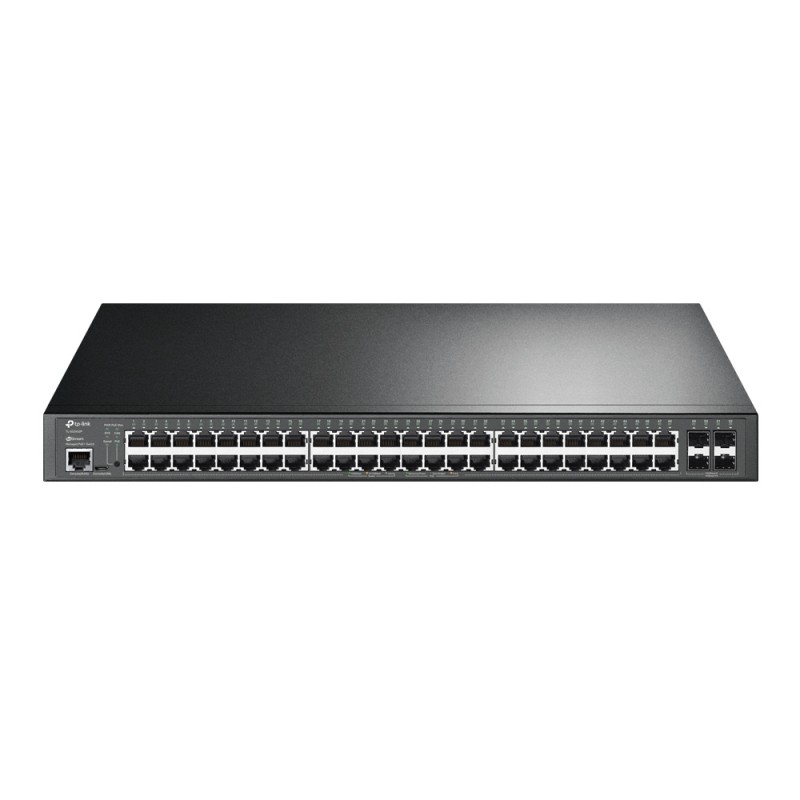

TL-SG3452P
In Stock
