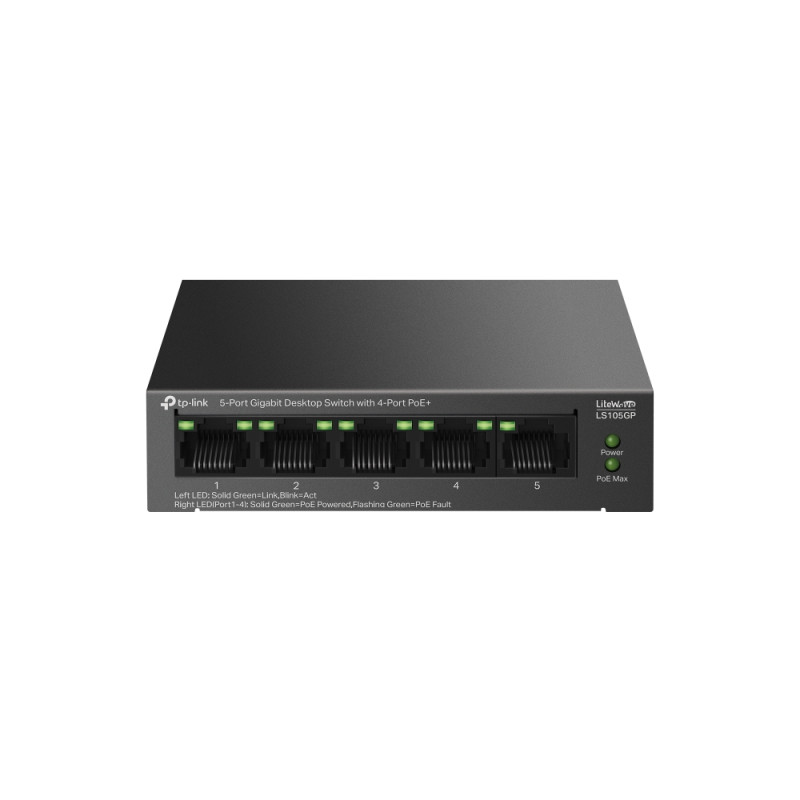

TP-Link 5-Port Gigabit Desktop Switch with 4-Port PoE+
  • TP-Link 5-Port Gigabit Desktop Switch with 4-Port PoE+
  • TP-Link 5-Port Gigabit Desktop Switch with 4-Port PoE+
  • TP-Link 5-Port Gigabit Desktop Switch with 4-Port PoE+
  • TP-Link 5-Port Gigabit Desktop Switch with 4-Port PoE+
  • TP-Link 5-Port Gigabit Desktop Switch with 4-Port PoE+
Overview
The TP-Link LiteWave Series PoE Switches require no configuration and provide PoE (Power over Ethernet) ports. They can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
10G supportNo
AC input frequency50 Hz
AC input voltage220 V
Auto MDI/MDI-XY
Auto-negotiationY
Basic switching RJ-45 Ethernet ports quantity5
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Cable types supportedCat3,Cat5e,Cat4,Cat5
CertificationCE, FCC, RoHS
DC input voltage53.5 V
Depth98 mm
Flow control supportY
Forwarding rate7.44 Mpps
Heat dissipation253.16 BTU/h
Height25 mm
IGMP snoopingY
LED indicatorsY
MAC address table2000 entries
Networking standardsIEEE 802.1p,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 40 °C
Package typebox
Power consumption (max)74.46 W
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity4
Power sourceDC/PoE
Power supply includedY
Quality of Service (QoS) supportY
Storage relative humidity (H-H)5 - 90 %
Storage temperature (T-T)-40 - 70 °C
Store-and-forwardY
Switch typeUnmanaged
Switching capacity10 Gbit/s
Total Power over Ethernet (PoE) budget65 W
User guideY
Width99.8 mm
Jumbo frames16000
MAC address auto-learning supportedY
MAC address auto-aging supportedY
Power over Ethernet (PoE) power per port30 W
Product colourBlack

ls105gp.pdf

TP-Link 5-Port Gigabit Desktop Switch with 4-Port PoE+ Data Sheet

Download (5.07M)
