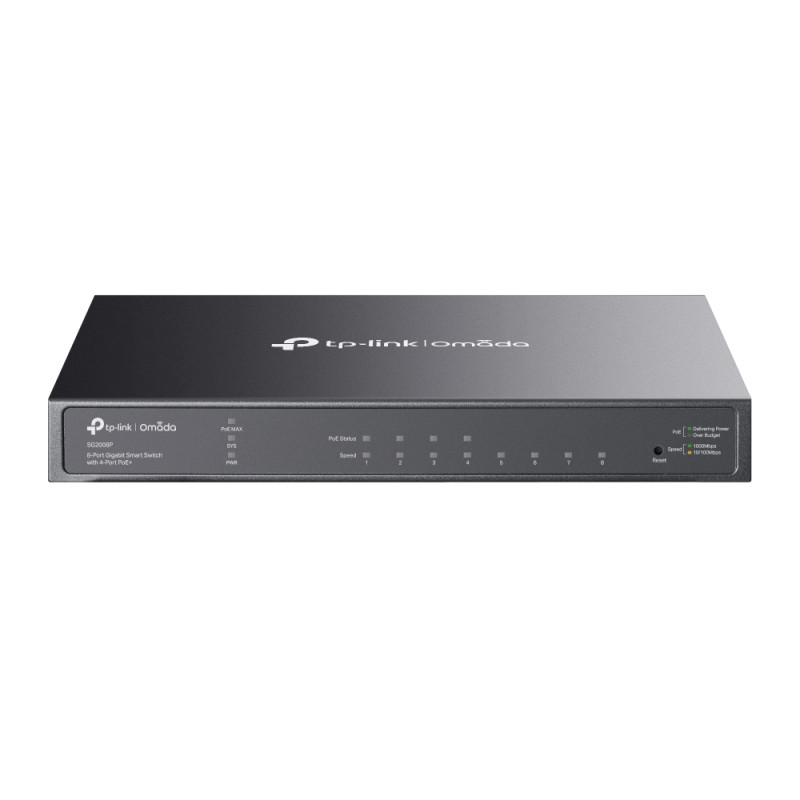

TP-Link Omada 8-Port Gigabit Smart Switch with 4-Port PoE+
  • TP-Link Omada 8-Port Gigabit Smart Switch with 4-Port PoE+
  • TP-Link Omada 8-Port Gigabit Smart Switch with 4-Port PoE+
  • TP-Link Omada 8-Port Gigabit Smart Switch with 4-Port PoE+
  • TP-Link Omada 8-Port Gigabit Smart Switch with 4-Port PoE+
  • TP-Link Omada 8-Port Gigabit Smart Switch with 4-Port PoE+
  • TP-Link Omada 8-Port Gigabit Smart Switch with 4-Port PoE+
  • TP-Link Omada 8-Port Gigabit Smart Switch with 4-Port PoE+
TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.
10G supportNo
Auto MDI/MDI-XY
Auto-negotiationY
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Broadcast storm controlY
CertificationCE, FCC, RoHS
Depth126 mm
Flow control supportY
Forwarding rate11.9 mpps
Heat dissipation263.6 BTU/h
Height26 mm
IGMP snoopingY
Jumbo frames supportY
LED indicatorsY
Link aggregationY
MAC address filteringY
MAC address table8000 entries
Management protocolsSNMPv1/v2c/v3
ManualY
MIB supportMIB II (RFC1213) Bridge MIB (RFC1493) P/Q-Bridge MIB (RFC2674) Radius Accounting Client MIB (RFC2620) Radius Authentication Client MIB (RFC2618) Remote Ping, Traceroute MIB (RFC2925) Support TP-Link private MIBs RMON MIB(RFC1757, rmon 1,2,3,9)
Multicast supportY
Networking standardsIEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x
Number of queues8
Number of VLANs4094
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 40 °C
Package typebox
Packet buffer memory4.1 MB
Port mirroringY
Power consumption (max)77.3 W
Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity4
Power supply includedY
Quality of Service (QoS) supportY
Rack mountingYes
Rate limitingY
Security algorithms802.1x RADIUS
Spanning tree protocolY
Storage relative humidity (H-H)5 - 90 %
Storage temperature (T-T)-40 - 70 °C
Switch layerL2/L2+
Switch typeManaged
Switching capacity16 Gbit/s
System event logY
VLAN supportY
Web-based managementY
Width209 mm
ARP inspectionY
Jumbo frames9000
AuthenticationMAC-based authentication,Web-based authentication
Authentication typeRADIUS
Product colourBlack
IPv4 & IPv6 featuresIPv6 Telnet,IPv6 ping,IPv6 tracert
DHCP featuresDHCP client,DHCP relay,DHCP snooping,DHCPv6 server,DHCPv6 snooping
FanlessY

sg2008p.pdf

TP-Link Omada 8-Port Gigabit Smart Switch with 4-Port PoE+ Data Sheet

Download (23.29M)

Similar products

  • TP-LINK 8-Port Gigabit Easy Smart Switch with 4-Port PoE
    TP-LINK 8-Port Gigabit Easy Smart Switch with 4-Port PoE
  • TP-LINK LS1005
    TP-LINK LS1005
  • TP-LINK LS1005G
    TP-LINK LS1005G
  • TP-LINK LS1008
    TP-LINK LS1008
  • TP-LINK LS1008G
    TP-LINK LS1008G

TP-Link Omada 8-Port Gigabit Smart Switch with 4-Port PoE+

8× 10/100/1000 Mbps RJ45 PoE, 16 Gbps, 8K MAC, 9 KB Jumbo, 209 x 126 x 26mm

sg2008p

In Stock

£97.50
£81.25 Ex VAT.
