TP-Link Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out
  • TP-Link Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out
  • TP-Link Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out
  • TP-Link Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out
  • TP-Link Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out
  • TP-Link Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out
PoE-Powered PoE Switch for
Simplified Outdoor Network Deployment

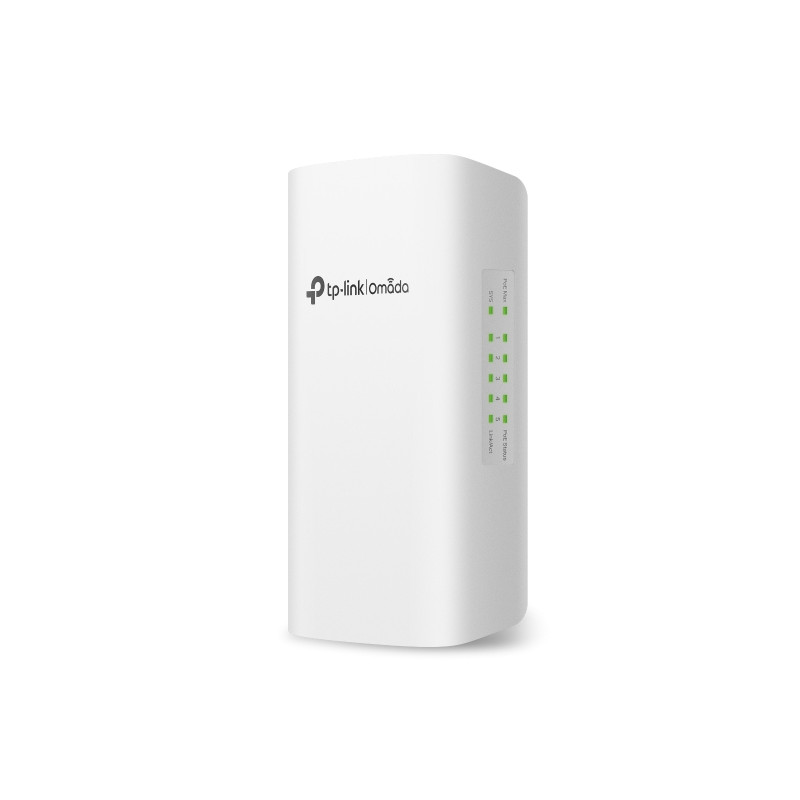

Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out

Standard PoE Passthrough to Extend Power and Data Transmission Distance up to 200 m Without Losing Gigabit Speeds
Eliminate mains access location limits and transmit data and power through one cable, simplifying installation and cutting deployment costs. Doubles PoE source-to-device connection distance from 100 m (328 ft) to 200 m (656 ft), perfect for long-range surveillance cameras and access points.

One Gigabit PoE++ In Port and Four Gigabit PoE+ Out Ports
Supports up to 64 W / 44 W / 19 W/ 6 W PoE budget output when powered by 802.3bt Type 4 (90 W), 802.3bt Type 3 (60 W), 802.3at, and 802.3af PoE, respectively.** The PoE-PD switch automatically detects the required PoE power for your devices and protects your non-PoE equipment from being damaged.

Specially Designed Weatherproof Enclosure for Outdoors
Rated as IP55 during Ingress Protection testing, a resilient weatherproof enclosure protects the switch against harsh outdoor conditions.

Easy Installation to Flexibly Fit Your Needs
Easy to mount to a wall or pole with the provided mounting kits. Its compact design allows you to place the switch flexibly, such as in an outdoor Junction Box.

Value-Added Features Foster Touchpoint Experiences

Static Routing
Helps route internal traffic for more efficient use of network resources.

Access Control List (ACL)
ACL serves as a virtual admin, allowing all connected devices to obtain data in accordance with user-defined network rules and help you create the network regulations you need.

QoS for Lag-Free Experiences
Designate the priority of traffic based on QoS, ensuring latency-sensitive applications, like voice and video, remain clear and lag-free.

VLAN for Security and Flexible Management
VLAN allows for logical grouping management of devices in different physical LANs, improving information security and reducing data congestion.

Software Defined Networking (SDN) with Cloud Access
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface.
10G supportYes
Access Control List (ACL)Y
Basic switching RJ-45 Ethernet ports quantity4
Basic switching RJ-45 Ethernet ports type10G Ethernet (100/1000/10000)
Cable types supportedCat5,Cat5e
Copper ethernet cabling technology10BASE-T,100BASE-TX,100BASE-T
Depth100 mm
Flow control supportY
Form factorDesktop
Heat dissipation243.99 BTU/h
Height38.5 mm
IGMP snoopingY
Jumbo frames supportY
LED indicatorsY
Link aggregationY
MAC address filteringY
MAC address table8000 entries
MIB supportY
Multicast supportY
Networking standardsIEEE 802.11d,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x
Number of VLANs4000
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)-40 - 60 °C
Packet buffer memory4.1 MB
Password protectionY
Port mirroringY
Power consumption (typical)71.5 W
Power over Ethernet (PoE)Yes
Power sourceDC/PoE
Power supply includedY
Quality of Service (QoS) supportY
Rack mountingNo
Security algorithms802.1x RADIUS
Spanning tree protocolY
StackableNo
Storage relative humidity (H-H)5 - 90 %
Storage temperature (T-T)-40 - 70 °C
Switch layerL2/L2+
Switch typeManaged
Switching capacity10 Gbit/s
VLAN supportY
Web-based managementY
Width170 mm
ARP inspectionY
Jumbo frames9
IP-MAC-Port bindingY
AuthenticationMAC-based authentication,Port-based authentication
Packet forwarding rate (1 Gbps)7440 pps
Power over Ethernet (PoE) power per port64 W
Product colourWhite
IPv4 multicast entries511
IPv6 multicast entries511
Virtual LAN featuresVoice VLAN
IPv4 & IPv6 featuresDual stack IPv4/IPv6,IPv4/IPv6 access-control list (ACL),IPv6 tracert
DHCP featuresDHCP relay,DHCP server
Cloud-managedY
Access Control List (ACL) IPv4 entries32
Multicast MAC address table8000 entries
Sustainability complianceY
IPv4 routes32
IPv6 routes32
10G Ethernet (copper) ports quantity4
Compliance certificatesCE,RoHS

sg2005p-pd.pdf

TP-Link Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out Data Sheet

Download (23.29M)

Similar products

  • TP-LINK 8-Port Gigabit Easy Smart Switch with 4-Port PoE
    TP-LINK 8-Port Gigabit Easy Smart Switch with 4-Port PoE
  • TP-LINK LS1005
    TP-LINK LS1005
  • TP-LINK LS1005G
    TP-LINK LS1005G
  • TP-LINK LS1008
    TP-LINK LS1008
  • TP-LINK LS1008G
    TP-LINK LS1008G

TP-Link Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out

1× 10/100/1000 Mbps RJ45 PoE In, 4× 10/100/1000 Mbps RJ45 PoE Out, 10 Gbps, 8K MAC, 9 KB Jumbo, 100 x 38.5 x 170 mm

sg2005p-pd

In Stock

£97.50
£81.25 Ex VAT.
