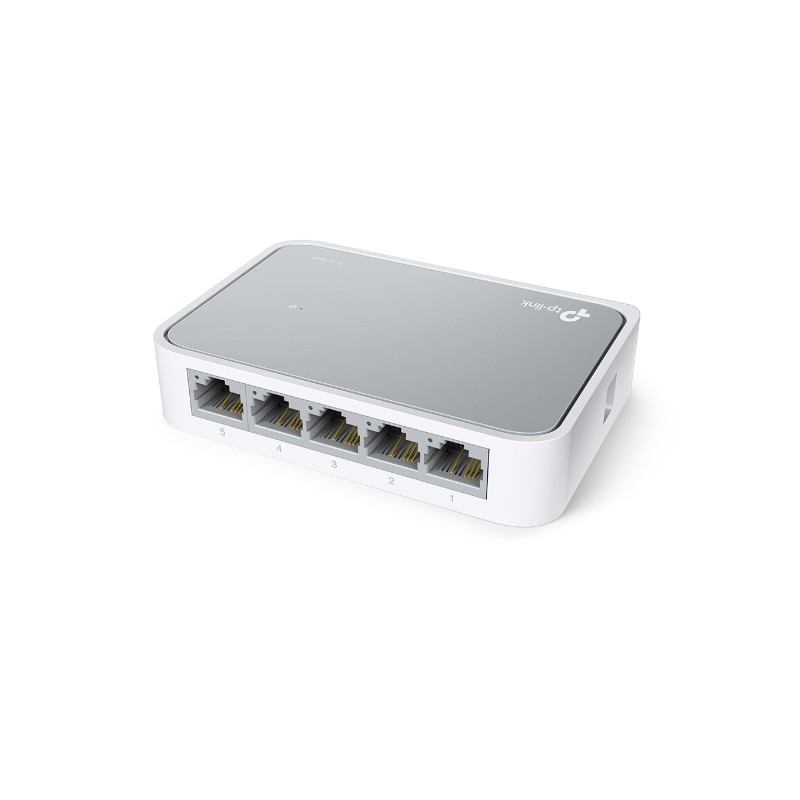

TP-LINK TL-SF1005D V15
  • TP-LINK TL-SF1005D V15
  • TP-LINK TL-SF1005D V15
  • TP-LINK TL-SF1005D V15
  • TP-LINK TL-SF1005D V15
The TL-SF1005D 5-Port 10/100Mbps desktop switch provides an easy way to expand your wired network. All 5 ports support auto-MDI/MDIX, eliminating the need to worry about the type of cable to use. Featuring full duplex mode, the TL-SF1005D can process data at a rate of up to 200Mbps making it an ideal choice for expanding your high performance wired network. Moreover, with innovative energy-efficient technology, the TL-SF1005D can save power consumption, making it an eco-friendly solution for your home or office network.



High Performance

TL-SF1005D Fast Ethernet Switch provides 5 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports..Featuring non-blocking switching architecture,TL-SF1005D forwards and filters packets at full wire-speed for maximum throughput. With 2K Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1005D work reliably.
10G supportNo
AC input frequency50 Hz
AC input voltage220 V
Auto MDI/MDI-XY
Auto-negotiationY
Basic switching RJ-45 Ethernet ports quantity5
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Cables includedAC
CertificationFCC, RoHS
Copper ethernet cabling technology10BASE-T,100BASE-T
Depth22 mm
Ethernet LAN data rates10,100 Mbit/s
Fast Ethernet (copper) ports quantity5
Flow control supportY
Full duplexY
Heat dissipation6.4 BTU/h
Height70 mm
LED indicatorsY
MAC address table1000 entries
ManualY
Networking standardsIEEE 802.3u,IEEE 802.3x
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 40 °C
Package typebox
Power consumption (max)1.87 W
Power consumption (typical)1.87 W
Power over Ethernet (PoE)No
Quality of Service (QoS) supportY
Rack mountingNo
Spanning tree protocolY
Storage relative humidity (H-H)5 - 90 %
Storage temperature (T-T)-40 - 70 °C
Store-and-forwardY
Supported network protocolsCSMA/CD, TCP/IP
Switch typeManaged
Switching capacity1.6 Gbit/s
Web-based managementY
Width104 mm
Power connectorDC-in jack
Product colourWhite

TL-SF1005DV15.pdf

TP-LINK TL-SF1005D V15 Data Sheet

Download (1.38M)
