Overview
The TP-Link LiteWave Series PoE Switches require no configuration and provide PoE (Power over Ethernet) ports. They can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
The TP-Link LiteWave Series PoE Switches require no configuration and provide PoE (Power over Ethernet) ports. They can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
| 10G support | No |
| AC input frequency | 50 Hz |
| AC input voltage | 220 V |
| Auto MDI/MDI-X | Y |
| Auto-negotiation | Y |
| Basic switching RJ-45 Ethernet ports quantity | 9 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Cable types supported | Cat3,Cat4,Cat5,Cat5e |
| Certification | CE, FCC, RoHS |
| DC input voltage | 53.5 V |
| Depth | 126 mm |
| Flow control support | Y |
| Forwarding rate | 14.88 Mpps |
| Heat dissipation | 261.66 BTU/h |
| Height | 26 mm |
| LED indicators | Y |
| MAC address table | 4000 entries |
| Networking standards | IEEE 802.1p,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Package type | box |
| Power consumption (max) | 76.96 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power source | DC/PoE |
| Power supply included | Y |
| Quality of Service (QoS) support | Y |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Store-and-forward | Y |
| Switch type | Unmanaged |
| Switching capacity | 20 Gbit/s |
| Total Power over Ethernet (PoE) budget | 61 W |
| User guide | Y |
| Width | 209 mm |
| Jumbo frames | 16000 |
| SFP module slots quantity | 1 |
| Power over Ethernet (PoE) power per port | 30 W |
| Product colour | Black |
You might also like
-
12 Port Cat6 10" UTP Patch Panel
Similar products
-
TP-LINK 8-Port Gigabit Easy Smart Switch with 4-Port PoE
-
TP-LINK LS1005
-
TP-LINK LS1005G
-
TP-LINK LS1008
-
TP-LINK LS1008G

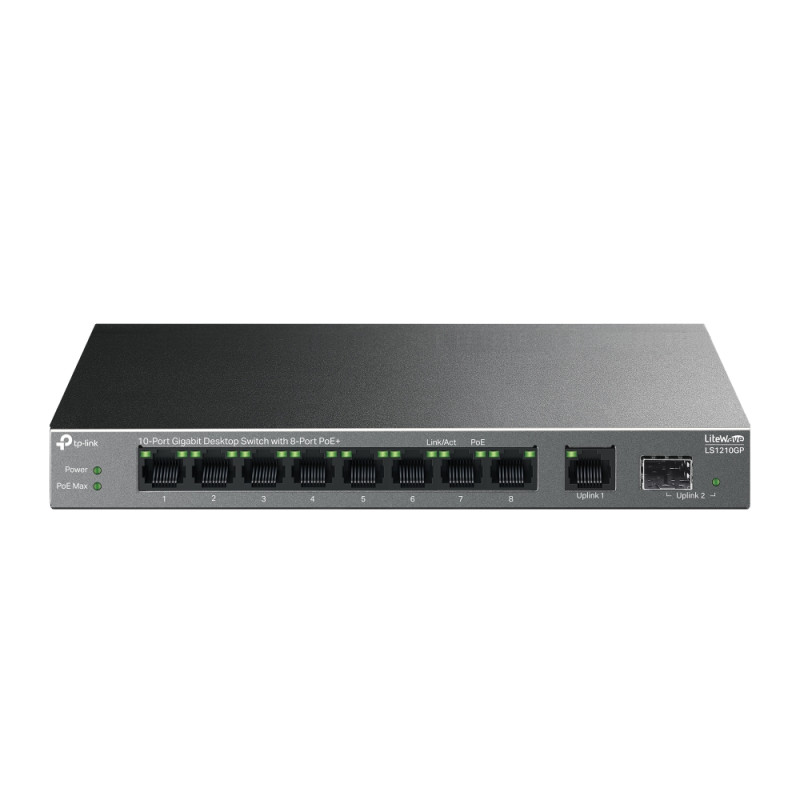

TP-Link 10-Port Gigabit Desktop Switch with 8-Port PoE+
