10G support | No |
Basic switching RJ-45 Ethernet ports quantity | 9 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Broadcast storm control | Y |
DC input voltage | 53.5 V |
Depth | 126 mm |
Fiber optic connector | SFP |
Fiber ports quantity | 1 |
Forwarding rate | 14.88 Mpps |
Height | 26 mm |
IGMP snooping | Y |
Input current | 2.43 A |
Jumbo frames support | Y |
LED indicators | Y |
MAC address table | 4000 entries |
Manual | Y |
Networking standards | IEEE 802.1Q,IEEE 802.1p,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
Operating relative humidity (H-H) | 10 - 90 % |
Operating temperature (T-T) | 0 - 40 °C |
Port mirroring | Y |
Power supply included | Y |
Quality of Service (QoS) support | Y |
Rack mounting | Yes |
Rate limiting | Y |
Storage relative humidity (H-H) | 5 - 95 % |
Storage temperature (T-T) | -40 - 70 °C |
Store-and-forward | Y |
Switching capacity | 20 Gbit/s |
Width | 209 mm |
Jumbo frames | 16 |
Loop protection | Y |
Power connector | DC-in jack |
Product colour | Black |

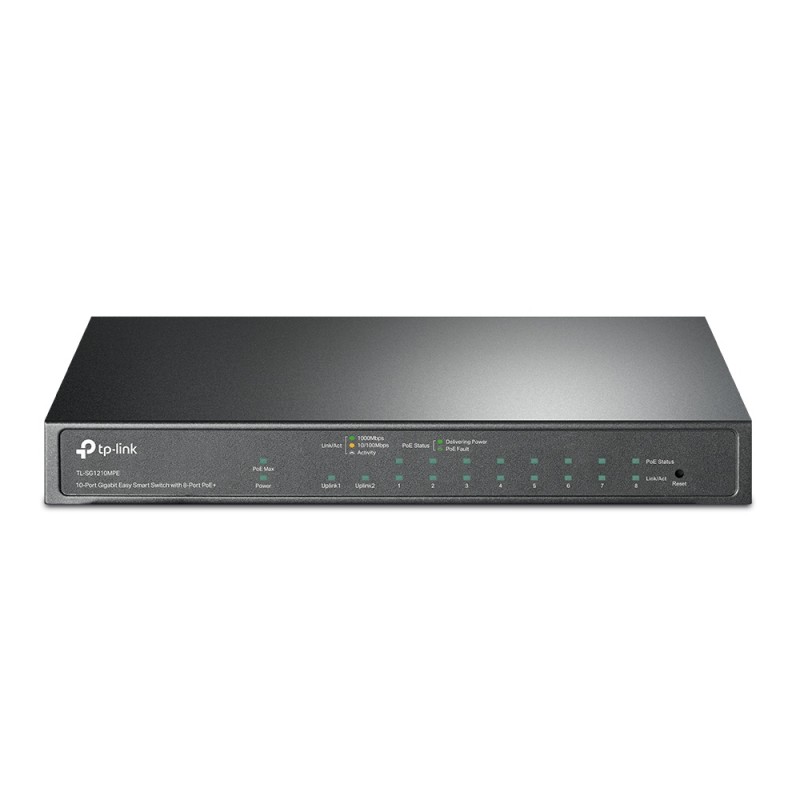

9× 10/100/1000 Mbps RJ45, 1× 1000 Mbps Combo SFP/RJ45, 20 Gbps, 4 K MAC, 209 × 126 × 26 mm
TL-SG1210MPE
In Stock
