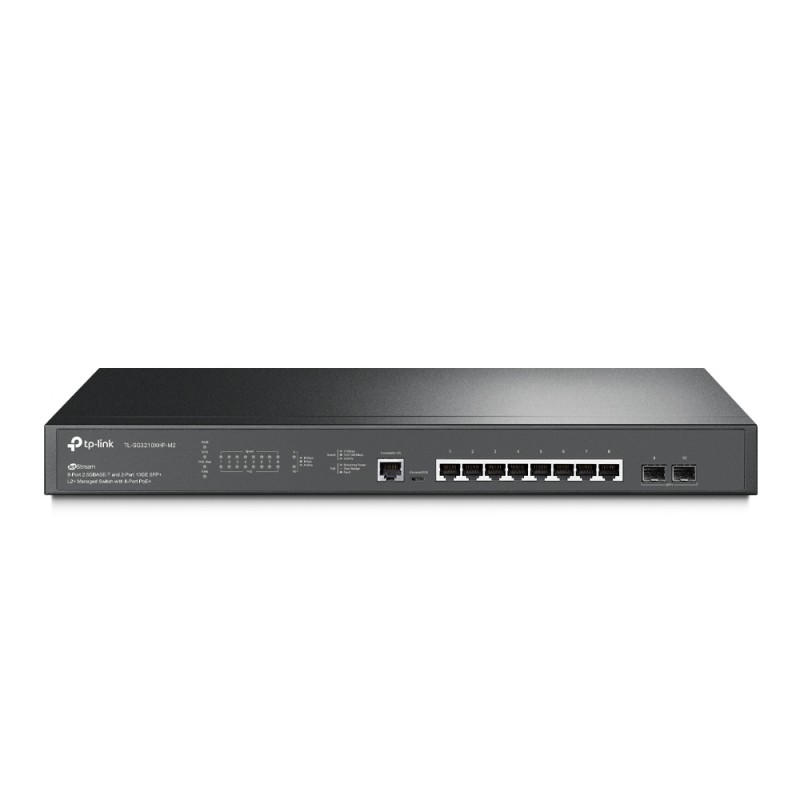

TP-LINK JetStream 8-Port 2.5GBASE-T and 2-Port 10GE SFP+ L2+ Managed Switch with 8-Port PoE+
  • TP-LINK JetStream 8-Port 2.5GBASE-T and 2-Port 10GE SFP+ L2+ Managed Switch with 8-Port PoE+
  • TP-LINK JetStream 8-Port 2.5GBASE-T and 2-Port 10GE SFP+ L2+ Managed Switch with 8-Port PoE+
  • TP-LINK JetStream 8-Port 2.5GBASE-T and 2-Port 10GE SFP+ L2+ Managed Switch with 8-Port PoE+
  • TP-LINK JetStream 8-Port 2.5GBASE-T and 2-Port 10GE SFP+ L2+ Managed Switch with 8-Port PoE+
Ultrafast 2.5G PoE+ Managed Switch with 10G Uplink for a Complete Omada Network2.5G PoE+ Ports for WiFi 6 8× 2.5 Gbps Ports Unlock the Full Potential of WiFi 6 APs10G Lightning-Fast Uplink Connection 2× 10 Gbps SFP+ Slots for High-Bandwidth ConnectivityPoE+ Output 8 PoE+ Ports with Total 240 W Power Budget*Centralized Cloud Management SDN Solutions Integration for a Highly Efficient NetworkUnlock the Full Potential of WiFi 6 with Multi-Gigabit PoE+ Ports Featuring 8× 2.5 Gbps PoE+ ports, the switch is capable of future network expansion and deployment, providing sufficient bandwidth for incoming WiFi 6 APs. Designed to use a single Ethernet cable for both data and power transmission, it supports up to 240 W total PoE power budget* and flexible installation to fit in various application scenarios.Enterprise Switch with 10G Uplink 2× 10 Gbps SFP+ slots provide non-blocking switching performance and ultra-low latency, so reliable and lightning-fast connections to servers and other switches are easily built.Software-Defined Networking (SDN) with Cloud Access Omada’s Software-Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.Advanced L3 Features An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses, and ISPsSecure Networking Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. Users’ network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.Enterprise Level Features A complete lineup of L2+ features are supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency.Advanced QoS Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.ISP Features sFlow, QinQ, L2PT PPPoE ID Insertion, and IGMP authentication features are provided, developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links.IPv6 Support IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery, and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.
10G supportYes
AC input frequency50/60 Hz
AC input voltage100 - 240 V
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports type2.5G Ethernet (100/1000/2500)
Broadcast storm controlY
Cables includedAC
CertificationCE, FCC, RoHS
Console portRJ-45/micro-USB
Depth180 mm
Ethernet LAN data rates100,1000,2500 Mbit/s
Flow control supportY
Forwarding rate59.52 Mpps
Head-of-line (HOL) blockingY
Height44 mm
IGMP snoopingY
IP routingY
Link aggregationY
MAC address filteringY
MAC address table16000 entries
MIB supportY
Multicast supportY
Networking standardsIEEE 802.1D,IEEE 802.1s,IEEE 802.1w
Number of fans2 fan(s)
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 45 °C
Package typebox
Password protectionY
Port mirroringY
Power over Ethernet (PoE)No
Power supply includedY
Quality of Service (QoS) supportY
Quick start guideY
Rack mountingYes
Rate limitingY
Routing entries128
Spanning tree protocolY
SSH/SSL supportY
Static port securityY
Storage relative humidity (H-H)5 - 90 %
Storage temperature (T-T)-40 - 70 °C
Store-and-forwardY
Switch layerL2+
Switch typeManaged
Switching capacity80 Gbit/s
System event logY
VLAN supportY
Web-based managementY
Width440 mm
ARP inspectionY
SFP+ module slots quantity2
AuthenticationMAC-based authentication,Port-based authentication
Multicast listener discovery (MLD) snoopingY
Power connectorAC-in jack
Configuring Location Settings (CLI)Y
Product colourBlack
Policy-based routingY
DHCP featuresDHCP client,DHCP relay,DHCP server,DHCPv6 snooping
Cloud-managedY

tl-sg3210xhp-m2.pdf

TP-LINK JetStream 8-Port 2.5GBASE-T and 2-Port 10GE SFP+ L2+ Managed Switch with 8-Port PoE+ Data Sheet

Download (3.23M)

You might also like

  • CST Armoured Loose Tube Fibre Cable
    CST Armoured Loose Tube Fibre Cable

Similar products

  • TP-LINK 8-Port Gigabit Easy Smart Switch with 4-Port PoE
    TP-LINK 8-Port Gigabit Easy Smart Switch...
  • TP-LINK LS1005
    TP-LINK LS1005
  • TP-LINK LS1005G
    TP-LINK LS1005G
  • TP-LINK LS1008
    TP-LINK LS1008
  • TP-LINK LS1008G
    TP-LINK LS1008G

TP-LINK JetStream 8-Port 2.5GBASE-T and 2-Port 10GE SFP+ L2+ Managed Switch with 8-Port PoE+

8× 100/1000/2500 Mbps RJ45, 2× 10G SFP+ Slots, 80 Gbps, 59.52 Mpps, 16 K MAC, 9 KB Jumbo, RJ45 / Micro-USB Console, 440 × 180 × 44 mm

TL-SG3210XHP-M2

In Stock

£378.14
£315.12 Ex VAT.
