TP-LINK JetStream 48-Port Gigabit L2 Managed Switch with 4 SFP Slots
  • TP-LINK JetStream 48-Port Gigabit L2 Managed Switch with 4 SFP Slots
  • TP-LINK JetStream 48-Port Gigabit L2 Managed Switch with 4 SFP Slots
  • TP-LINK JetStream 48-Port Gigabit L2 Managed Switch with 4 SFP Slots
  • TP-LINK JetStream 48-Port Gigabit L2 Managed Switch with 4 SFP Slots
Convenient Gigabit Switch for a Complete Omada Network JetStream 48-Port Gigabit L2 Managed Switch with 4 SFPReliable Gigabit Connections 48× Gigabit RJ45 Ports and 4× Gigabit SFP Ports Centralized Cloud Management SDN Solutions Integration for a Highly Efficient Network Advanced L2+ Features L2/L3/L4 QoS, ACL, Static Routing and More Abundant Secure Strategies LAN Area Investment ProtectionSoftware Defined Networking (SDN) with Cloud Access Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.Advanced L3 Features An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses and ISPs.Secure Networking Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports or VLAN ID. Users’ network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.Enterprise Level Features A complete lineup of L2+ features are supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency.Advanced QoS Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.ISP Features** QinQ, L2PT, PPPoE ID Insertion, and IGMP authentication features are provided, developed with service providers in mind. Device Link Detection Protocol (DLDP) offers easy monitoring and troubleshooting of Ethernet links.IPv6 Support IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.
10G supportNo
AC input frequency50/60 Hz
AC input voltage100 - 240 V
Basic switching RJ-45 Ethernet ports quantity48
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Broadcast storm controlY
Cables includedAC
CertificationCE, FCC, RoHS
Console portRJ-45/micro-USB
Depth220 mm
Ethernet LAN data rates10,100,1000 Mbit/s
Flow control supportY
Forwarding rate77.4 Mpps
Heat dissipation111.91 BTU/h
Height44 mm
IGMP snoopingY
IP routingY
Jumbo frames supportY
Link aggregationY
MAC address filteringY
MAC address table16000 entries
Multicast supportY
Networking standardsIEEE 802.1D,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 40 °C
Port mirroringY
Power over Ethernet (PoE)No
Quality of Service (QoS) supportY
Quick start guideY
Rack mount kitY
Rack mountingYes
Spanning tree protocolY
Storage relative humidity (H-H)5 - 90 %
Storage temperature (T-T)-40 - 70 °C
Switch layerL2
Switch typeManaged
Switching capacity104 Gbit/s
System event logY
VLAN supportY
Web-based managementY
Width440 mm
SFP module slots quantity4
AuthenticationMAC-based authentication,Port-based authentication
Static routeY
Configuring Location Settings (CLI)Y
Product colourBlack
Policy-based routingY
DHCP featuresDHCP client,DHCP relay,DHCP server,DHCP snooping,DHCPv6 snooping
Cloud-managedY

tl-sg3452.pdf

TP-LINK JetStream 48-Port Gigabit L2 Managed Switch with 4 SFP Slots Data Sheet

Download (4.29M)

You might also like

  • 300mm Deep CCS Wall Mounted Network Cabinets
    300mm Deep CCS Wall Mounted Network Cabinets
  • Cat6a Wide Boots
    Cat6a Wide Boots
  • 24 Port Cat6 UTP CCS Elite Patch Panel
    24 Port Cat6 UTP CCS Elite Patch Panel
  • 515mm Deep Fixed Shelf for 800mm Deep RackyRax Cabinets
    515mm Deep Fixed Shelf for 800mm Deep...
  • 19" Cabinet Cable Dump Panels
    19" Cabinet Cable Dump Panels
  • RJ45 Crimp Tool
    RJ45 Crimp Tool
  • UK Socket / UK Plug Rack PDU
    UK Socket / UK Plug Rack PDU
  • TP-LINK 5-Port 10G Desktop Switch
    TP-LINK 5-Port 10G Desktop Switch
  • 1u 19" Rackmount Cabinet Fan Units
    1u 19" Rackmount Cabinet Fan Units

Similar products

  • TP-LINK 8-Port Gigabit Easy Smart Switch with 4-Port PoE
    TP-LINK 8-Port Gigabit Easy Smart Switch...
  • TP-LINK LS1005
    TP-LINK LS1005
  • TP-LINK LS1005G
    TP-LINK LS1005G
  • TP-LINK LS1008
    TP-LINK LS1008
  • TP-LINK LS1008G
    TP-LINK LS1008G

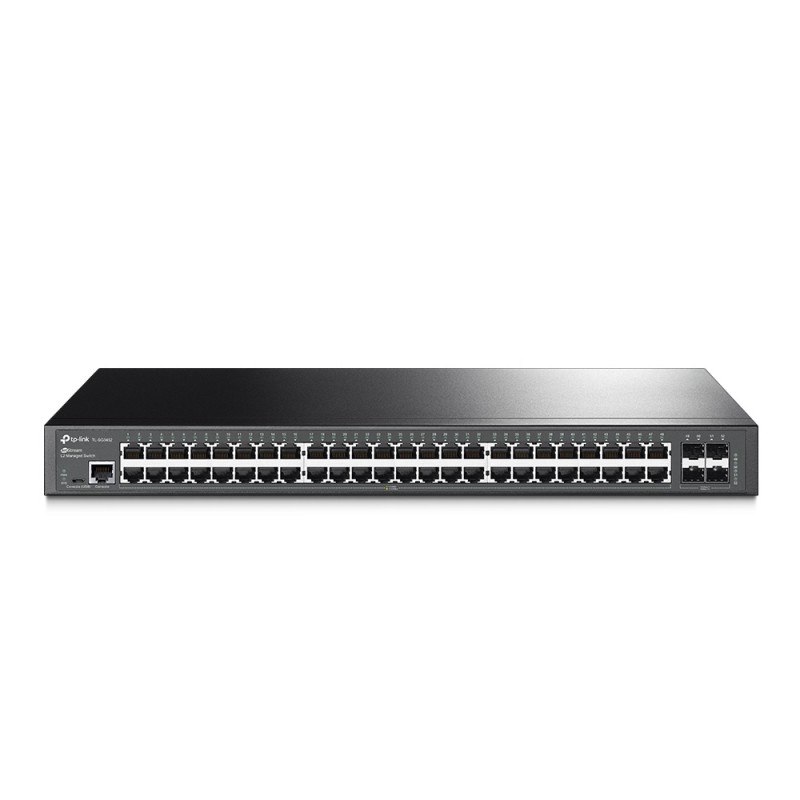

TP-LINK JetStream 48-Port Gigabit L2 Managed Switch with 4 SFP Slots

48× 10/100/1000 Mbps RJ45, 4× Gigabit SFP Slots, RJ45 / Micro-USB Console Ports, 104 Gbps, 77.4 Mpps, MAC 16K, 440×220×44 mm

TL-SG3452

Out of Stock

£340.33
£283.61 Ex VAT.
