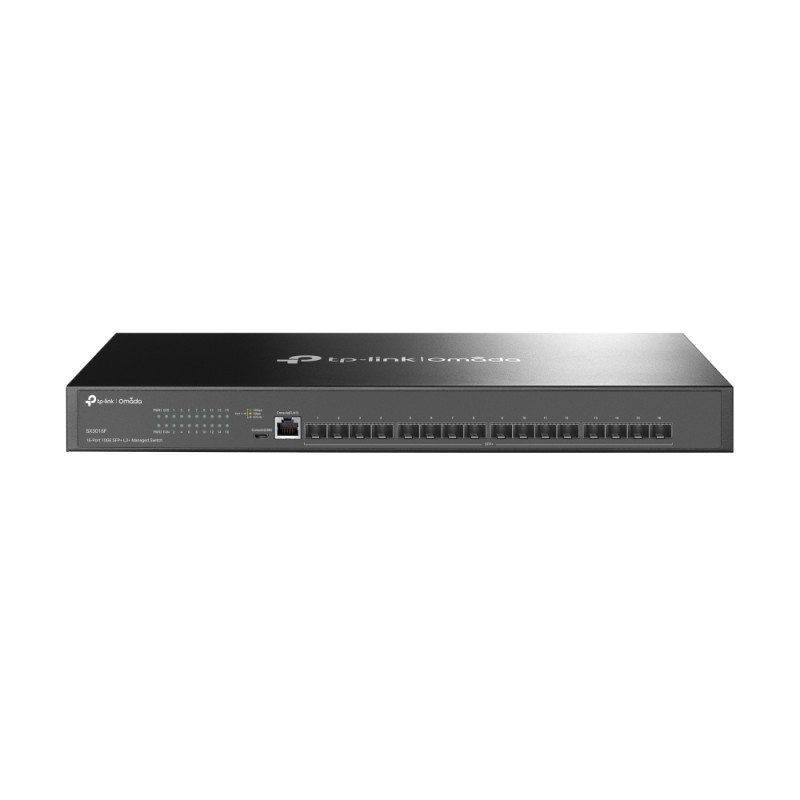

TP-Link Omada 16-Port 10GE SFP+ L2+ Managed Switch
  • TP-Link Omada 16-Port 10GE SFP+ L2+ Managed Switch
  • TP-Link Omada 16-Port 10GE SFP+ L2+ Managed Switch
TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.
10G supportYes
AC input frequency50/60 Hz
AC input voltage100 - 240 V
Access Control List (ACL)Y
Basic switching RJ-45 Ethernet ports typeN
Broadcast storm controlY
Cables includedAC
CertificationCE, FCC, RoHS
Console portRJ-45/micro-USB
Depth220 mm
Flow control supportY
Forwarding rate238.08 Mpps
Head-of-line (HOL) blockingY
Heat dissipation111.71 BTU/h
Height44 mm
IGMP snoopingY
IP routingY
Jumbo frames supportY
LED indicatorsY
Link aggregationY
MAC address filteringY
MAC address table32000 entries
Management protocolsSNMPv1/v2c/v3, SNTP
ManualY
MIB supportRFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213
Multicast supportY
Networking standardsIEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ad,IEEE 802.3x
Number of queues8
Number of VLANs4000
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 45 °C
Package typebox
Packet buffer memory24 MB
Port mirroringY
Power consumption (max)32.74 W
Power over Ethernet (PoE)No
Power sourceAC
Power supply includedY
Quality of Service (QoS) supportY
Quick start guideY
Rack mount kitY
Rack mountingYes
Rate limitingY
Security algorithmsHTTPS,SSH,SSH-2,SSL/TLS
Spanning tree protocolY
SSH/SSL supportY
Static port securityY
Storage relative humidity (H-H)5 - 90 %
Storage temperature (T-T)-40 - 70 °C
Switch layerL2+/L3
Switch typeManaged
Switching capacity320 Gbit/s
System event logY
VLAN supportY
Web-based managementY
Width440 mm
ARP inspectionY
Jumbo frames9000
IP-MAC-Port bindingY
SFP+ module slots quantity16
BPDU filtering/protectionY
Loop protectionY
AuthenticationGuest VLAN,MAC-based authentication,Port-based authentication,Web-based authentication
Traffic classificationY
Multicast listener discovery (MLD) snoopingY
Static routeY
Power connectorDC-in jack
Authentication typeAAA,TACACS+
Configuring Location Settings (CLI)Y
Queue scheduling algorithmsSP,WRR+SP,Weighted Round Robin (WRR)
Product colourBlack
Virtual LAN featuresPrivate VLAN,Protocol-based VLAN,Tagged VLAN,Voice VLAN
IPv4 & IPv6 featuresIPv6 Telnet,IPv6 ping,IPv6 tracert
DHCP featuresDHCP relay,DHCP server,DHCP snooping,DHCPv6 client,DHCPv6 snooping
Cloud-managedY

sx3016f.pdf

TP-Link Omada 16-Port 10GE SFP+ L2+ Managed Switch Data Sheet

Download (13.02M)

Similar products

  • TP-LINK 8-Port Gigabit Easy Smart Switch with 4-Port PoE
    TP-LINK 8-Port Gigabit Easy Smart Switch...
  • TP-LINK LS1005
    TP-LINK LS1005
  • TP-LINK LS1005G
    TP-LINK LS1005G
  • TP-LINK LS1008
    TP-LINK LS1008
  • TP-LINK LS1008G
    TP-LINK LS1008G

TP-Link Omada 16-Port 10GE SFP+ L2+ Managed Switch

16× 10G SFP+ Slots, 1× RJ45 Console, 1× Micro-USB Console, 320 Gbps, 32 K MAC, 9 KB Jumbo, 440×220×44 mm

sx3016f

In Stock

£525.00
£437.50 Ex VAT.
