TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.
| 10G support | Yes |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Access Control List (ACL) | Y |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Broadcast storm control | Y |
| Cables included | AC |
| Console port | RJ-45/micro-USB |
| Depth | 330 mm |
| Ethernet LAN data rates | 10,100,1000,2500,10000 Mbit/s |
| Flash memory | 32 MB |
| Flow control support | Y |
| Form factor | 1U |
| Forwarding rate | 148.8 Mpps |
| Full duplex | Y |
| Head-of-line (HOL) blocking | Y |
| Heat dissipation | 2153.45 BTU/h |
| Height | 44 mm |
| IGMP snooping | Y |
| Internal memory | 256 MB |
| Jumbo frames support | Y |
| LED indicators | Y |
| Link aggregation | Y |
| MAC address table | 32000 entries |
| Management protocols | SNMP v1/v2c/v3 |
| Memory type | DRAM |
| MIB support | RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925 |
| Multicast support | Y |
| Networking standards | IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt,IEEE 802.3bz,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
| Number of fans | 3 fan(s) |
| Number of IP interfaces | 32 |
| Number of queues | 8 |
| Number of static routes | 48 |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Packet buffer memory | 16 MB |
| Password protection | Y |
| Port mirroring | Y |
| Power consumption (max) | 629.1 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Power source | AC/PoE |
| Power supply included | Y |
| Quality of Service (QoS) support | Y |
| Quick start guide | Y |
| Rack mount kit | Y |
| Rack mounting | Yes |
| Rate limiting | Y |
| Redundant fans support | Y |
| Redundant power supply (RPS) support | Y |
| Security algorithms | HTTPS,SSH,SSH-2,SSL/TLS |
| Spanning tree protocol | Y |
| SSH/SSL support | Y |
| Static port security | Y |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Store-and-forward | Y |
| Switch layer | L2+ |
| Switch type | Managed |
| Switching capacity | 200 Gbit/s |
| System event log | Y |
| Total Power over Ethernet (PoE) budget | 500 W |
| VLAN support | Y |
| Web-based management | Y |
| Width | 440 mm |
| ARP inspection | Y |
| Jumbo frames | 9000 |
| IP-MAC-Port binding | Y |
| SFP+ module slots quantity | 4 |
| BPDU filtering/protection | Y |
| Loop protection | Y |
| Authentication | Guest VLAN,MAC-based authentication,Port-based authentication |
| Multicast listener discovery (MLD) snooping | MLD v1/v2 |
| Static route | Y |
| GARP VLAN Registration Protocol (GVRP) | Y |
| Authentication type | AAA,IEEE 802.1x,RADIUS,TACACS+ |
| Configuring Location Settings (CLI) | Y |
| Queue scheduling algorithms | SP,WRR+SP,Weighted Round Robin (WRR) |
| Product colour | Black |
| Virtual LAN features | MAC address-based VLAN,Port-based VLAN,Protocol-based VLAN,Stacked VLAN,Tagged VLAN,Voice VLAN |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL),IPv6 ping,IPv6 portal,IPv6 tracert |
| DHCP features | DHCP client,DHCP relay,DHCP server,DHCP snooping,DHCPv6 client,DHCPv6 snooping |
| Half duplex | Y |
| Cloud-managed | Y |
| Sustainability compliance | Y |
| IPv4 routes | 48 |
| IPv6 routes | 48 |
| 2.5G Ethernet (copper) ports quantity | 24 |
| Compliance certificates | CE,Federal Communications Commission (FCC),RoHS |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 8 |
sg3428xpp-m2.pdf
TP-Link Omada 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++ Data Sheet
Download (13.02M)Similar products
-
TP-LINK 8-Port Gigabit Easy Smart Switch...
-
TP-LINK LS1005
-
TP-LINK LS1005G
-
TP-LINK LS1008
-
TP-LINK LS1008G

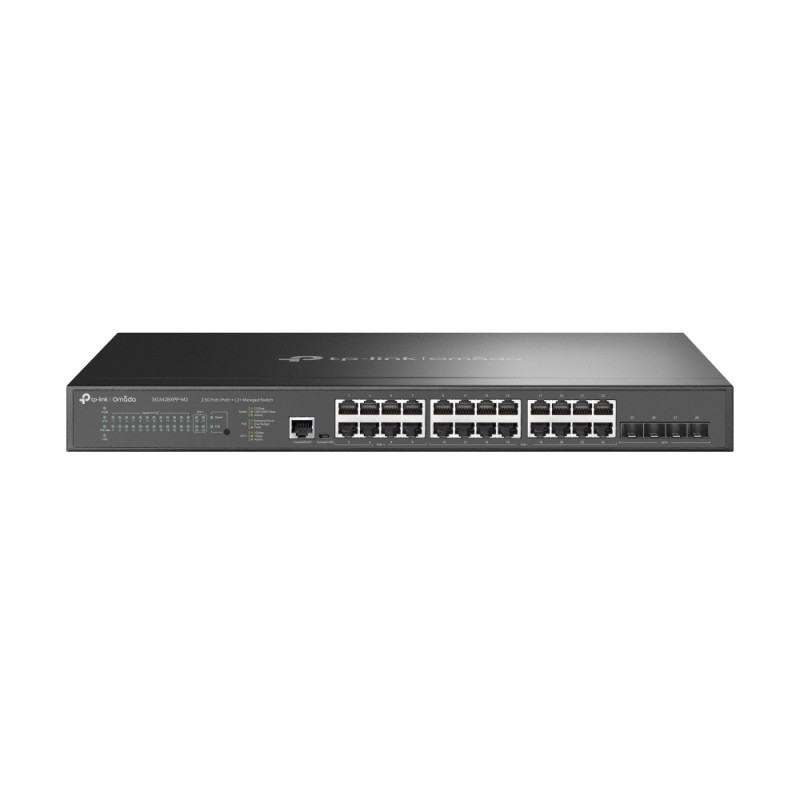

TP-Link Omada 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++
8× 2.5 Gbps RJ45 PoE++, 16× 2.5 Gbps RJ45 PoE+, 4× 10G SFP+ Slots, RJ45/Micro-USB, 200 Gbps, 32 K MAC, 9 KB Jumbo, 440×330×44 mm
sg3428xpp-m2
Out of Stock
£734.69
£612.24 Ex VAT.
