10G support | Yes |
AC input frequency | 50/60 Hz |
AC input voltage | 100 - 240 V |
Access Control List (ACL) | Y |
Basic switching RJ-45 Ethernet ports quantity | 24 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Broadcast storm control | Y |
Cables included | LAN (RJ-45) |
Console port | RJ-45/micro-USB |
Depth | 180 mm |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Flow control support | Y |
Form factor | 1U |
Forwarding rate | 95.23 Mpps |
Gigabit Ethernet (copper) ports quantity | 24 |
Head-of-line (HOL) blocking | Y |
Heat dissipation | 80.52 BTU/h |
Height | 44 mm |
IGMP snooping | Y |
Jumbo frames support | Y |
LED indicators | Y |
Link aggregation | Y |
MAC address table | 16000 entries |
Management protocols | SNMPv1/v2c/v3, SNTP |
MIB support | Yes |
Multicast support | Y |
Networking standards | IEEE 802.3ab,IEEE 802.3ae,IEEE 802.3i,IEEE 802.3u,IEEE 802.3z |
Number of static routes | 48 |
Number of VLANs | 4000 |
Operating relative humidity (H-H) | 10 - 90 % |
Operating temperature (T-T) | 0 - 45 °C |
Packet buffer memory | 12 MB |
Port mirroring | Y |
Power consumption (max) | 23.6 W |
Power over Ethernet (PoE) | No |
Power source | AC |
Power supply included | Y |
Quality of Service (QoS) support | Y |
Quick start guide | Y |
Rack mounting | Yes |
Rate limiting | Y |
Spanning tree protocol | Y |
SSH/SSL support | Y |
Storage relative humidity (H-H) | 5 - 90 % |
Storage temperature (T-T) | -40 - 70 °C |
Store-and-forward | Y |
Switch layer | L2+/L3 |
Switch type | Managed |
Switching capacity | 128 Gbit/s |
System event log | Y |
VLAN support | Y |
Web-based management | Y |
Width | 440 mm |
ARP inspection | Y |
Jumbo frames | 9000 |
IP-MAC-Port binding | Y |
SFP+ module slots quantity | 4 |
BPDU filtering/protection | Y |
Loop protection | Y |
Authentication | Guest VLAN,MAC-based authentication,Port-based authentication |
Active link detection | Y |
Multicast listener discovery (MLD) snooping | Y |
Static route | Y |
Power connector | AC-in jack |
GARP VLAN Registration Protocol (GVRP) | Y |
Authentication type | AAA,RADIUS,TACACS+ |
Configuring Location Settings (CLI) | Y |
Product colour | Black |
Policy-based routing | Y |
Virtual LAN features | Private VLAN,Protocol-based VLAN,Tagged VLAN,Voice VLAN |
IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL),IPv6 Telnet,IPv6 ping,IPv6 tracert |
DHCP features | DHCP client,DHCP relay,DHCP server,DHCP snooping,DHCPv6 client,DHCPv6 snooping |
Fanless | Y |
Cloud-managed | Y |
IPv4 routes | 48 |
IPv6 routes | 48 |

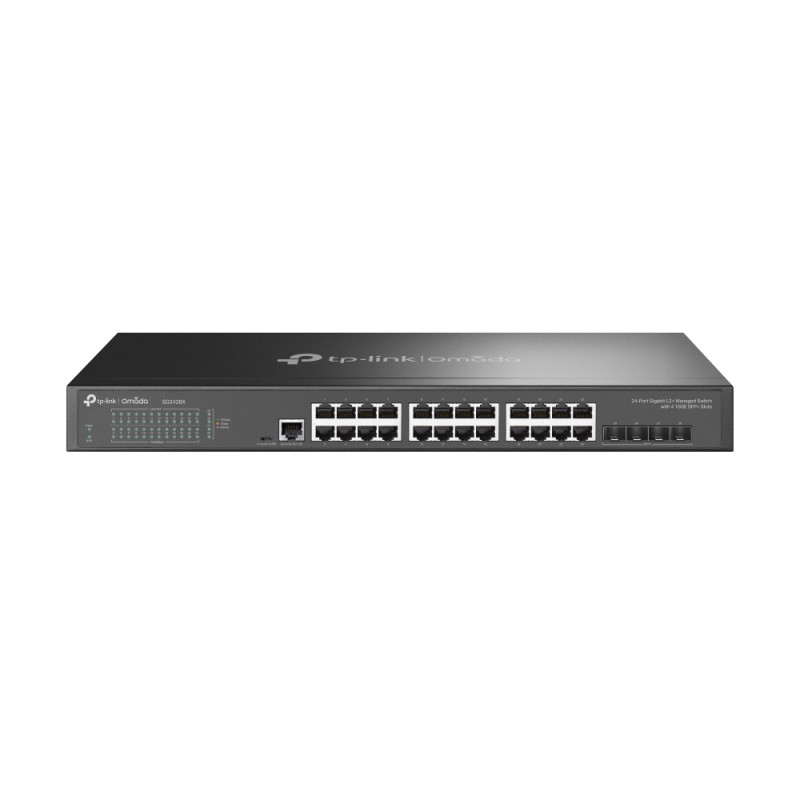

TP-Link Omada 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots Data Sheet
Download (13.02M)24× 10/100/1000 Mbps RJ45, 4× 10G SFP+, 1× RJ45 Console Port, 1× Micro-USB, 128 Gbps, 95.23 Mpps, 16 K MAC, Jumbo Frame 9 KB, 440 × 180 × 44 mm
sg3428x
