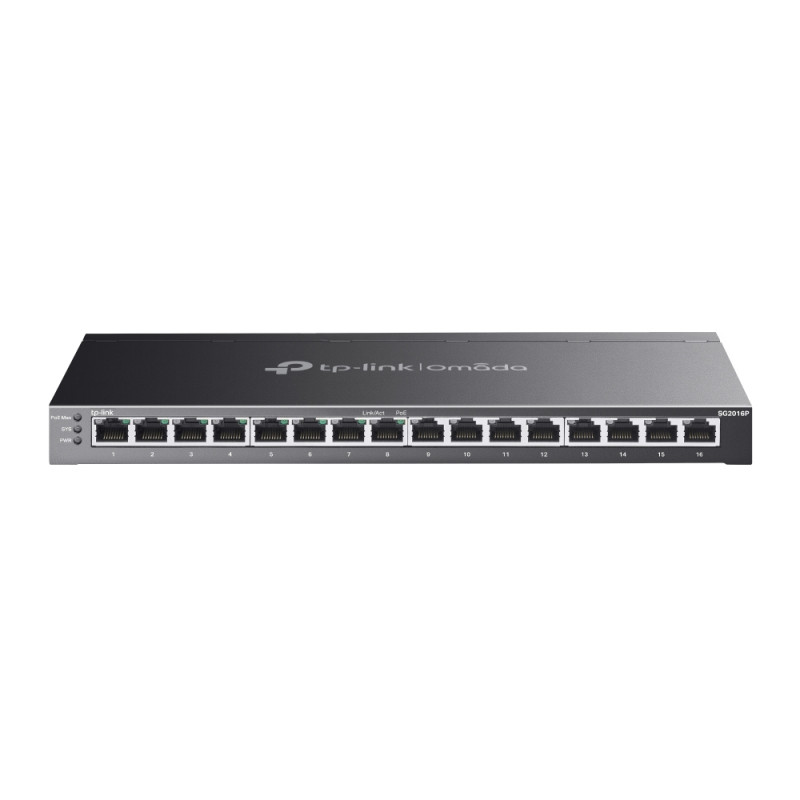

TP-Link Omada 16-Port Gigabit Smart Switch with 8-Port PoE+
  • TP-Link Omada 16-Port Gigabit Smart Switch with 8-Port PoE+
  • TP-Link Omada 16-Port Gigabit Smart Switch with 8-Port PoE+
  • TP-Link Omada 16-Port Gigabit Smart Switch with 8-Port PoE+
  • TP-Link Omada 16-Port Gigabit Smart Switch with 8-Port PoE+
  • TP-Link Omada 16-Port Gigabit Smart Switch with 8-Port PoE+
  • TP-Link Omada 16-Port Gigabit Smart Switch with 8-Port PoE+
TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.
10G supportNo
Access Control List (ACL)Y
Auto MDI/MDI-XY
Auto-negotiationY
Basic switching RJ-45 Ethernet ports quantity16
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Broadcast storm controlY
Cables includedAC
CertificationCE, FCC, RoHS
Copper ethernet cabling technology10BASE-T,100BASE-TX,1000BASE-T
DC input voltage53.5 V
Depth111.7 mm
Ethernet LAN data rates10,100,1000 Mbit/s
Firmware upgradeableY
Flow control supportY
Forwarding rate23.81 Mpps
Heat dissipation499.98 BTU/h
Height25.4 mm
IGMP snoopingY
Jumbo frames supportY
LED indicatorsPoE,Power,System
Link aggregationY
MAC address filteringY
MAC address table8000 entries
ManualY
MIB supportRFC1213, RFC1493, RFC2674, RFC2620, RFC2618, RFC2925, RFC1757
Multicast supportY
Networking standardsIEEE 802.11w,IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1x,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3i,IEEE 802.3x
Number of queues8
Number of VLANs4000
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 40 °C
Packet buffer memory4.1 MB
Port mirroringY
Power consumption (max)146.5 W
Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity8
Power sourceDC/PoE
Quality of Service (QoS) supportY
Rack mountingYes
Rate limitingY
Security algorithmsEAP-MD5,HTTPS,SNMP,SNMPv2,SNMPv3,SSH,SSL/TLS
Spanning tree protocolY
SSH/SSL supportY
Storage relative humidity (H-H)5 - 90 %
Storage temperature (T-T)-40 - 70 °C
Supported network protocolsICMP, TCPv6, UDPv6, Ping6, Tracert6, Telnet (v6), TFTP, TCP/UDP, DSCP/IP, SSLv3, TLS 1.2
Switch layerL2/L2+
Switch typeManaged
Switching capacity32 Gbit/s
System event logY
Total Power over Ethernet (PoE) budget120 W
VLAN supportY
Web-based managementY
Width286 mm
ARP inspectionY
Jumbo frames9000
IP-MAC-Port bindingY
BPDU filtering/protectionY
AuthenticationGuest VLAN,MAC-based authentication,Port-based authentication
Multicast listener discovery (MLD) snoopingMLD v1, MLD v2
Power connectorDC-in jack
GARP VLAN Registration Protocol (GVRP)Y
Configuring Location Settings (CLI)Y
Queue scheduling algorithmsSP,Weighted Round Robin (WRR)
Product colourBlack
Virtual LAN featuresMulticast VLAN,Tagged VLAN,Voice VLAN
IPv4 & IPv6 featuresDual stack IPv4/IPv6
DHCP featuresDHCP relay,DHCP snooping,DHCPv6 client,DHCPv6 snooping
FanlessY
Cloud-managedY
MAC address entriesDynamic MAC address entries,Static MAC address entries

sg2016p.pdf

TP-Link Omada 16-Port Gigabit Smart Switch with 8-Port PoE+ Data Sheet

Download (23.29M)

Similar products

  • TP-LINK 8-Port Gigabit Easy Smart Switch with 4-Port PoE
    TP-LINK 8-Port Gigabit Easy Smart Switch...
  • TP-LINK LS1005
    TP-LINK LS1005
  • TP-LINK LS1005G
    TP-LINK LS1005G
  • TP-LINK LS1008
    TP-LINK LS1008
  • TP-LINK LS1008G
    TP-LINK LS1008G

TP-Link Omada 16-Port Gigabit Smart Switch with 8-Port PoE+

16× 10/100/1000 Mbps RJ45 PoE+, 32 Gbps, 8K MAC, 9 KB Jumbo, 286×111.7×25.4 mm

sg2016p

In Stock

£179.69
£149.74 Ex VAT.
