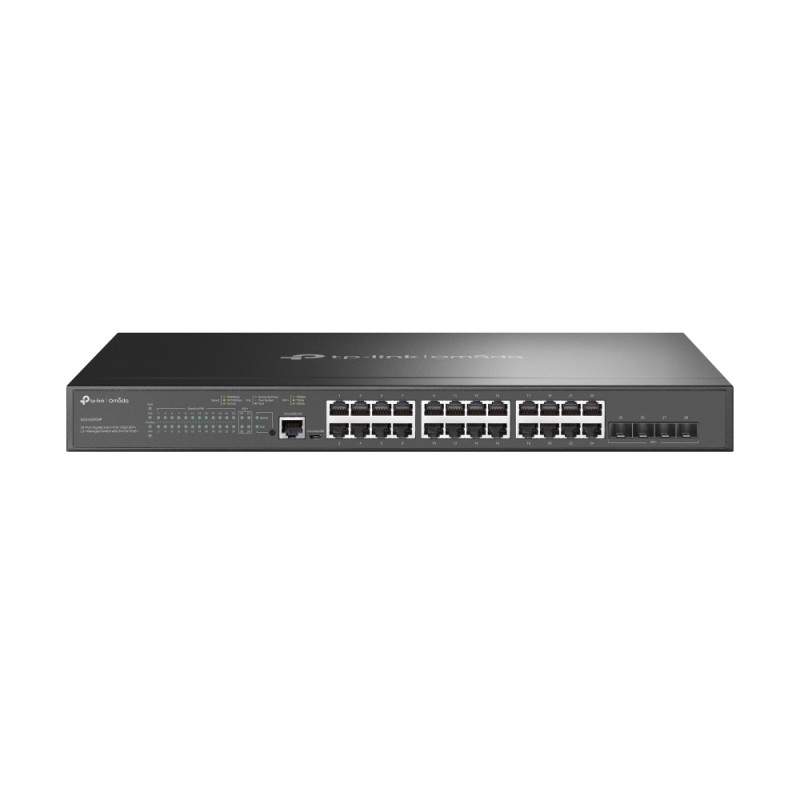

TP-Link Omada 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 24-Port PoE+
  • TP-Link Omada 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 24-Port PoE+
  • TP-Link Omada 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 24-Port PoE+
TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.
10G supportY
AC input frequency50/60 Hz
AC input voltage100 - 240 V
Access Control List (ACL)Y
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Broadcast storm controlY
Cables includedLAN (RJ-45)
Console portRJ-45/micro-USB
Depth330 mm
Ethernet LAN data rates10,100,1000 Mbit/s
Flow control supportY
Form factor1U
Forwarding rate95.23 Mpps
Gigabit Ethernet (copper) ports quantity24
Head-of-line (HOL) blockingY
Heat dissipation1658.78 BTU/h
Height44 mm
IGMP snoopingY
Jumbo frames supportY
LED indicatorsY
Link aggregationY
MAC address table16000 entries
Management protocolsSNMPv1/v2c/v3, SNTP
MIB supportYes
Multicast supportY
Networking standardsIEEE 802.11d,IEEE 802.1s,IEEE 802.1w
Number of fans2 fan(s)
Number of static routes48
Number of VLANs4000
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 45 °C
Packet buffer memory12 MB
Port mirroringY
Power consumption (max)486.2 W
Power over Ethernet (PoE)Y
Power over Ethernet plus (PoE+) ports quantity24
Power sourceAC
Power supply includedY
Quality of Service (QoS) supportY
Quick start guideY
Rack mountingY
Rate limitingY
Spanning tree protocolY
SSH/SSL supportY
Storage relative humidity (H-H)5 - 90 %
Storage temperature (T-T)-40 - 70 °C
Switch layerL2+
Switch typeManaged
Switching capacity128 Gbit/s
System event logY
Total Power over Ethernet (PoE) budget384 W
VLAN supportY
Web-based managementY
Width440 mm
Jumbo frames9000
IP-MAC-Port bindingY
SFP+ module slots quantity4
BPDU filtering/protectionY
Loop protectionY
Active link detectionY
Power connectorAC-in jack
Product colourBlack
Policy-based routingY
Virtual LAN featuresMAC address-based VLAN,Port-based VLAN,Private VLAN,Protocol-based VLAN,Tagged VLAN,Voice VLAN
DHCP featuresDHCP client,DHCP relay,DHCP server,DHCP snooping,DHCPv6 client,DHCPv6 snooping
Cloud-managedY

sg3428xmp.pdf

TP-Link Omada 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 24-Port PoE+ Data Sheet

Download (13.02M)

Similar products

  • TP-LINK 8-Port Gigabit Easy Smart Switch with 4-Port PoE
    TP-LINK 8-Port Gigabit Easy Smart Switch...
  • TP-LINK LS1005
    TP-LINK LS1005
  • TP-LINK LS1005G
    TP-LINK LS1005G
  • TP-LINK LS1008
    TP-LINK LS1008
  • TP-LINK LS1008G
    TP-LINK LS1008G

TP-Link Omada 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 24-Port PoE+

24× 10/100/1000 Mbps RJ45 PoE+, 4× 10G SFP+ Slots, RJ45/Micro-USB, 128 Gbps, 16 K MAC, 9 KB Jumbo, 440×330×44 mm

sg3428xmp

Out of Stock

£495.00
£412.50 Ex VAT.
