Categories

More Info
Details
Spec Sheet

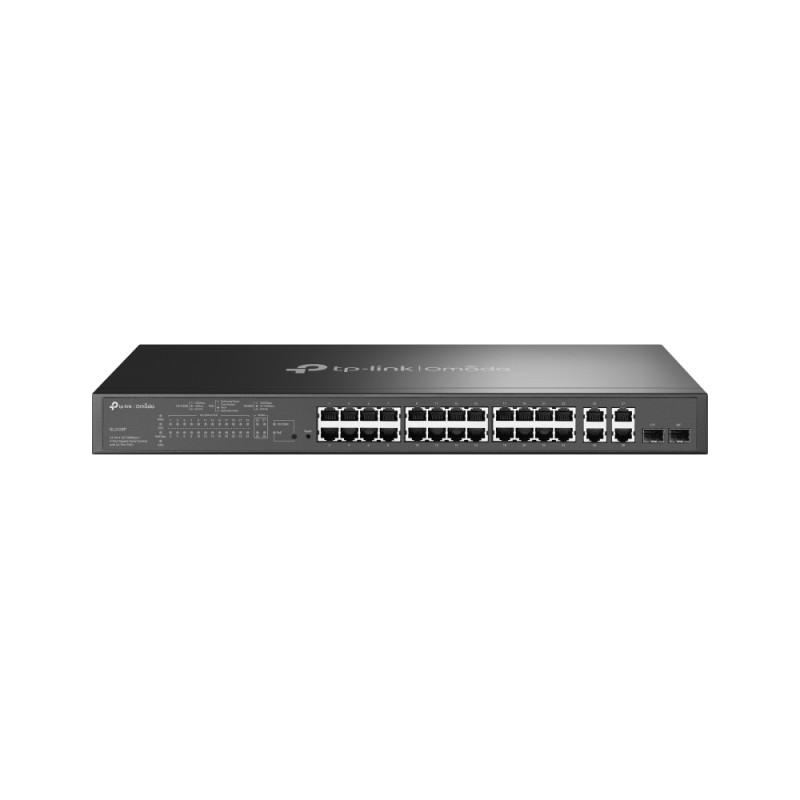

TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.

10G support	No
AC input frequency	50/60 Hz
AC input voltage	100 - 240 V
Access Control List (ACL)	Y
Auto MDI/MDI-X	Y
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Broadcast storm control	Y
Cable types supported	Cat5,Cat5e
Cables included	AC
Certification	CE, FCC, RoHS
Combo SFP ports quantity	2
Compatible operating systems	Microsoft Windows XP, Vista, Windows 7, Windows 8, MAC OS, NetWare, UNIX, Linux
Copper ethernet cabling technology	10BASE-T,100BASE-TX,1000BASE-T
Depth	180 mm
Fast Ethernet (copper) ports quantity	24
Firmware upgradeable	Y
Flow control support	Y
Form factor	1U
Gigabit Ethernet (copper) ports quantity	4
Heat dissipation	995.09 BTU/h
Height	44 mm
IGMP snooping	Y
Jumbo frames support	Y
Link aggregation	Y
MAC address table	8000 entries
Management protocols	SNMP v1/v2c/v3, RMON, SNTP, TFTP
Multicast support	Y
Networking standards	IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x
Number of fans	2 fan(s)
Number of queues	4
Number of VLANs	512
Operating relative humidity (H-H)	10 - 90 %
Operating temperature (T-T)	0 - 40 °C
Packet buffer memory	4.1 MB
Port mirroring	Y
Power consumption (max)	291.6 W
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	24
Power source	AC
Quality of Service (QoS) support	Y
Quick start guide	Y
Rack mount kit	Y
Rack mounting	Yes
Rate limiting	Y
Security algorithms	SNMPv2,SNMPv3,SSH,SSH-2,SSL/TLS
Spanning tree protocol	Y
SSH/SSL support	Y
Storage relative humidity (H-H)	5 - 90 %
Storage temperature (T-T)	-40 - 70 °C
Switch layer	L2
Switch type	Managed
Switching capacity	12.8 Gbit/s
System event log	Y
Throughput	9.5 mpps
Total Power over Ethernet (PoE) budget	250 W
VLAN support	Y
Web-based management	Y
Width	440 mm
ARP inspection	Y
Jumbo frames	9000
Configuring Location Settings (CLI)	Y
Product colour	Black
