10G support | No |
AC input frequency | 50/60 Hz |
AC input voltage | 100 - 240 V |
Basic switching RJ-45 Ethernet ports quantity | 16 |
Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
Cable types supported | Cat3,Cat4,Cat5,Cat5e,Cat6 |
Cables included | AC |
Certification | CE, FCC, RoHS |
Combo SFP ports quantity | 1 |
Depth | 180 mm |
Flow control support | Y |
Forwarding rate | 5.36 Mpps |
Gigabit Ethernet (copper) ports quantity | 2 |
Heat dissipation | 589.25 BTU/h |
Height | 44 mm |
Housing material | Metal |
Jumbo frames support | Y |
LED indicators | Y |
MAC address table | 8000 entries |
Networking standards | IEEE 802.3af,IEEE 802.3at,IEEE 802.3x |
Number of fans | 2 fan(s) |
Operating relative humidity (H-H) | 10 - 90 % |
Operating temperature (T-T) | 0 - 50 °C |
Power consumption (max) | 172.8 W |
Power over Ethernet (PoE) | Yes |
Power over Ethernet (PoE) ports quantity | 16 |
Quick start guide | Y |
Rack mounting | Yes |
Storage relative humidity (H-H) | 5 - 90 % |
Storage temperature (T-T) | -40 - 70 °C |
Store-and-forward | Y |
Switching capacity | 7.2 Gbit/s |
Total Power over Ethernet (PoE) budget | 150 W |
Width | 440 mm |
Jumbo frames | 10000 |
MAC address auto-learning supported | Y |
MAC address auto-aging supported | Y |
Product colour | Black |
7.2 Gbps, 5.36 Mpps, 16x 10/100 Mbps RJ-45, 2x 1G RJ-45, 1x Combo SFP, 440x180x44 mm

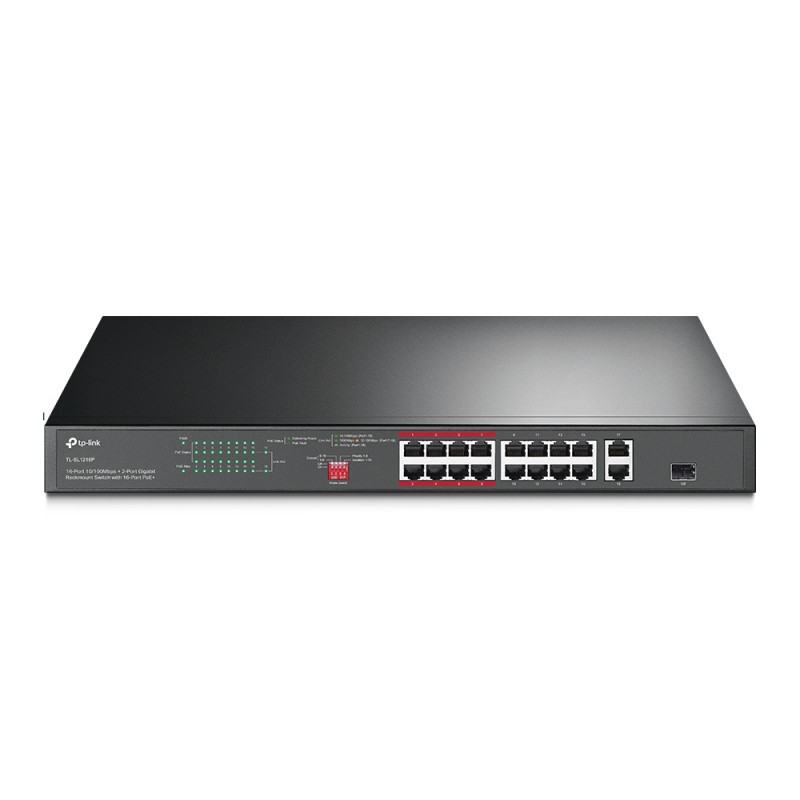

TL-SL1218P
In Stock
