Power over Ethernet, Flexible Network Deployment
Easily Build a Whole 10G Multi-gigabit Network
Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
Easily Build a Whole 10G Multi-gigabit Network
Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
| 10G support | No |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Auto MDI/MDI-X | Y |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Depth | 330 mm |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Flow control support | Y |
| Form factor | 1U |
| Forwarding rate | 77.37 Mpps |
| Heat dissipation | 1035.4 BTU/h |
| Height | 44 mm |
| IGMP snooping | Y |
| IP routing | Y |
| Jumbo frames support | Y |
| LED indicators | Y |
| Link aggregation | Y |
| MAC address filtering | Y |
| MAC address table | 16000 entries |
| MIB support | Y |
| Networking standards | IEEE 802.1Q,IEEE 802.1p,IEEE 802.3ab,IEEE 802.3x |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Port mirroring | Y |
| Power consumption (max) | 304.5 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 32 |
| Power source | AC |
| Power supply included | Y |
| Quality of Service (QoS) support | Y |
| Rack mounting | Yes |
| Security algorithms | SNMP,SNMPv2,SNMPv3 |
| SSH/SSL support | Y |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Switch layer | L2/L2+ |
| Switch type | Managed |
| Switching capacity | 104 Gbit/s |
| System event log | Y |
| Total Power over Ethernet (PoE) budget | 230 W |
| VLAN support | Y |
| Web-based management | Y |
| Width | 440 mm |
| ARP inspection | Y |
| Jumbo frames | 9000 |
| SFP module slots quantity | 4 |
| Loop protection | Y |
| Power over Ethernet (PoE) power per port | 30 W |
| Active link detection | Y |
| Static route | Y |
| Power connector | AC-in jack |
| Authentication type | RADIUS |
| Configuring Location Settings (CLI) | Y |
| Product colour | Black |
| DHCP features | DHCP relay,DHCP server |
| Cloud-managed | Y |
sg2452lp.pdf
TP-Link Omada 52-Port Gigabit Smart Switch with 32-Port PoE+ Data Sheet
Download (633.61k)Similar products
-
TP-LINK 8-Port Gigabit Easy Smart Switch...
-
TP-LINK LS1005
-
TP-LINK LS1005G
-
TP-LINK LS1008
-
TP-LINK LS1008G

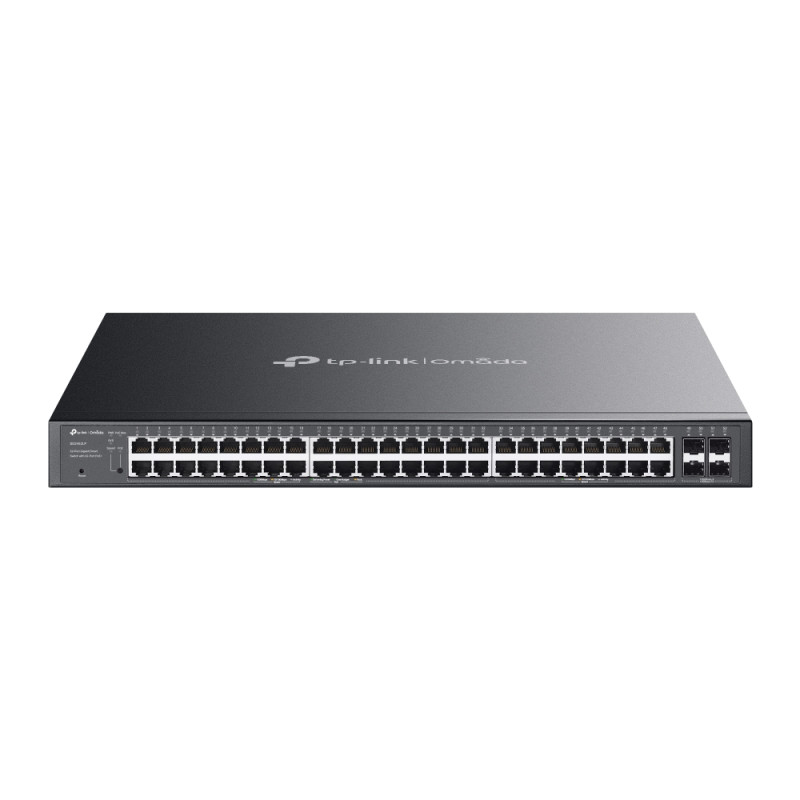

TP-Link Omada 52-Port Gigabit Smart Switch with 32-Port PoE+
32× 10/100/1000 Mbps PoE+ RJ45, 16× 10/100/1000 Mbps non-PoE RJ45, 4× Gigabit SFP, 104 Gbps, 16 K MAC, 9 KB Jumbo, 440x330x44 mm
sg2452lp
In Stock
£525.00
£437.50 Ex VAT.
