TP-LINK TL-SF1006P
  • TP-LINK TL-SF1006P
  • TP-LINK TL-SF1006P
  • TP-LINK TL-SF1006P
  • TP-LINK TL-SF1006P
  • TP-LINK TL-SF1006P
  • TP-LINK TL-SF1006P
  • TP-LINK TL-SF1006P
  • TP-LINK TL-SF1006P
  • TP-LINK TL-SF1006P
Professional High-Power Switch with 4 PoE+ Ports

Plug and Play, with PoE Transmission for Surveillance up to 250 m



Dedicated 4-Poart PoE+ Switch (67 W Budget) for Numerous Applications

Compliance with the 802.3af/at PoE standard supports up to 15.4 W on each PoE port. The total 41 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.



Ideal for IP Surveillance—Up to 250 m Transmissions

With extend mode, the PoE transmission distance reaches up to 250 m**—perfect for IP Camera deployment in large areas.

**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.



Priority Video Quality Guaranteed

Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on.



Intelligent Power Management

When total power consumption exceeds 67 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.



Durable Metal Casing

The interior components of TL-SF1006P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1006P delivers switching performance you can depend on.
Auto MDI/MDI-XY
Auto-negotiationY
Basic switching RJ-45 Ethernet ports quantity6
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Cable types supportedCat3,Cat4,Cat5,Cat5e
CertificationFCC, CE, RoHS
DC input voltage53.5 V
Depth101 mm
Heat dissipation252.34 BTU/h
Height25 mm
Housing materialMetal
Input current1.31 A
MAC address table2000 entries
Networking standardsIEEE 802.3af,IEEE 802.3at
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 40 °C
Power consumption (max)74 W
Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity4
Power supply includedY
Rack mountingNo
StackableNo
Storage relative humidity (H-H)5 - 90 %
Storage temperature (T-T)-40 - 70 °C
Store-and-forwardY
Switching capacity1.2 Gbit/s
Width158 mm
MAC address auto-learning supportedY
MAC address auto-aging supportedY
Product colourBlack
FanlessY

You might also like

  • Cat6 RJ45 Patch Cables
    Cat6 RJ45 Patch Cables
  • TP-LINK JetStream 24-Port Gigabit L2 Managed Switch with 4 SFP Slots
    TP-LINK JetStream 24-Port Gigabit L2...
  • Cat5e RJ45 Patch Cables
    Cat5e RJ45 Patch Cables

Similar products

  • TP-LINK 8-Port Gigabit Easy Smart Switch with 4-Port PoE
    TP-LINK 8-Port Gigabit Easy Smart Switch...
  • TP-LINK LS1005
    TP-LINK LS1005
  • TP-LINK LS1005G
    TP-LINK LS1005G
  • TP-LINK LS1008
    TP-LINK LS1008
  • TP-LINK LS1008G
    TP-LINK LS1008G

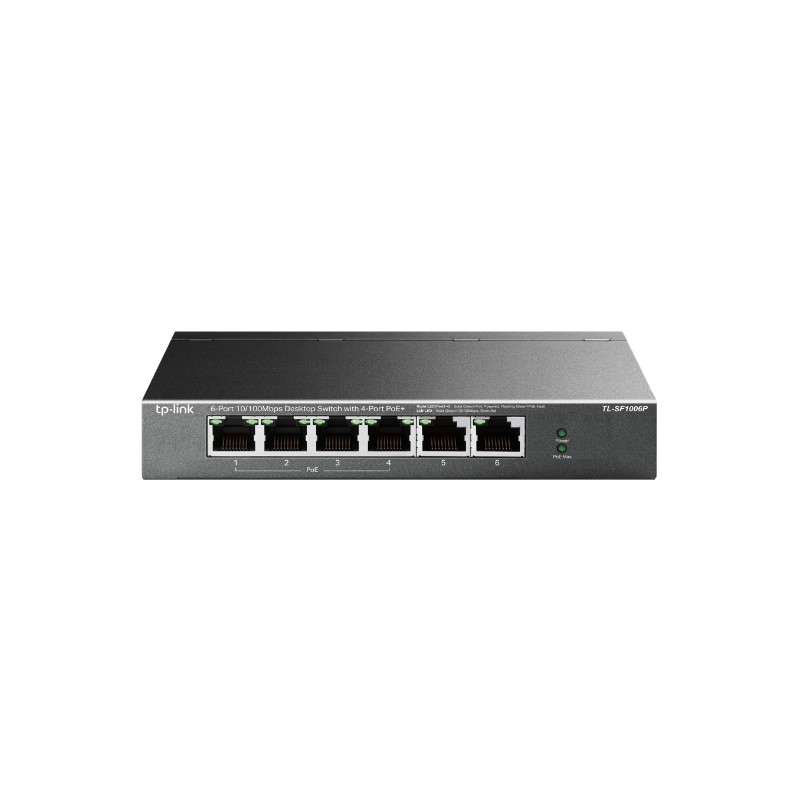

TP-LINK TL-SF1006P

6-Port 10/100Mbps Desktop Switch with 4-Port PoE+

TL-SF1006P

In Stock

£46.28
£38.57 Ex VAT.
