10G support | Yes |
AC input frequency | 50/60 Hz |
AC input voltage | 220 V |
Access Control List (ACL) | Y |
Basic switching RJ-45 Ethernet ports type | N |
Broadcast storm control | Y |
Cables included | AC |
Certification | CE, FCC, RoHS |
Console port | RJ-45/micro-USB |
Depth | 180 mm |
Flow control support | Y |
Forwarding rate | 119.04 Mpps |
Head-of-line (HOL) blocking | Y |
Heat dissipation | 52.75 BTU/h |
Height | 44 mm |
IGMP snooping | Y |
IP routing | Y |
Jumbo frames support | Y |
LED indicators | Y |
Link aggregation | Y |
MAC address filtering | Y |
MAC address table | 32000 entries |
Management protocols | SNMPv1/v2c/v3, SNTP |
Manual | Y |
MIB support | RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213 |
Multicast support | Y |
Networking standards | IEEE 802.1D,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.3ad,IEEE 802.3x |
Number of queues | 8 |
Number of VLANs | 4000 |
Operating relative humidity (H-H) | 10 - 90 % |
Operating temperature (T-T) | 0 - 45 °C |
Package type | box |
Packet buffer memory | 16 MB |
Port mirroring | Y |
Power consumption (max) | 15.46 W |
Power over Ethernet (PoE) | No |
Power source | AC |
Power supply included | Y |
Quality of Service (QoS) support | Y |
Quick start guide | Y |
Rack mount kit | Y |
Rack mounting | Yes |
Rate limiting | Y |
Security algorithms | HTTPS,SSH,SSH-2,SSL/TLS |
Spanning tree protocol | Y |
SSH/SSL support | Y |
Static port security | Y |
Storage relative humidity (H-H) | 5 - 90 % |
Storage temperature (T-T) | -40 - 70 °C |
Switch layer | L2/L3 |
Switch type | Managed |
Switching capacity | 160 Gbit/s |
System event log | Y |
VLAN support | Y |
Web-based management | Y |
Width | 440 mm |
ARP inspection | Y |
Jumbo frames | 9000 |
IP-MAC-Port binding | Y |
SFP+ module slots quantity | 8 |
BPDU filtering/protection | Y |
Loop protection | Y |
Authentication | Guest VLAN,MAC-based authentication,Port-based authentication,Web-based authentication |
Traffic classification | Y |
Multicast listener discovery (MLD) snooping | Y |
Static route | Y |
Power connector | DC-in jack |
Authentication type | AAA,TACACS+ |
Configuring Location Settings (CLI) | Y |
Queue scheduling algorithms | SP,WRR+SP,Weighted Round Robin (WRR) |
Product colour | Black |
Virtual LAN features | Private VLAN,Protocol-based VLAN,Voice VLAN |
IPv4 & IPv6 features | IPv6 Telnet,IPv6 ping,IPv6 tracert |
DHCP features | DHCP relay,DHCP server,DHCP snooping,DHCPv6 client,DHCPv6 snooping |
Cloud-managed | Y |

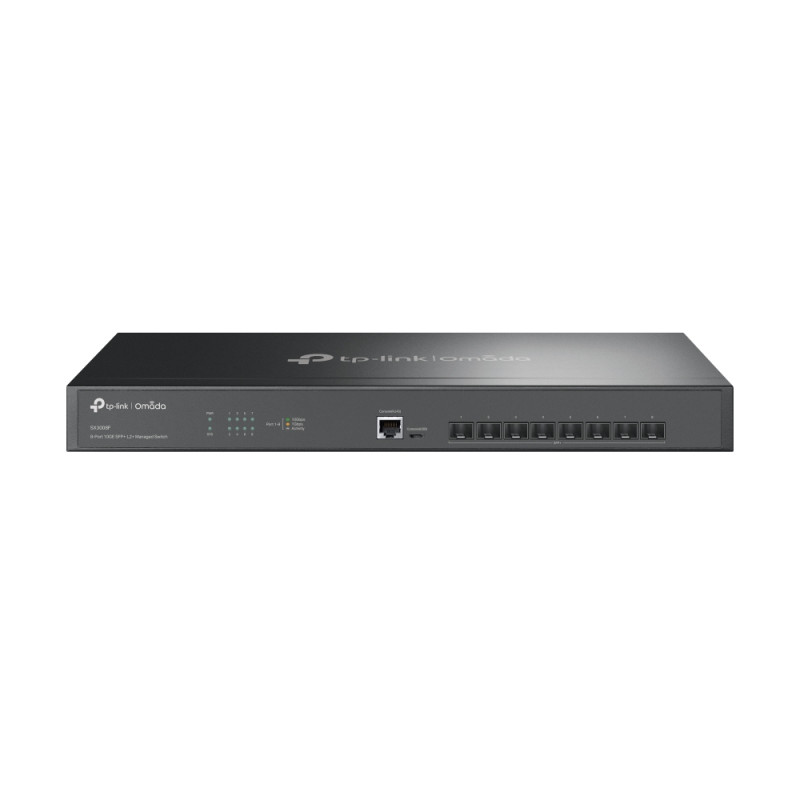

8× 10GE SFP+ Slots, 1× RJ45 Console, 1× Micro-USB Console, 160 Gbps, 32 K MAC, 9 KB Jumbo, 440×180×44 mm
sx3008f
In Stock
