TP-LINK JetStream 24-Port Gigabit L2 Managed Switch with 4 SFP Slots
  • TP-LINK JetStream 24-Port Gigabit L2 Managed Switch with 4 SFP Slots
  • TP-LINK JetStream 24-Port Gigabit L2 Managed Switch with 4 SFP Slots
  • TP-LINK JetStream 24-Port Gigabit L2 Managed Switch with 4 SFP Slots
  • TP-LINK JetStream 24-Port Gigabit L2 Managed Switch with 4 SFP Slots
Convenient Gigabit Switch for a Complete Omada Network JetStream 24-Port Gigabit L2 Managed Switch with 4 SFP SlotsSoftware-Defined Networking (SDN) with Cloud Access Omada’s Software-Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.Secure Networking Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control, and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. Also, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. Users’ network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.Advanced QoS Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.Abundant L2 and L2+ Features A complete lineup of L2 features is supported including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency.ISP Features sFlow, QinQ, L2PT PPPoE ID Insertion, and IGMP authentication features are provided, developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links.IPv6 Support IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.Enterprise Level Management Features Easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps on abnormal events.
10G supportNo
AC input frequency50/60 Hz
AC input voltage100 - 240 V
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Broadcast storm controlY
Cables includedLAN (RJ-45)
Console portRJ-45/micro-USB
Depth180 mm
Ethernet LAN data rates10,100,1000 Mbit/s
Flow control supportY
Form factor1U
Forwarding rate41.66 Mpps
Head-of-line (HOL) blockingY
Heat dissipation65.58 BTU/h
Height44 mm
IGMP snoopingY
Jumbo frames supportY
LED indicatorsY
Link aggregationY
MAC address filteringY
MAC address table8000 entries
MIB supportYes
Multicast supportY
Networking standardsIEEE 802.1D,IEEE 802.1Q,IEEE 802.1ad,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3x
Number of static routes48
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 45 °C
Port mirroringY
Power consumption (max)19.22 W
Power over Ethernet (PoE)No
Power supply includedN
Quality of Service (QoS) supportY
Quick start guideY
Rack mountingYes
Rate limitingY
Spanning tree protocolY
Storage relative humidity (H-H)5 - 90 %
Storage temperature (T-T)-40 - 70 °C
Switch layerL2
Switch typeManaged
Switching capacity56 Gbit/s
System event logY
VLAN supportY
Web-based managementY
Width440 mm
ARP inspectionY
SFP module slots quantity4
Loop protectionY
AuthenticationMAC-based authentication,Port-based authentication
Active link detectionY
Static routeY
Configuring Location Settings (CLI)Y
Product colourBlack
Policy-based routingY
DHCP featuresDHCP snooping
Cloud-managedY
IGMP proxyY

tl-sg3428.pdf

TP-LINK JetStream 24-Port Gigabit L2 Managed Switch with 4 SFP Slots Data Sheet

Download (4.12M)

You might also like

  • Cat5e UTP RJ45 Loaded Faceplates
    Cat5e UTP RJ45 Loaded Faceplates
  • 24 Port Cat6 CCS 2020 Right Angled UTP Patch Panel
    24 Port Cat6 CCS 2020 Right Angled UTP Patch Panel
  • Loose Tube - Internal/External Fibre Cable
    Loose Tube - Internal/External Fibre Cable
  • Cat5e RJ45 Patch Cables
    Cat5e RJ45 Patch Cables
  • Cat6 UTP PVC Solid Core Cable
    Cat6 UTP PVC Solid Core Cable
  • TP-LINK TL-SF1006P
    TP-LINK TL-SF1006P
  • Netgear WAX610
    Netgear WAX610
  • UK Socket / UK Plug Rack PDU
    UK Socket / UK Plug Rack PDU
  • TP-LINK 8-Port 10/100Mbps + 3-Port Gigabit Desktop Switch with 8-Port PoE+
    TP-LINK 8-Port 10/100Mbps + 3-Port Gigabit Desktop Switch with 8-Port PoE+
  • Cat5e UTP Cable - PVC Outer Sheath
    Cat5e UTP Cable - PVC Outer Sheath

Similar products

  • TP-LINK 8-Port Gigabit Easy Smart Switch with 4-Port PoE
    TP-LINK 8-Port Gigabit Easy Smart Switch with 4-Port PoE
  • TP-LINK LS1005
    TP-LINK LS1005
  • TP-LINK LS1005G
    TP-LINK LS1005G
  • TP-LINK LS1008
    TP-LINK LS1008
  • TP-LINK LS1008G
    TP-LINK LS1008G

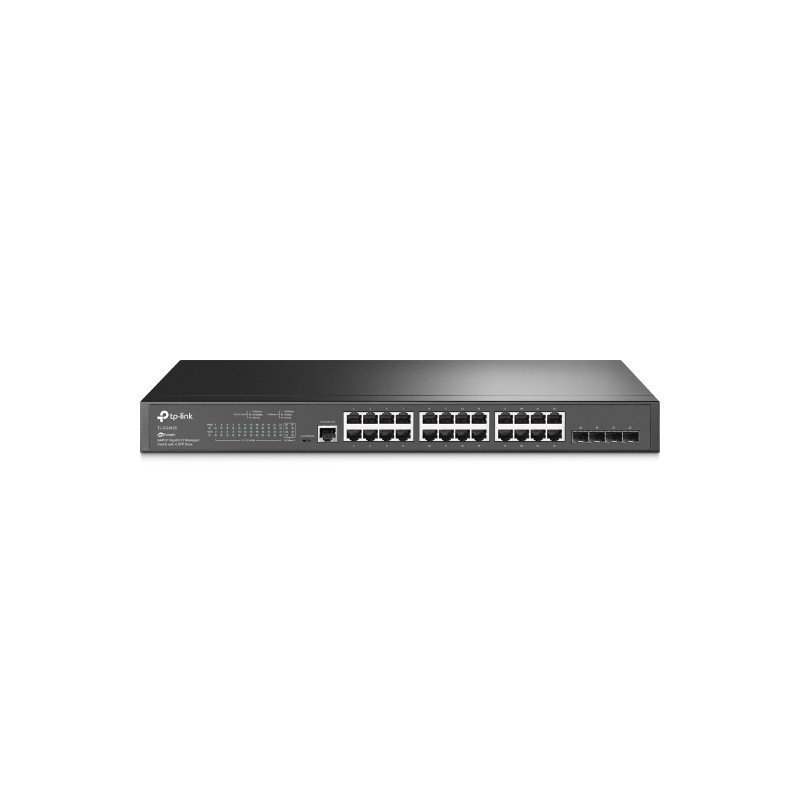

TP-LINK JetStream 24-Port Gigabit L2 Managed Switch with 4 SFP Slots

19.22W, 24× 10/100/1000 Mbps RJ45 Ports, 4× Gigabit SFP Slots, 1× RJ45 Console Port, 1× Micro-USB Console Port, 56Gbps, 41.66Mbps, 8K MAC, 9KB Jumbo Frame, Fanless

TL-SG3428

Out of Stock

£173.31
£144.43 Ex VAT.
