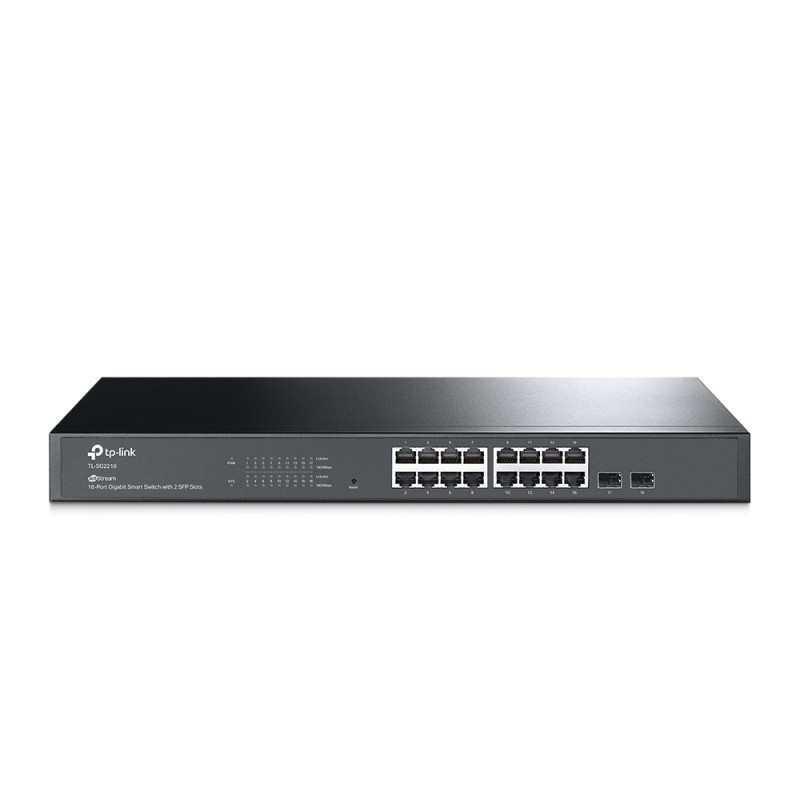

TP-LINK JetStream 16-Port Gigabit Smart Switch with 2 SFP Slots
  • TP-LINK JetStream 16-Port Gigabit Smart Switch with 2 SFP Slots
  • TP-LINK JetStream 16-Port Gigabit Smart Switch with 2 SFP Slots
  • TP-LINK JetStream 16-Port Gigabit Smart Switch with 2 SFP Slots
  • TP-LINK JetStream 16-Port Gigabit Smart Switch with 2 SFP Slots
Convenient Gigabit Switch for a Complete Omada Network JetStream 16-Port Gigabit Smart Switch with 2 SFP SlotsSoftware Defined Networking (SDN) with Cloud Access Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.Advanced L3 Features An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses and ISPs.Secure Networking Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports or VLAN ID. Users’ network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.Enterprise Level Features A complete lineup of L2+ features are supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency.Advanced QoS Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.ISP Features sFlow, QinQ, L2PT PPPoE ID Insertion and IGMP authentication features are provided, developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links.IPv6 Support IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.
10G supportNo
AC input frequency50/60 Hz
AC input voltage100 - 240 V
Basic switching RJ-45 Ethernet ports quantity16
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Cables includedAC,LAN (RJ-45)
CertificationCE, FCC, RoHS
Depth180 mm
Ethernet LAN data rates10,100,1000 Mbit/s
Flow control supportY
Forwarding rate26.8 Mpps
Heat dissipation41.97 BTU/h
Height44 mm
Jumbo frames supportY
LED indicatorsY
Link aggregationY
MAC address table8000 entries
Multicast supportY
Number of VLANs4000
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 40 °C
Port mirroringY
Power consumption (max)12.3 W
Power over Ethernet (PoE)No
Power supply includedY
Quality of Service (QoS) supportY
Quick start guideY
Rack mountingYes
Rate limitingY
Reset buttonY
Spanning tree protocolY
Storage relative humidity (H-H)5 - 90 %
Storage temperature (T-T)-40 - 70 °C
Switch layerL2/L2+
Switch typeManaged
Switching capacity36 Gbit/s
System event logY
VLAN supportY
Web-based managementY
Width440 mm
ARP inspectionY
Jumbo frames9
SFP module slots quantity2
Multicast listener discovery (MLD) snoopingY
Configuring Location Settings (CLI)Y
Product colourBlack
DHCP featuresDHCP relay,DHCP server,DHCPv6 client
Cloud-managedY

tl-sg2218.pdf

TP-LINK JetStream 16-Port Gigabit Smart Switch with 2 SFP Slots Data Sheet

Download (4.31M)
