TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static
routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The IP-MAC-Port
Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-ofService (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM and DDM functions help facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ managed Switches provide a reliable, secure solution for enterprise, campus and ISP networks.
routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The IP-MAC-Port
Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-ofService (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM and DDM functions help facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ managed Switches provide a reliable, secure solution for enterprise, campus and ISP networks.
| 10G support | No |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Access Control List (ACL) | Y |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Broadcast storm control | Y |
| Certification | CE, FCC, RoHS |
| Console port | RJ-45/micro-USB |
| Copper ethernet cabling technology | 10Base-T,1000Base-T |
| Depth | 330 mm |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Flow control support | Y |
| Form factor | 1U |
| Forwarding rate | 41.66 Mpps |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Head-of-line (HOL) blocking | Y |
| Heat dissipation | 1637.14 BTU/h |
| Height | 44 mm |
| IGMP snooping | Y |
| IP routing | Y |
| Jumbo frames support | Y |
| LED indicators | Y |
| Link aggregation | Y |
| MAC address filtering | Y |
| MAC address table | 16000 entries |
| Management protocols | SNMPv1/v2c/v3, LLDP/LLDP-MED |
| Multicast support | Y |
| Networking standards | IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3i,IEEE 802.3u,IEEE 802.3z |
| Number of fans | 2 fan(s) |
| Number of VLANs | 4000 |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 45 °C |
| Packet buffer memory | 12 MB |
| Port mirroring | Y |
| Power consumption (max) | 480.1 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Power source | AC |
| Power supply included | Y |
| Quality of Service (QoS) support | Y |
| Quick start guide | Y |
| Rack mounting | Yes |
| Rate limiting | Y |
| Security algorithms | SSH,SSL/TLS |
| Spanning tree protocol | Y |
| SSH/SSL support | Y |
| Static port security | Y |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Store-and-forward | Y |
| Switch layer | L2+ |
| Switch type | Managed |
| Switching capacity | 56 Gbit/s |
| System event log | Y |
| Total Power over Ethernet (PoE) budget | 384 W |
| User guide | Y |
| VLAN support | Y |
| Web-based management | Y |
| Width | 440 mm |
| ARP inspection | Y |
| Jumbo frames | 9000 |
| IP-MAC-Port binding | Y |
| SFP module slots quantity | 4 |
| BPDU filtering/protection | Y |
| Loop protection | Y |
| Authentication | MAC-based authentication,Port-based authentication |
| Power over Ethernet (PoE) power per port | 30 W |
| Active link detection | Y |
| Power connector | AC-in jack |
| GARP VLAN Registration Protocol (GVRP) | Y |
| Configuring Location Settings (CLI) | Y |
| Product colour | Black |
| Virtual LAN features | MAC address-based VLAN,Port-based VLAN,Private VLAN,Tagged VLAN,Voice VLAN |
| DHCP features | DHCP client,DHCP relay,DHCP server,DHCP snooping,DHCPv6 client,DHCPv6 snooping |
| Cloud-managed | Y |
sg3428mp.pdf
TP-Link Omada 28-Port Gigabit L2+ Managed Switch with 24-Port PoE+ Data Sheet
Download (3.48M)Similar products
-
TP-LINK 8-Port Gigabit Easy Smart Switch...
-
TP-LINK LS1005
-
TP-LINK LS1005G
-
TP-LINK LS1008
-
TP-LINK LS1008G

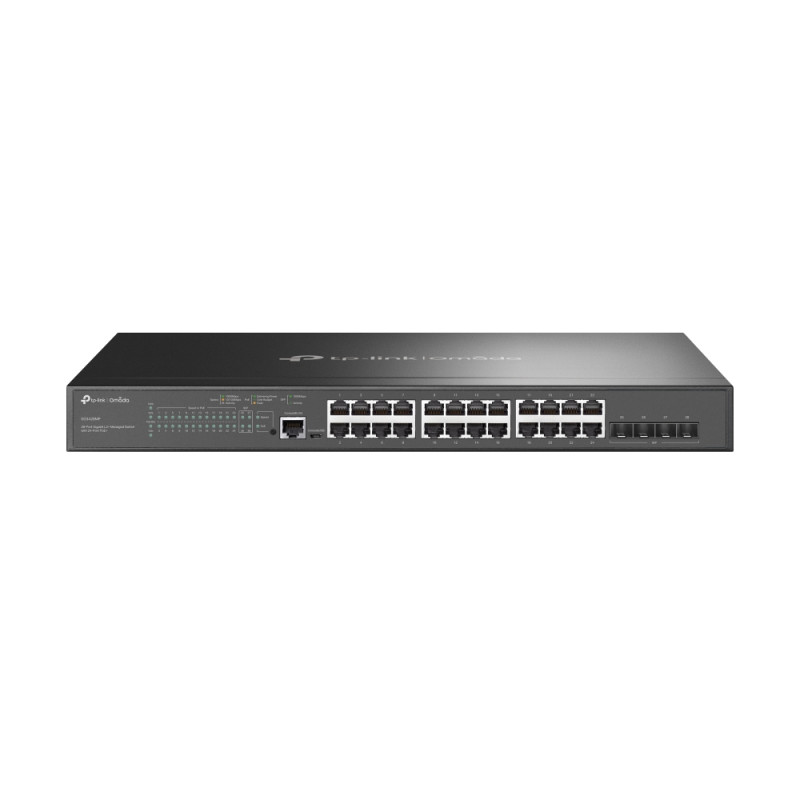

TP-Link Omada 28-Port Gigabit L2+ Managed Switch with 24-Port PoE+
24× 10/100/1000 Mbps RJ45 PoE+, 4× Gigabit SFP, RJ45/Micro-USB, 56 Gbps, 16K MAC, 9 KB Jumbo, 440×330×44 mm
sg3428mp
In Stock
£440.81
£367.34 Ex VAT.
