Increase Your Network Speed and Save Energy



Let LiteWave Bring You Lighter Network Life

The TP-Link LiteWave Series Unmanaged Switches provide easy and affordable way to expand your wired network. They are easy to use and reliable. With these plug-and-play switches, you can expand your network connections to multiple devices instantly. With all ports support Auto-MDI/MDIX, there’s no need to worry about the type of cable to use.



Go Green with Your Ethernet

The LiteWave Series also supports energy-efficient technology, helping you save power and money. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it’s a win-win!



Durable Metal Casing

The interior components of LS105G are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, LS105G delivers switching performance you can depend on. Its compact size makes it ideal for deployment on desktops or work benches.



Use Where You Need, However You Need

The LS105G is fully compatible with networked devices such as computers, printers, webcams, IPTVs. It has a wide range of application scenarios and is suitable for networking in school dormitories, surveillance, homes, and small businesses.
10G supportNo
Basic switching RJ-45 Ethernet ports quantity5
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
CertificationCE, FCC, RoHS
Depth98 mm
Forwarding rate7.4 mpps
Heat dissipation9.466 BTU/h
Height25.1 mm
Jumbo frames supportY
LED indicatorsLAN,Power
MAC address table2000 entries
Networking standardsIEEE 802.1p,IEEE 802.3ab,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 40 °C
Package depth125 mm
Package height92 mm
Package width128 mm
Packet buffer memory1 MB
Power consumption (max)2.776 W
Power over Ethernet (PoE)No
Power supply includedY
Quality of Service (QoS) supportY
Quick start guideY
Rack mountingNo
Storage relative humidity (H-H)5 - 90 %
Storage temperature (T-T)-40 - 70 °C
Switch typeUnmanaged
Switching capacity10 Gbit/s
Width99.8 mm
Jumbo frames16
Product colourBlue

ls105g.pdf

TP-LINK 5-Port 10/100/1000Mbps Desktop Network Switch Data Sheet

Download (936.34k)

You might also like

  • Cat6 FTP Shielded LSOH Solid Core Cable
    Cat6 FTP Shielded LSOH Solid Core Cable
  • External Cat5e UTP LDPE RJ45 Patch Leads
    External Cat5e UTP LDPE RJ45 Patch Leads
  • Cat6 UTP Keystone Loaded Faceplates
    Cat6 UTP Keystone Loaded Faceplates
  • CCS Cat6a FTP RJ45 Plug for Solid Core Cable
    CCS Cat6a FTP RJ45 Plug for Solid Core Cable
  • Loose Tube - Internal/External Fibre Cable
    Loose Tube - Internal/External Fibre Cable
  • External Cat5e UTP Solid Cable
    External Cat5e UTP Solid Cable
  • TP-LINK LS1008G
    TP-LINK LS1008G
  • Shielded FTP Cat5e RJ45 Ethernet Patch Lead
    Shielded FTP Cat5e RJ45 Ethernet Patch Lead
  • Singlegang Metal Faceplate with 1 Cat6 UTP Module Module
    Singlegang Metal Faceplate with 1 Cat6 UTP...
  • TP-LINK 8-Port 10/100Mbps Desktop Switch
    TP-LINK 8-Port 10/100Mbps Desktop Switch

Similar products

  • TP-LINK 8-Port Gigabit Easy Smart Switch with 4-Port PoE
    TP-LINK 8-Port Gigabit Easy Smart Switch...
  • TP-LINK LS1005
    TP-LINK LS1005
  • TP-LINK LS1005G
    TP-LINK LS1005G
  • TP-LINK LS1008
    TP-LINK LS1008
  • TP-LINK LS1008G
    TP-LINK LS1008G

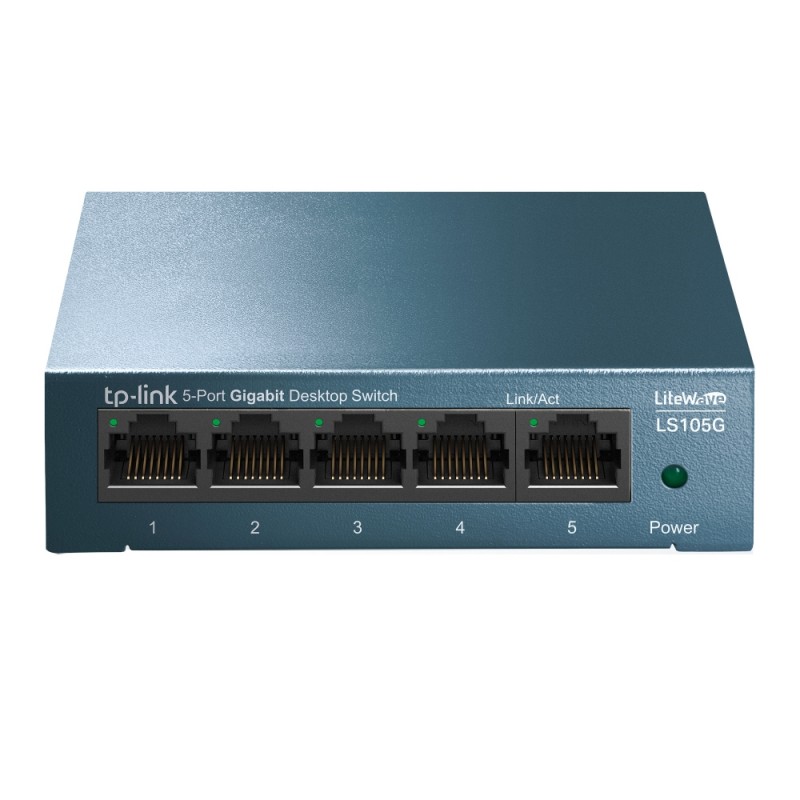

TP-LINK 5-Port 10/100/1000Mbps Desktop Network Switch
