10G support | No |
Auto MDI/MDI-X | Y |
Auto-negotiation | Y |
Basic switching RJ-45 Ethernet ports quantity | 9 |
Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
Cable types supported | Cat3,Cat4,Cat5,Cat5e |
Certification | FCC, CE, RoHS |
Copper ethernet cabling technology | 10Base-T,100Base-TX |
Depth | 98 mm |
Flow control support | Y |
Full duplex | Y |
Heat dissipation | 262.84 BTU/h |
Height | 27 mm |
LED indicators | Activity,Link,PoE,Power |
MAC address table | 2000 entries |
Networking standards | IEEE 802.3af,IEEE 802.3at,IEEE 802.3x |
Operating relative humidity (H-H) | 10 - 90 % |
Operating temperature (T-T) | 0 - 40 °C |
Power consumption (max) | 77.08 W |
Power over Ethernet (PoE) | Yes |
Power over Ethernet (PoE) ports quantity | 8 |
Power supply included | Y |
Quick start guide | Y |
Storage relative humidity (H-H) | 5 - 90 % |
Storage temperature (T-T) | -40 - 70 °C |
Store-and-forward | Y |
Switch type | Unmanaged |
Switching capacity | 1.8 Gbit/s |
Total Power over Ethernet (PoE) budget | 65 W |
Width | 171 mm |
MAC address auto-learning supported | Y |
MAC address auto-aging supported | Y |
Power over Ethernet (PoE) power per port | 30 W |
Product colour | Black |
Fanless | Y |
Half duplex | Y |

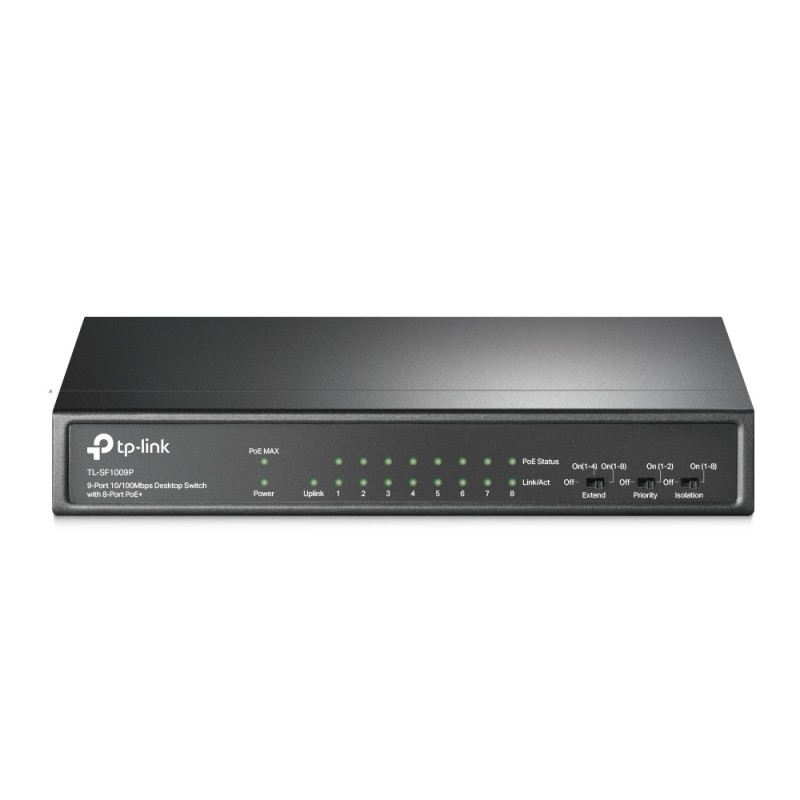

TP-LINK 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+ Data Sheet
Download (266.99k)9x 10/100 Mbps RJ-45, PoE, 1.8 Gbps, 171x98x27 mm
TL-SF1009P
In Stock
