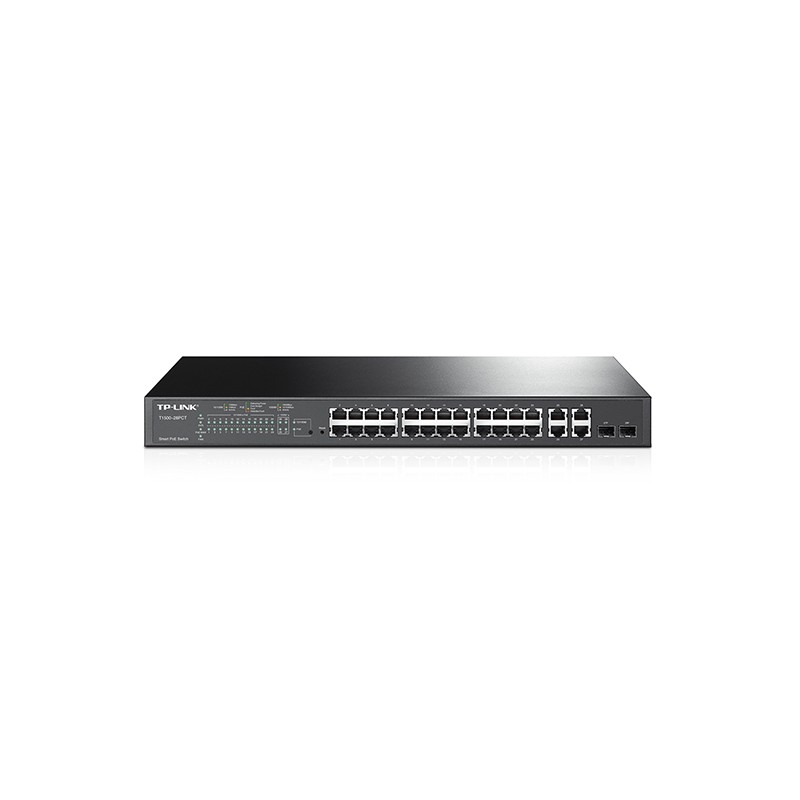

TP-LINK T1500-28PCT
  • TP-LINK T1500-28PCT
  • TP-LINK T1500-28PCT
What This Product Does



The T1500-28PCT provides 24 10/100Mbps ports that supports 802.3at/af-compliant PoE, with a total PoE power supply up to 180W, powerful and flexible enough for users to deploy wireless access points or IP-based network surveillance cameras. The switch also comes equipped with 4 10/100/1000Mbps RJ45 ports and 2 combo SFP slots, expanding your network flexibly. In addition, it provides high performance, enterprise-level QoS, useful security strategies and rich layer 2 management features.



TP-LINK Smart PoE Switch T1500-28PCT is a cost-effective product solution for the small and medium business. T1500-28PCT has useful security features. The Storm Control feature protects against Broadcast, Multicast and Unknown unicast Storm. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. Anymore, the easy-to-use web management interfaces, along with SNMP and RMON, mean faster setup and configuration with less downtime. For workgroup and departments requiring cost-sensitive layer 2 switch, TP-LINK smart PoE switch T1500-28PCT provides you the ideal access-edge solution.



IEEE 802.3at/af-compliant Power over Ethernet



The T1500-28PCT supports 24 ports of IEEE 802.3at/af-compliant PoE and has a total power supply of 180W to power any 802.3at or 802.3af compliant power device. It’s an efficient and cost-effective choice to work with wireless access points, surveillance cameras, IP phones and other PoE supported devices, while getting rid of cables or power lines running around. Compact and flexible, the T1500-28PCT is ideal to flexibly use PoE to deploy wireless access points or IP-based network surveillance cameras for projects or small business networks.



Advanced QoS features



To integrate voice, data and video service on one network, the switch applies rich QoS policies. Administrator can designate the priority of the traffic based on a variety of means including Port Priority, 802.1P Priority and DSCP Priority, to ensure that voice and video are always clear, smooth and jitter free. In conjunction with the Voice VLAN the switch supports, the voice applications will operate with much smoother performance.



Abundant Layer 2 features



For more application of layer 2 switches, T1500-28PCT supports a complete lineup of layer 2 features, including 802.1Q tag VLAN, Port Isolation, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Group and 802.3x Flow Control function. Any more, the switches provide advanced features for network maintenance such as Loop Back Detection, Cable Diagnostics and IGMP Snooping. IGMP snooping ensures the switch intelligently forward the multicast stream only to the appropriate subscribers while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access.



Enterprise Level Management Features



T1500-28PCT is easy to use and manage. It supports various user-friendly standard management features, such as intuitive web-based Graphical User Interface (GUI) or SNMP (v1/2/3) and RMON support enables the switch to be polled for valuable status information and send traps on abnormal events.
10G supportNo
AC input frequency50 - 60 Hz
AC input voltage100 - 240 V
Access Control List (ACL)Y
Auto MDI/MDI-XY
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Broadcast storm controlY
Cable types supportedCat5,Cat5e
Cables includedAC
CertificationCE, FCC, RoHS
Combo SFP ports quantity2
Compatible operating systemsMicrosoft Windows XP, Vista, Windows 7, Windows 8, MAC OS, NetWare, UNIX, Linux
Copper ethernet cabling technology10BASE-T,100BASE-TX,1000BASE-T
Depth220 mm
Fast Ethernet (copper) ports quantity24
Firmware upgradeableY
Flow control supportY
Form factor1U
Gigabit Ethernet (copper) ports quantity4
Height44 mm
IGMP snoopingY
Jumbo frames supportY
Link aggregationY
MAC address table8000 entries
Management protocolsSNMP v1/v2c/v3, RMON, SNTP, TFTP
Multicast supportY
Networking standardsIEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x
Number of fans2 fan(s)
Number of queues4
Number of VLANs512
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 40 °C
Port mirroringY
Power consumption (typical)222.15 W
Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity24
Quality of Service (QoS) supportY
Quick start guideY
Rack mountingYes
Security algorithmsSSH,SSH-2,SSL/TLS
Spanning tree protocolY
SSH/SSL supportY
Storage relative humidity (H-H)5 - 90 %
Storage temperature (T-T)-40 - 70 °C
Switch layerL2
Switch typeManaged
Switching capacity12.8 Gbit/s
Throughput9.5 mpps
Total Power over Ethernet (PoE) budget180 W
VLAN supportY
Web-based managementY
Width440 mm
Product colourBlack

TL-SL2428P.pdf

TP-LINK T1500-28PCT Data Sheet

Download (1.33M)

You might also like

  • TP-LINK TL-SM311LM
    TP-LINK TL-SM311LM

Similar products

  • TP-LINK 8-Port Gigabit Easy Smart Switch with 4-Port PoE
    TP-LINK 8-Port Gigabit Easy Smart Switch with 4-Port PoE
  • TP-LINK LS1005
    TP-LINK LS1005
  • TP-LINK LS1005G
    TP-LINK LS1005G
  • TP-LINK LS1008
    TP-LINK LS1008
  • TP-LINK LS1008G
    TP-LINK LS1008G

TP-LINK T1500-28PCT

24x 10/100Mbps RJ-45, 4x Gigabit Ethenet RJ-45, 2x Combo SFP, PoE+, 222.15W

TL-SL2428P

In Stock

£212.72
£177.26 Ex VAT.
