TP-LINK 24-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch
  • TP-LINK 24-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch
  • TP-LINK 24-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch
  • TP-LINK 24-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch
  • TP-LINK 24-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch
  • TP-LINK 24-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch
  • TP-LINK 24-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch
  • TP-LINK 24-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch
Professional High Power 24-Port PoE+ Switch



Plug and Play, with PoE Transmission for Surveillance up to 250 m



- 250 W PoE Budget

- Transmission Distance up to 250 m

- One-Click Priority Mode

- One-Click Traffic Separation

- Ultra HD Video

- Plug and Play



Dedicated 24-Port PoE+ Switch for Wide Range of Applications with 250 W PoE Budget



Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget for the 24× PoE ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.



Dedicated Design for IP Surveillance—Up to 250 m Transmission



With extend mode, the PoE transmission distance reaches up to 250 m — perfect for IP Camera deployment in large areas.



Dedicated Design for IP Surveillance — Higher Performance and Security



Priority Video Quality Guaranteed



Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–8 when one-touch Priority Mode is on.



One-Click Traffic Separation for Ports 1-24



With one click, Isolation Mode easily divides traffic for ports 1–24 to avoid snooping and tampering. This enables the switch to isolate broadcast storm, improving LAN security and data transmission.



Smooth HD Video Monitoring



2× gigabit RJ45 ports and 2× combo gigabit SFP ports ensure smooth streaming even when 24× HD IP cameras work simultaneously.



Intelligent Power Management to Prevent Power Overload



When your total power consumption exceeds 250 W, Intelligent Power Management automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply. This protects the device from power overload operation. It also automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.



Wide Operating Temperature with Good Heat Dissipation



Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0–50℃) with reliability.
10G supportNo
AC input frequency50/60 Hz
AC input voltage100 - 240 V
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
CertificationCE, FCC, RoHS
Combo SFP ports quantity2
Copper ethernet cabling technology10BASE-T,100BASE-TX,1000BASE-T
Depth180 mm
Fast Ethernet (copper) ports quantity24
Form factor1U
Gigabit Ethernet (copper) ports quantity2
Heat dissipation1002.54 BTU/h
Height44 mm
LED indicatorsY
MAC address table8000 entries
Networking standardsIEEE 802.3af,IEEE 802.3at,IEEE 802.3x
Number of fans2 fan(s)
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 50 °C
Package depth250 mm
Package height80 mm
Package width528 mm
Power consumption (max)294 W
Power consumption (typical)18.32 W
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity24
Power supply includedY
Quick start guideY
Rack mount kitY
Rack mountingYes
Storage relative humidity (H-H)5 - 90 %
Storage temperature (T-T)-40 - 70 °C
Store-and-forwardY
Switch typeUnmanaged
Switching capacity8.8 Gbit/s
Total Power over Ethernet (PoE) budget250 W
Width440 mm
MAC address auto-learning supportedY
MAC address auto-aging supportedY
Power over Ethernet (PoE) power per port30 W
Product colourGrey

You might also like

  • TP-LINK Gigabit Multi-mode Media Converter
    TP-LINK Gigabit Multi-mode Media Converter
  • 24 Port Cat6a FTP Shielded CCS 20/20 Right Angled Patch Panel
    24 Port Cat6a FTP Shielded CCS 20/20 Right...
  • 24 Port Cat5e UTP CCS Elite Patch Panel
    24 Port Cat5e UTP CCS Elite Patch Panel
  • Cage Nuts & Bolts - Pack of 50
    Cage Nuts & Bolts - Pack of 50
  • 190mm 1u Cantilever Shelf
    190mm 1u Cantilever Shelf
  • Cat6 RJ45 Patch Cables
    Cat6 RJ45 Patch Cables
  • 300mm Deep CCS Wall Mounted Network Cabinets
    300mm Deep CCS Wall Mounted Network Cabinets
  • 24 Port Cat6 UTP CCS Elite Patch Panel
    24 Port Cat6 UTP CCS Elite Patch Panel
  • 24 Way Unloaded UTP Keystone Patch Panel
    24 Way Unloaded UTP Keystone Patch Panel

Similar products

  • TP-LINK 8-Port Gigabit Easy Smart Switch with 4-Port PoE
    TP-LINK 8-Port Gigabit Easy Smart Switch...
  • TP-LINK LS1005
    TP-LINK LS1005
  • TP-LINK LS1005G
    TP-LINK LS1005G
  • TP-LINK LS1008
    TP-LINK LS1008
  • TP-LINK LS1008G
    TP-LINK LS1008G

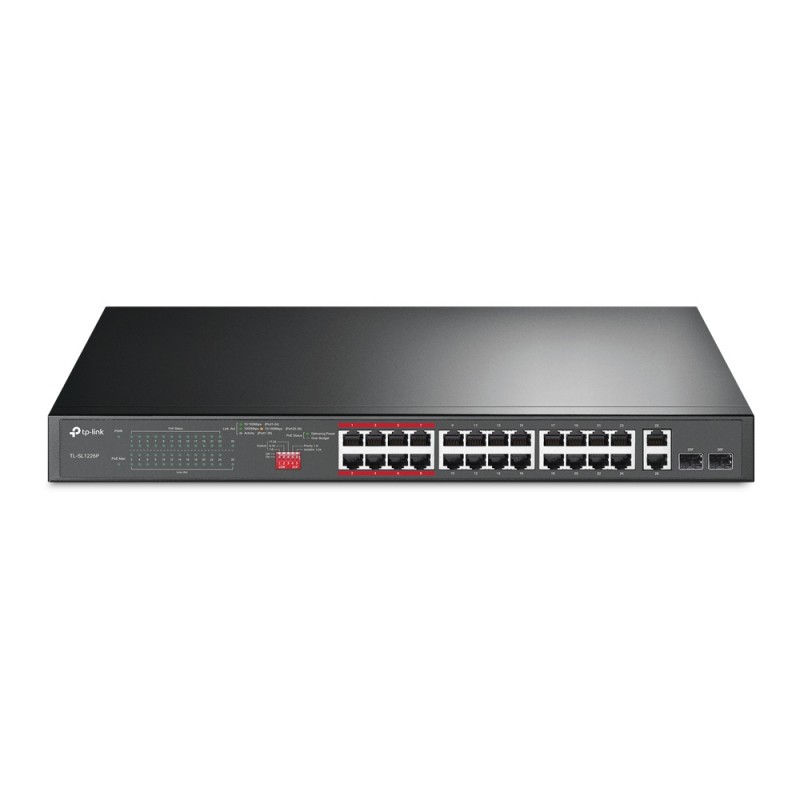

TP-LINK 24-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch
