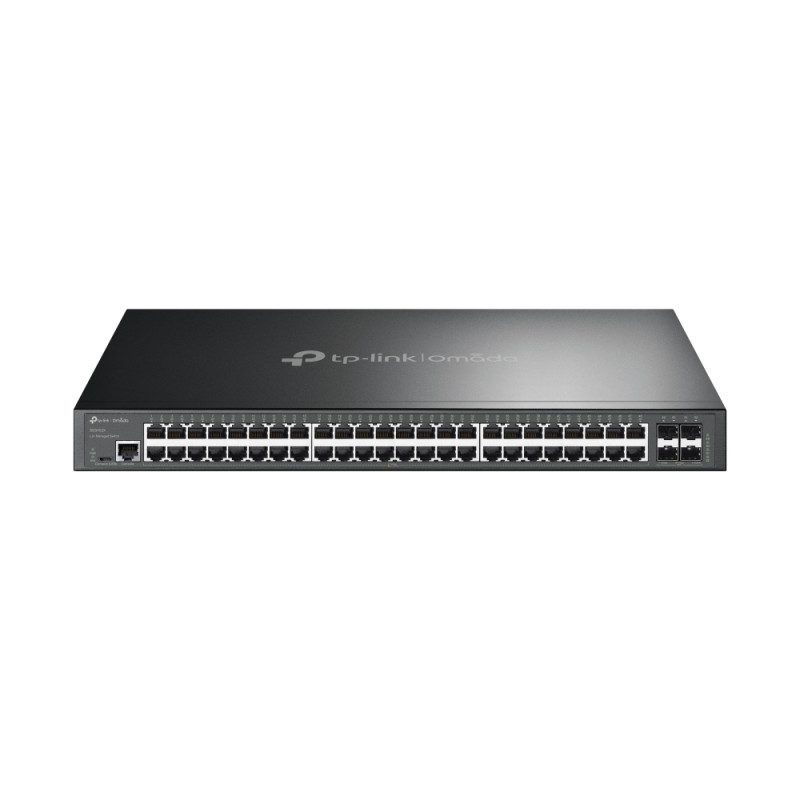

TP-Link Omada 48-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots
  • TP-Link Omada 48-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots
  • TP-Link Omada 48-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots
TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.
10G supportYes
AC input frequency50/60 Hz
AC input voltage100 - 240 V
Access Control List (ACL)Y
Basic switching RJ-45 Ethernet ports quantity48
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Broadcast storm controlY
Cables includedAC
CertificationCE, FCC, RoHS
Console portRJ-45/micro-USB
Depth220 mm
Flow control supportY
Form factor1U
Forwarding rate130.9 mpps
Head-of-line (HOL) blockingY
Heat dissipation111.65 BTU/h
Height44 mm
IGMP snoopingY
Jumbo frames supportY
LED indicatorsY
Link aggregationY
MAC address filteringY
MAC address table16000 entries
Management protocolsSNMPv1/v2c/v3, SNTP
MIB supportRFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618,
Multicast supportY
Networking standardsIEEE 802.1D,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.3ad
Number of static routes48
Number of VLANs4000
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 45 °C
Package typebox
Packet buffer memory12 MB
Password protectionY
Port mirroringY
Power consumption (max)32.72 W
Power over Ethernet (PoE)No
Power sourceAC
Power supply includedY
Quality of Service (QoS) supportY
Quick start guideY
Rack mount kitY
Rack mountingYes
Rack railsY
Rate limitingY
Spanning tree protocolY
SSH/SSL supportY
Static port securityY
Storage relative humidity (H-H)5 - 90 %
Storage temperature (T-T)-40 - 70 °C
Switch layerL2+
Switch typeManaged
Switching capacity176 Gbit/s
System event logY
VLAN supportY
Web-based managementY
Width440 mm
ARP inspectionY
Jumbo frames9000
IP-MAC-Port bindingY
SFP+ module slots quantity4
BPDU filtering/protectionY
Loop protectionY
AuthenticationAuto VLAN,Guest VLAN,MAC-based authentication,Port-based authentication
Multicast listener discovery (MLD) snoopingY
Static routeY
Power connectorAC-in jack
GARP VLAN Registration Protocol (GVRP)Y
Authentication typeAAA,RADIUS,TACACS+
Configuring Location Settings (CLI)Y
Queue scheduling algorithmsSP,WRR+SP,Weighted Round Robin (WRR)
Product colourBlack
Virtual LAN featuresPrivate VLAN,Tagged VLAN,VLAN mapping,Voice VLAN
IPv4 & IPv6 featuresIPv4/IPv6 access-control list (ACL),IPv6 Telnet,IPv6 ping,IPv6 tracert
DHCP featuresDHCP client,DHCP relay,DHCP server
Cloud-managedY
IGMP proxyY
IPv4 routes48
IPv6 routes48
Public MIBY
Huawei-proprietary MIBY

sg3452x.pdf

TP-Link Omada 48-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots Data Sheet

Download (13.02M)

Similar products

  • TP-LINK 8-Port Gigabit Easy Smart Switch with 4-Port PoE
    TP-LINK 8-Port Gigabit Easy Smart Switch...
  • TP-LINK LS1005
    TP-LINK LS1005
  • TP-LINK LS1005G
    TP-LINK LS1005G
  • TP-LINK LS1008
    TP-LINK LS1008
  • TP-LINK LS1008G
    TP-LINK LS1008G

TP-Link Omada 48-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots

48x 10/100/1000 Mbps RJ45, 4x 10G SFP+, RJ45 Console Port, Micro-USB Console Port, 176 Gbps, 130.94 Mpps, 16 K Mac, 9 KB Jumbo Frame, 440 × 220 × 44 mm

sg3452x

Out of Stock

£508.51
£423.76 Ex VAT.
