TP-LINK JetStream 8-Port 10GE SFP+ L2+ Managed Switch
  • TP-LINK JetStream 8-Port 10GE SFP+ L2+ Managed Switch
  • TP-LINK JetStream 8-Port 10GE SFP+ L2+ Managed Switch
  • TP-LINK JetStream 8-Port 10GE SFP+ L2+ Managed Switch
  • TP-LINK JetStream 8-Port 10GE SFP+ L2+ Managed Switch
  • TP-LINK JetStream 8-Port 10GE SFP+ L2+ Managed Switch
Future-Proof Your Business with Full 10G Fiber Switch JetStream 8-Port 10GE SFP+ L2+ Managed SwitchFull Fiber Switch with Lightning-Fast 10G Build and expand your lightning-fast network with TP-Link TL-SX3008F—a fully managed switch with full 8-port 10G fiber ports and 160 Gbps switching capacity. Ideal for small, medium, and large business networks, it meets and surpasses the needs for high-speed, reliable, and safe enterprise networks.Seamless Integration to Omada Cloud SDN Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.Advanced L3 Features An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses and ISPs.Secure Networking Our high-quality security features defend against a range of network threats. They include IP-MAC-Port-VID Binding, Port Security, Storm Control, and DHCP Snooping. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. The Access Control Lists (ACL, L2 to L4) restrict access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. User access to the network can be controlled through 802.1X authentication to grant access according to the valid user credentials.Enterprise Level Features A complete lineup of L2+ features is supported. 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control are among the innovative features. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to appropriate subscribers and reducing unnecessary traffic, while IGMP throttling & filtering restrict subscribers at the port level to prevent unauthorized multicast access. Static Routing segments the network to route traffic efficiently.Advanced Quality of Service (QoS) Voice and video traffic and be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS, voice and video services remain smooth, even in situations of low bandwidth.ISP Features Internet Service Providers (ISPs) get the support they need with features including sFlow, QinQ, L2PT, PPPoE ID Insertion, and IGMP authentication. 802.3ah OAM and Device Link Detection Protocol (DLDP) provide straightforward monitoring and troubleshooting of Ethernet links across the entire network.IPv6 Support An enormous variety of IPv6 functions guarantees your network will be ready for the Next Generation Network (NGN) without the need to upgrade your hardware. Take advantage of features such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery, and IPv6 Neighbor Discover to enhance your network environment.
10G supportYes
AC input frequency50/60 Hz
AC input voltage100 - 240 V
Access Control List (ACL)Y
Basic switching RJ-45 Ethernet ports typeNone
CertificationCE, FCC, RoHS
Console portRJ-45/micro-USB
Depth180 mm
Flow control supportY
Forwarding rate119.04 Mpps
Height44 mm
IGMP snoopingY
Jumbo frames supportY
LED indicatorsY
Link aggregationY
MAC address filteringY
MAC address table32000 entries
ManualY
MIB supportY
Multicast supportY
Networking standardsIEEE 802.1D,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.3ad,IEEE 802.3x
Number of VLANs4000
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 45 °C
Package typebox
Port mirroringY
Power supply includedY
Quality of Service (QoS) supportY
Quick start guideY
Rack mount kitY
Rack mountingYes
Spanning tree protocolY
SSH/SSL supportY
Static port securityY
Storage relative humidity (H-H)5 - 90 %
Storage temperature (T-T)-40 - 70 °C
Switch layerL2+
Switch typeManaged
Switching capacity160 Gbit/s
System event logY
VLAN supportY
Web-based managementY
Width440 mm
ARP inspectionY
Jumbo frames9
SFP+ module slots quantity8
Loop protectionY
AuthenticationMAC-based authentication,Web-based authentication
Power connectorDC-in jack
Configuring Location Settings (CLI)Y
Product colourBlack
DHCP featuresDHCP relay,DHCP server,DHCP snooping,DHCPv6 snooping
Cloud-managedY

tl-sx3008f.pdf

TP-LINK JetStream 8-Port 10GE SFP+ L2+ Managed Switch Data Sheet

Download (4.27M)

You might also like

  • CCS Cat6a FTP RJ45 Plug for Solid Core Cable
    CCS Cat6a FTP RJ45 Plug for Solid Core Cable
  • External Cat6 UTP LDPE RJ45 Patch Leads
    External Cat6 UTP LDPE RJ45 Patch Leads
  • Cat6 UTP RJ45 Through Coupler
    Cat6 UTP RJ45 Through Coupler
  • Cat 6a FTP Tool-less Keystone Module
    Cat 6a FTP Tool-less Keystone Module

Similar products

  • TP-LINK 8-Port Gigabit Easy Smart Switch with 4-Port PoE
    TP-LINK 8-Port Gigabit Easy Smart Switch...
  • TP-LINK LS1005
    TP-LINK LS1005
  • TP-LINK LS1005G
    TP-LINK LS1005G
  • TP-LINK LS1008
    TP-LINK LS1008
  • TP-LINK LS1008G
    TP-LINK LS1008G

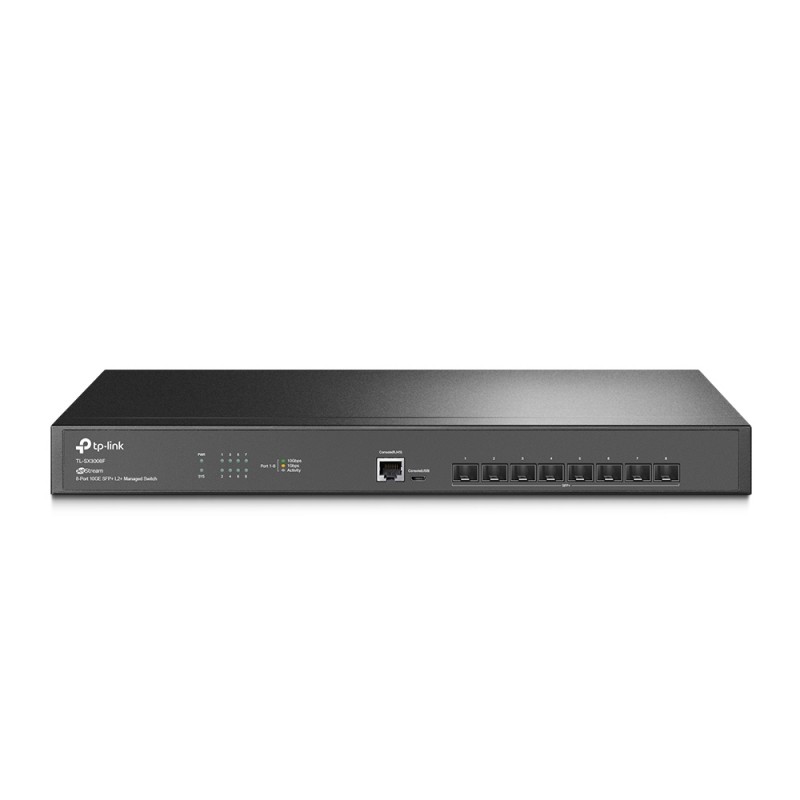

TP-LINK JetStream 8-Port 10GE SFP+ L2+ Managed Switch

8× 10GE SFP+, 1× RJ45, 1× Micro-USB, 160 Gbps, 32 K MAC, 440 × 180 × 44 mm

TL-SX3008F

Out of Stock

£236.34
£196.95 Ex VAT.
