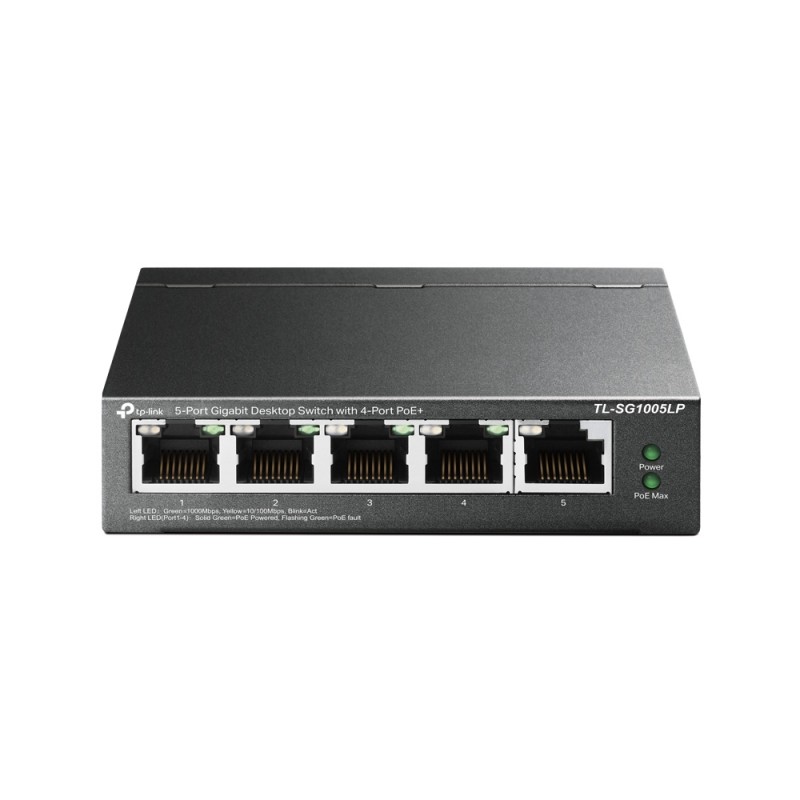

TP-LINK TL-SG1005LP
  • TP-LINK TL-SG1005LP
  • TP-LINK TL-SG1005LP
  • TP-LINK TL-SG1005LP
  • TP-LINK TL-SG1005LP
Professional 5-Port Gigabit Switch with 4 PoE+ Ports

Plug and Play, with PoE power supply which meets the needs of diverse devices.



Dedicated 4-Port PoE+ Switch (40 W Budget) for Numerous Applications

Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 40 W PoE power budget for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.



Intelligent Power Management

When total power consumption exceeds 40 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.



Advanced Functions for Higher Performance

Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free.

IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV.



Durable Metal Casing

The interior components of TL-SG1005LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG1005LP delivers switching performance you can depend on.
10G supportNo
AC input frequency50/60 Hz
AC input voltage100 - 240 V
Auto MDI/MDI-XY
Auto-negotiationY
Basic switching RJ-45 Ethernet ports quantity5
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Cable types supportedCat3,Cat4,Cat5,Cat5e,Cat6
CertificationFCC, CE, RoHS
Copper ethernet cabling technology10BASE-T,100BASE-TX,1000BASE-T
Depth98 mm
Flow control supportY
Forwarding rate7.44 Mpps
Heat dissipation161.98 BTU/h
Height25 mm
IGMP snoopingY
Jumbo frames supportY
LED indicatorsY
MAC address table2000 entries
Networking standardsIEEE 802.1p,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 40 °C
Power consumption (max)47.5 W
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity4
Power supply includedY
Quality of Service (QoS) supportY
Storage relative humidity (H-H)5 - 90 %
Storage temperature (T-T)-40 - 70 °C
Store-and-forwardY
Switch typeUnmanaged
Switching capacity10 Gbit/s
Total Power over Ethernet (PoE) budget40 W
User guideY
Wall mountableY
Width99.8 mm
Jumbo frames16000
MAC address auto-learning supportedY
MAC address auto-aging supportedY
Product colourBlack
FanlessY

You might also like

  • Krone Style IDC Punchdown Tool
    Krone Style IDC Punchdown Tool
  • TP-LINK 5-Port 10/100/1000Mbps Desktop Network Switch
    TP-LINK 5-Port 10/100/1000Mbps Desktop...
  • Cat6a FTP RJ45 Module (Euromod Size)
    Cat6a FTP RJ45 Module (Euromod Size)
  • Netgear GS105
    Netgear GS105
  • 24 Port Cat6 UTP CCS Elite Patch Panel
    24 Port Cat6 UTP CCS Elite Patch Panel
  • 300mm Deep CCS Wall Mounted Network Cabinets
    300mm Deep CCS Wall Mounted Network Cabinets
  • TP-LINK PoE Injector
    TP-LINK PoE Injector
  • Shielded FTP Cat5e RJ45 Ethernet Patch Lead
    Shielded FTP Cat5e RJ45 Ethernet Patch Lead
  • Cat5e RJ45 Patch Cables
    Cat5e RJ45 Patch Cables
  • 8u Connectix Slim Line Home Cabinet
    8u Connectix Slim Line Home Cabinet

Similar products

  • TP-LINK 8-Port Gigabit Easy Smart Switch with 4-Port PoE
    TP-LINK 8-Port Gigabit Easy Smart Switch...
  • TP-LINK LS1005
    TP-LINK LS1005
  • TP-LINK LS1005G
    TP-LINK LS1005G
  • TP-LINK LS1008
    TP-LINK LS1008
  • TP-LINK LS1008G
    TP-LINK LS1008G

TP-LINK TL-SG1005LP

5x 1G RJ-45, 10 Gbps, 7.44 Mpps, PoE, 99.8×98×25 mm

TL-SG1005LP

In Stock

£46.28
£38.57 Ex VAT.
