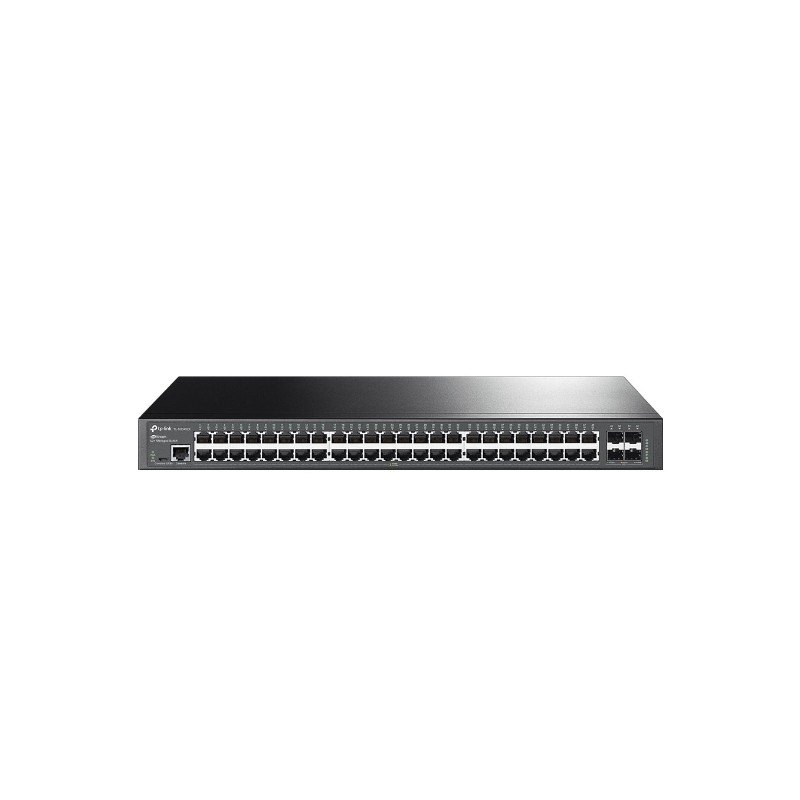

TP-Link JetStream 48-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots
  • TP-Link JetStream 48-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots
  • TP-Link JetStream 48-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots
  • TP-Link JetStream 48-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots
  • TP-Link JetStream 48-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots
  • TP-Link JetStream 48-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots
10G Uplink Managed Switch for a Complete Omada Network- 10G Lightning-Fast Uplink Connection 4× 10Gbps SFP+ Slots for High-Bandwidth Connectivity- Gigabit Connections 48× Gigabit Ethernet Ports Offer Reliable Connections- Centralized Cloud Management SDN Solutions Integration for a Highly Efficient Network- Advanced L2+ Features Static Routing, IGMP Snooping, 802.1Q VLAN and MoreEnterprise Switch with 10G Uplink 4× 10 Gbps SFP+ slots provide non-blocking switching performance and ultra-low latency, so reliable and lightning-fast connections to server and other switches are easily built.Software Defined Networking (SDN) with Cloud Access Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.Advanced L3 Features** An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses and ISPs.Secure Networking Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control, and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. Users’ network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.Enterprise Level Features A complete lineup of L2+ features is supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to the appropriate subscribers, cutting unnecessary traffic. IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routes traffic through the switch for improved efficiency.Advanced QoS Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.ISP Features** sFlow, QinQ, L2PT PPPoE ID Insertion, and IGMP authentication features are provided, developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links.IPv6 Support IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery, and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.*Zero-Touch Provisioning requires the use of Omada Cloud-Based Controller. Please go to www.tp-link.com/en/omada-cloud-based-controller/product-list/ to find all the models supported by Omada Cloud-Based Controller.**L3 and ISP features can only be configured in standalone mode.
10G supportYes
AC input frequency50/60 Hz
AC input voltage100 - 240 V
Access Control List (ACL)Y
Basic switching RJ-45 Ethernet ports quantity48
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Broadcast storm controlY
Cables includedAC
CertificationCE, FCC, RoHS
Console portRJ-45
Depth220 mm
Flow control supportY
Form factor1U
Forwarding rate130.9 mpps
Head-of-line (HOL) blockingY
Heat dissipation111.65 BTU/h
Height44 mm
IGMP snoopingY
Jumbo frames supportY
LED indicatorsY
Link aggregationY
MAC address filteringY
MAC address table16000 entries
MIB supportY
Multicast supportY
Networking standardsIEEE 802.1D,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.3ad
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 45 °C
Port mirroringY
Power consumption (max)32.72 W
Power over Ethernet (PoE)No
Power sourceAC
Power supply includedY
Quality of Service (QoS) supportY
Quick start guideY
Rack mountingYes
Rack railsY
Rate limitingY
Spanning tree protocolY
SSH/SSL supportY
Static port securityY
Storage relative humidity (H-H)5 - 90 %
Storage temperature (T-T)-40 - 70 °C
Switch layerL2+
Switch typeManaged
Switching capacity176 Gbit/s
System event logY
VLAN supportY
Web-based managementY
Width440 mm
ARP inspectionY
Jumbo frames9
IP-MAC-Port bindingY
SFP+ module slots quantity4
BPDU filtering/protectionY
AuthenticationAuto VLAN,Guest VLAN
Multicast listener discovery (MLD) snoopingY
GARP VLAN Registration Protocol (GVRP)Y
Configuring Location Settings (CLI)Y
Product colourBlack
IPv4 & IPv6 featuresIPv6 Telnet,IPv6 tracert
DHCP featuresDHCP client,DHCP relay,DHCP server
Cloud-managedY
Public MIBY
Huawei-proprietary MIBY

tl-sg3452x.pdf

TP-Link JetStream 48-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots Data Sheet

Download (1.08M)

You might also like

  • TP-Link 10GBase-SR SFP+ LC Transceiver
    TP-Link 10GBase-SR SFP+ LC Transceiver

Similar products

  • TP-LINK 8-Port Gigabit Easy Smart Switch with 4-Port PoE
    TP-LINK 8-Port Gigabit Easy Smart Switch...
  • TP-LINK LS1005
    TP-LINK LS1005
  • TP-LINK LS1005G
    TP-LINK LS1005G
  • TP-LINK LS1008
    TP-LINK LS1008
  • TP-LINK LS1008G
    TP-LINK LS1008G

TP-Link JetStream 48-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots

48x 10/100/1000 Mbps RJ45, 4x 10G SFP+, RJ45 Console Port, Micro-USB Console Port, 176 Gbps, 130.9 Mpps, 16 K Mac, 9 KB Jumbo Frame, 440 × 220 × 44 mm

TL-SG3452X

In Stock

£512.76
£427.30 Ex VAT.
