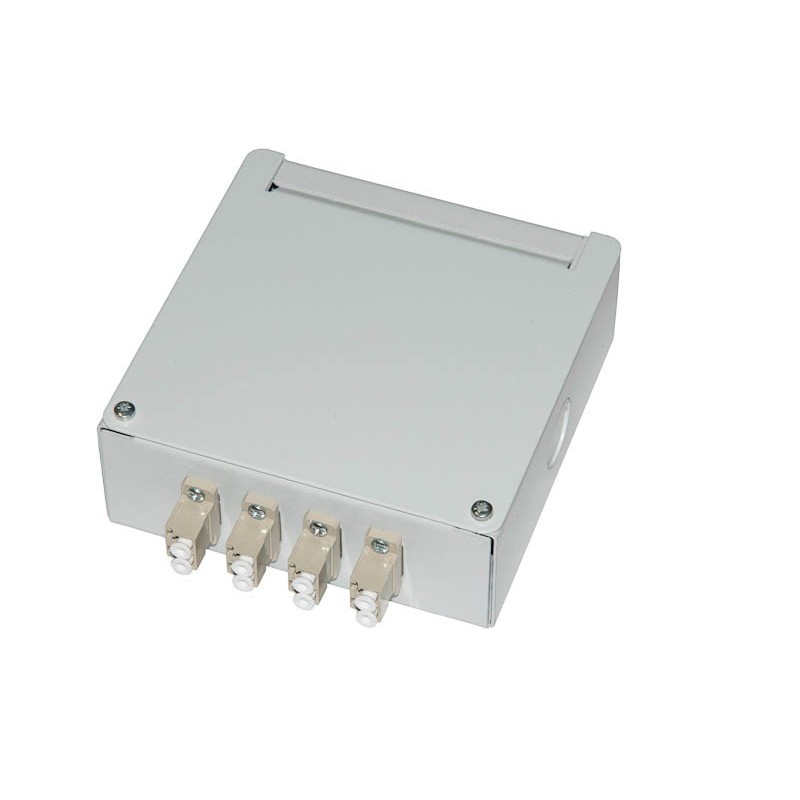

The Starlight™ range of wall mountable break out boxes are designed to provide a cost effective method of patching or splicing in situations where equipment racks or cabinets are not available.

The break out boxes are available in tough and lightweight ABS or mild steel for more demanding situations.

The boxes can be supplied fully loaded with all common adaptors including ST, SMA, SC, FC, SC Duplex, FDDI and ESCON types. They are supplied in a number of popular formats including 1in/1out, 1in/2out and 2in/2out. We provide a custom machining service enabling us to supply any other splice box configuration or hybrid enclosures on very short lead times.

4 Way =   2 x   Duplex Bulkhead Connections
8 Way =   4 x   Duplex Bulkhead Connections
12 Way = 6 x   Duplex Bulkhead Connections
24 Way = 12 x Duplex Bulkhead Connections

Dimensions:

2DX & 4DX
110 x 110 x 40mm

6DX, 8DX & 12 DX
160 x 160 x 40mm
