10G support | No |
Auto MDI/MDI-X | Y |
Auto-negotiation | Y |
Basic switching RJ-45 Ethernet ports quantity | 9 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Cables included | AC |
Certification | CE, FCC, RoHS |
Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
DC input voltage | 53.5 V |
Depth | 126 mm |
Fiber ethernet cabling technology | 1000BASE-X |
Fiber type | Single-mode |
Gigabit Ethernet (copper) ports quantity | 9 |
Heat dissipation | 266.42 BTU/h |
Height | 26 mm |
Housing material | Metal |
IGMP snooping | Y |
Input current | 1.31 A |
LED indicators | Y |
MAC address table | 4000 entries |
Manual | Y |
Networking standards | IEEE 802.1p,IEEE 802.3af,IEEE 802.3at,IEEE 802.3x |
Operating relative humidity (H-H) | 10 - 90 % |
Operating temperature (T-T) | 0 - 50 °C |
Power consumption (max) | 78.13 W |
Power consumption (typical) | 7.11 W |
Power over Ethernet (PoE) | Yes |
Power over Ethernet plus (PoE+) ports quantity | 8 |
Power supply included | N |
Quality of Service (QoS) support | Y |
Quick start guide | Y |
Storage relative humidity (H-H) | 5 - 90 % |
Storage temperature (T-T) | -40 - 70 °C |
Store-and-forward | Y |
Switching capacity | 20 Gbit/s |
Total Power over Ethernet (PoE) budget | 63 W |
User guide | Y |
Wall mountable | Y |
Width | 209 mm |
SFP module slots quantity | 1 |
MAC address auto-learning supported | Y |
MAC address auto-aging supported | Y |
Product colour | Grey |
Fanless | Y |
9x 10/100/1000, 1x 1G SFP, PoE+, 63 W PoE budget ports, 209 x 126 x 26 mm

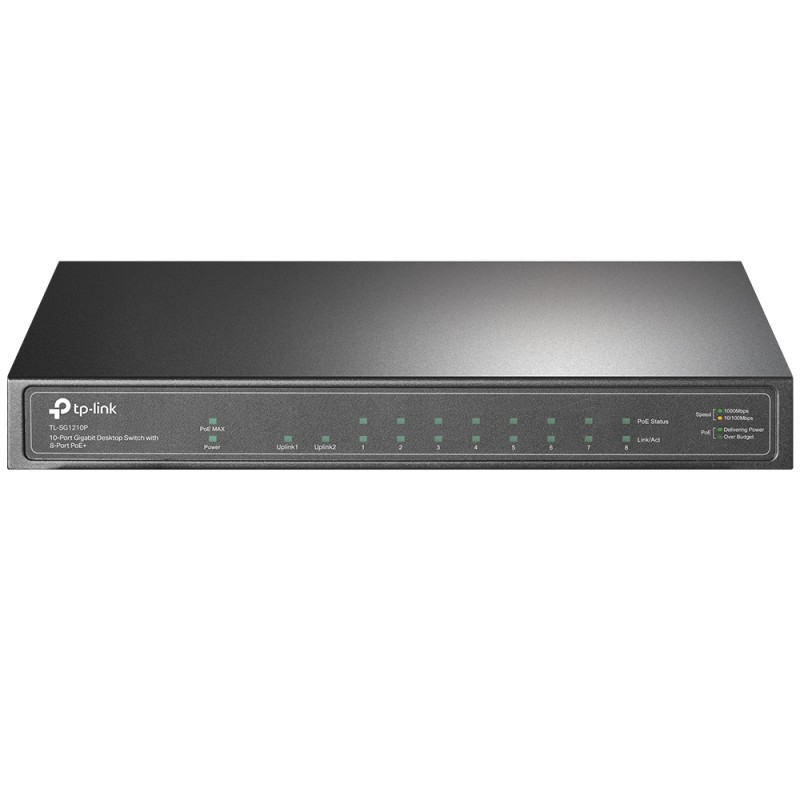

TL-SG1210P
In Stock
