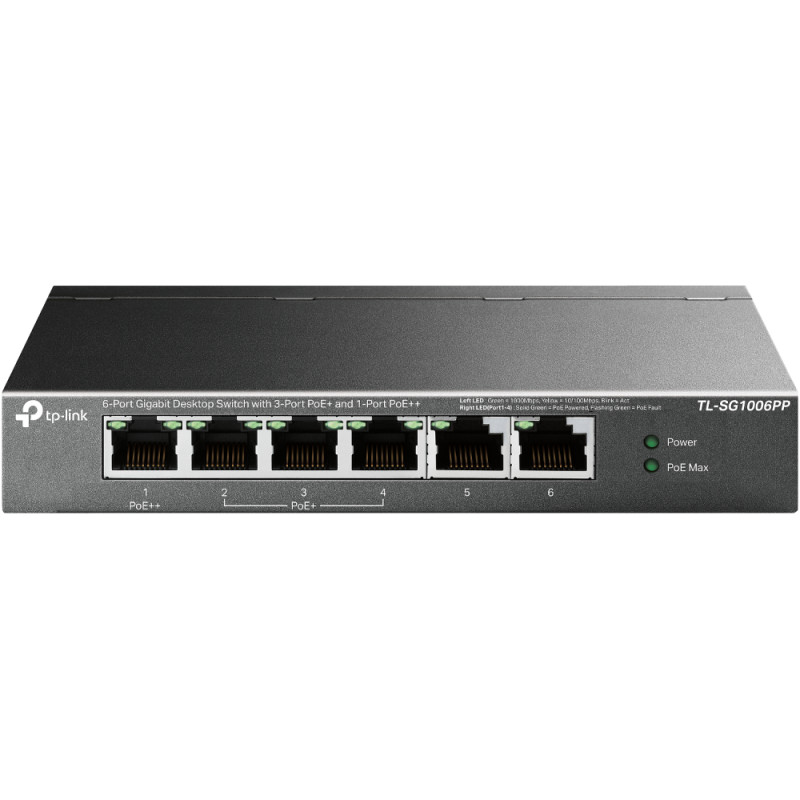

TL-SG1006PP is an unmanaged switch with 6 Gigabit ports that requires no configuration and provides
4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE
802.3af/at/bt compliant Powered Devices (PDs) at port 1 and IEEE 802.3af/at compliant Powered
Devices (PDs) at port 2-4. In this situation, the electrical power is transmitted along with data in one
single cable allowing you to expand your network to where there are no power lines or outlets, where
you wish to fix devices such as APs, IP Cameras or IP Phones, etc
4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE
802.3af/at/bt compliant Powered Devices (PDs) at port 1 and IEEE 802.3af/at compliant Powered
Devices (PDs) at port 2-4. In this situation, the electrical power is transmitted along with data in one
single cable allowing you to expand your network to where there are no power lines or outlets, where
you wish to fix devices such as APs, IP Cameras or IP Phones, etc
| 10G support | No |
| Auto MDI/MDI-X | Y |
| Auto-negotiation | Y |
| Basic switching RJ-45 Ethernet ports quantity | 6 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Cable types supported | Cat3,Cat4,Cat5,Cat5e,Cat6 |
| Certification | FCC, CE, RoHS |
| Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
| DC input voltage | 53.5 V |
| Depth | 101 mm |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Flow control support | Y |
| Forwarding rate | 8.928 Mpps |
| Heat dissipation | 16.2 BTU/h |
| Height | 25 mm |
| IGMP snooping | Y |
| Input current | 1.31 A |
| LED indicators | Y |
| MAC address table | 4000 entries |
| Networking standards | IEEE 802.1p,IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Package type | box |
| Power consumption (max) | 71.46 W |
| Power consumption (typical) | 4.75 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power source | DC/PoE |
| Power supply included | Y |
| Quality of Service (QoS) support | Y |
| Quick start guide | Y |
| Rack mounting | Yes |
| Stackable | Yes |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Store-and-forward | Y |
| Switch type | Unmanaged |
| Switching capacity | 12 Gbit/s |
| Total Power over Ethernet (PoE) budget | 64 W |
| Width | 158 mm |
| MAC address auto-learning supported | Y |
| MAC address auto-aging supported | Y |
| Product colour | Grey |
| Fanless | Y |
tl-sg1006pp.pdf
TP-Link 6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++ Data Sheet
Download (1.33M)Similar products
-
TP-LINK 8-Port Gigabit Easy Smart Switch...
-
TP-LINK LS1005
-
TP-LINK LS1005G
-
TP-LINK LS1008
-
TP-LINK LS1008G
TP-Link 6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++
6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++
tl-sg1006pp
In Stock
£71.14
£59.28 Ex VAT.
