TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-ofService (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM and DDM functions help facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ managed Switches provide a reliable, secure solution for enterprise, campus and ISP networks.
| 10G support | No |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Access Control List (ACL) | Y |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Broadcast storm control | Y |
| Cables included | LAN (RJ-45) |
| Console port | RJ-45/micro-USB |
| Depth | 180 mm |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Flow control support | Y |
| Form factor | 1U |
| Forwarding rate | 41.66 Mpps |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Head-of-line (HOL) blocking | Y |
| Heat dissipation | 70.3 BTU/h |
| Height | 44 mm |
| IGMP snooping | Y |
| IP routing | Y |
| Jumbo frames support | Y |
| LED indicators | Y |
| Link aggregation | Y |
| MAC address filtering | Y |
| MAC address table | 16000 entries |
| Management protocols | SNMPv1/v2c/v3, SNTP |
| MIB support | Yes |
| Multicast support | Y |
| Networking standards | IEEE 802.3ab,IEEE 802.3i,IEEE 802.3u,IEEE 802.3z |
| Number of static routes | 48 |
| Number of VLANs | 4000 |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 45 °C |
| Packet buffer memory | 12 MB |
| Port mirroring | Y |
| Power consumption (max) | 20.6 W |
| Power over Ethernet (PoE) | No |
| Power source | AC |
| Power supply included | N |
| Quality of Service (QoS) support | Y |
| Quick start guide | Y |
| Rack mounting | Yes |
| Rate limiting | Y |
| Spanning tree protocol | Y |
| SSH/SSL support | Y |
| Static port security | Y |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Store-and-forward | Y |
| Switch layer | L2/L3 |
| Switch type | Managed |
| Switching capacity | 56 Gbit/s |
| System event log | Y |
| VLAN support | Y |
| Web-based management | Y |
| Width | 440 mm |
| ARP inspection | Y |
| Jumbo frames | 9000 |
| IP-MAC-Port binding | Y |
| SFP module slots quantity | 4 |
| BPDU filtering/protection | Y |
| Loop protection | Y |
| Authentication | MAC-based authentication,Port-based authentication |
| Multicast listener discovery (MLD) snooping | Y |
| Static route | Y |
| GARP VLAN Registration Protocol (GVRP) | Y |
| Authentication type | AAA,RADIUS,TACACS+ |
| Configuring Location Settings (CLI) | Y |
| Product colour | Black |
| Policy-based routing | Y |
| Virtual LAN features | Private VLAN,Protocol-based VLAN,Tagged VLAN,Voice VLAN |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL),IPv6 Telnet,IPv6 ping,IPv6 tracert |
| DHCP features | DHCP client,DHCP relay,DHCP server,DHCP snooping,DHCPv6 client,DHCPv6 snooping |
| Cloud-managed | Y |
| IPv4 routes | 48 |
| IPv6 routes | 48 |
sg3428.pdf
TP-Link Omada 24-Port Gigabit L2+ Managed Switch with 4 SFP Slots Data Sheet
Download (3.48M)Similar products
-
TP-LINK 8-Port Gigabit Easy Smart Switch...
-
TP-LINK LS1005
-
TP-LINK LS1005G
-
TP-LINK LS1008
-
TP-LINK LS1008G

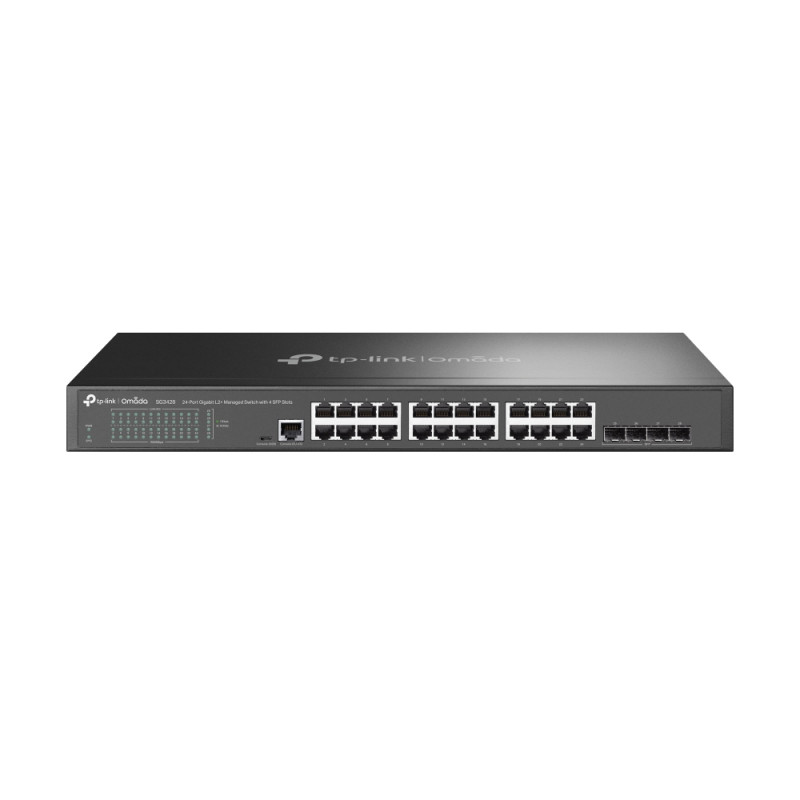

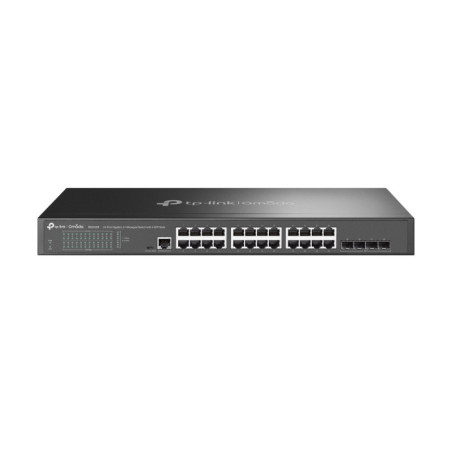

TP-Link Omada 24-Port Gigabit L2+ Managed Switch with 4 SFP Slots
24× 10/100/1000 Mbps RJ45, 4× 100/1000 Mbps SFP, RJ45/Micro-USB Console, 56Gbps, 8K MAC, 9KB Jumbo, 440×180×44 mm
sg3428
In Stock
£171.87
£143.23 Ex VAT.
