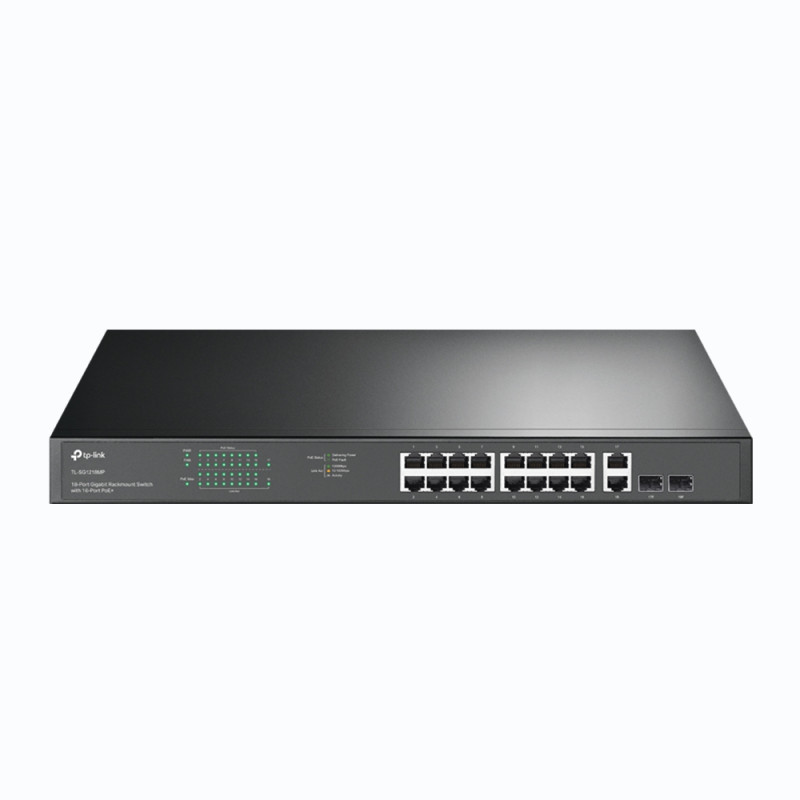

TP-Link 18-Port Gigabit Rackmount Switch with 16 PoE+
  • TP-Link 18-Port Gigabit Rackmount Switch with 16 PoE+
  • TP-Link 18-Port Gigabit Rackmount Switch with 16 PoE+
  • TP-Link 18-Port Gigabit Rackmount Switch with 16 PoE+
  • TP-Link 18-Port Gigabit Rackmount Switch with 16 PoE+
  • TP-Link 18-Port Gigabit Rackmount Switch with 16 PoE+
  • TP-Link 18-Port Gigabit Rackmount Switch with 16 PoE+
  • TP-Link 18-Port Gigabit Rackmount Switch with 16 PoE+
  • TP-Link 18-Port Gigabit Rackmount Switch with 16 PoE+
  • TP-Link 18-Port Gigabit Rackmount Switch with 16 PoE+
Professional High Power 18-Port Gigabit Rackmount Switch with 16-Port PoE+
Plug and Play, Multi-Purpose PoE Switch with Powerful Performance

Dedicated 16-Port PoE+ Switch (250 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget* for the 16× gigabit PoE+ ports makes it suitable for a wide range of applications, from surveillance to networking in offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.

QoS for a Lag-Free Experience
Ensures smooth traffic for latency sensitive applications, such as voice and video, by designating the priority of traffic based on Quality of Service (QoS).

Intelligent Power Management to Prevent Power Overload
When your total power consumption exceeds 250 W, Intelligent Power Management automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply. This protects the device from power overload operation. It also automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.

Wide Operating Temperature with Good Heat Dissipation
Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0–50℃) with reliability.

Multiple Application Scenarios
The TL-SG1218MP is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.
10G supportN
AC input frequency50 - 60 Hz
AC input voltage100 - 240 V
Auto MDI/MDI-XY
Auto-negotiationY
Basic switching RJ-45 Ethernet ports quantity18
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Cable types supportedCat3,Cat4,Cat5,Cat5e,Cat6
Cables includedAC
CertificationCE, FCC, RoHS
Combo SFP ports quantity2
Depth180 mm
Ethernet LAN data rates10,100,1000 Mbit/s
Flow control supportY
Form factor1U
Forwarding rate26.78 Mpps
Full duplexY
Gigabit Ethernet (copper) ports quantity18
Heat dissipation977.44 BTU/h
Height44 mm
Housing materialMetal
Jumbo frames supportY
LED indicatorsY
MAC address table8000 entries
Networking standardsIEEE 802.1Q,IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x
Number of fans2 fan(s)
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 50 °C
Package depth528 mm
Package height80 mm
Package weight3050 g
Package width250 mm
Packet buffer memory4.1 MB
Power consumption (max)286.64 W
Power over Ethernet (PoE)Y
Power over Ethernet plus (PoE+) ports quantity16
Power sourceAC
Power supply includedY
Quality of Service (QoS) supportY
Quick start guideY
Rack mountingY
Storage relative humidity (H-H)5 - 90 %
Storage temperature (T-T)-40 - 70 °C
Switch typeUnmanaged
Switching capacity36 Gbit/s
Total Power over Ethernet (PoE) budget250 W
Width440 mm
Jumbo frames10000
Installed SFP modules quantity0
MAC address auto-learning supportedY
MAC address auto-aging supportedY
Installed SFP+ modules quantity0
Power over Ethernet (PoE) power per port30 W
Traffic classificationY
Product colourBlack
Half duplexY
Harmonized System (HS) code85176990

TL-SG1218MP.pdf

TP-Link 18-Port Gigabit Rackmount Switch with 16 PoE+ Data Sheet

Download (347.81k)
