10G support | Yes |
AC input frequency | 50/60 Hz |
AC input voltage | 100 - 240 V |
Access Control List (ACL) | Y |
Basic switching RJ-45 Ethernet ports quantity | 4 |
Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
Broadcast storm control | Y |
Cables included | AC |
Certification | CE, FCC, RoHS |
Console port | RJ-45/micro-USB |
Depth | 180 mm |
Flow control support | Y |
Forwarding rate | 89.28 Mpps |
Head-of-line (HOL) blocking | Y |
Heat dissipation | 835.67 BTU/h |
Height | 44 mm |
IGMP snooping | Y |
IP routing | Y |
Jumbo frames support | Y |
LED indicators | Y |
Link aggregation | Y |
MAC address table | 32000 entries |
Management protocols | SNMP v1/v2c/v3 |
MIB support | Yes |
Minimum system requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ / Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® /Linux. |
Multicast support | Y |
Networking standards | IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt,IEEE 802.3x |
Number of fans | 2 fan(s) |
Number of static routes | 48 |
Number of VLANs | 4000 |
Operating relative humidity (H-H) | 10 - 90 % |
Operating temperature (T-T) | 0 - 50 °C |
Packet buffer memory | 16 MB |
Port mirroring | Y |
Power consumption (max) | 244.9 W |
Power over Ethernet (PoE) | Yes |
Power over Ethernet plus (PoE+) ports quantity | 4 |
Power source | AC |
Power supply included | Y |
Quality of Service (QoS) support | Y |
Quick start guide | Y |
Rack mount kit | Y |
Rack mounting | Yes |
Rate limiting | Y |
Routing entries | 512 |
Security algorithms | HTTPS,SSL/TLS |
Spanning tree protocol | Y |
SSH/SSL support | Y |
Storage relative humidity (H-H) | 5 - 95 % |
Storage temperature (T-T) | -40 - 70 °C |
Switch layer | L2+ |
Switch type | Managed |
Switching capacity | 120 Gbit/s |
System event log | Y |
Total Power over Ethernet (PoE) budget | 200 W |
VLAN support | Y |
Web-based management | Y |
Width | 294 mm |
ARP inspection | Y |
Jumbo frames | 9000 |
SFP+ module slots quantity | 2 |
BPDU filtering/protection | Y |
Loop protection | Y |
Authentication | Guest VLAN |
Power over Ethernet (PoE) power per port | 60 W |
Multicast listener discovery (MLD) snooping | MLD v1/v2 |
Static route | Y |
Power connector | AC-in jack |
Authentication type | AAA,RADIUS,TACACS+ |
Configuring Location Settings (CLI) | Y |
Product colour | Black |
Virtual LAN features | Private VLAN,Tagged VLAN,VLAN mapping,Voice VLAN |
DHCP features | DHCP client,DHCP relay,DHCP server,DHCP snooping,DHCPv6 client |
Cloud-managed | Y |

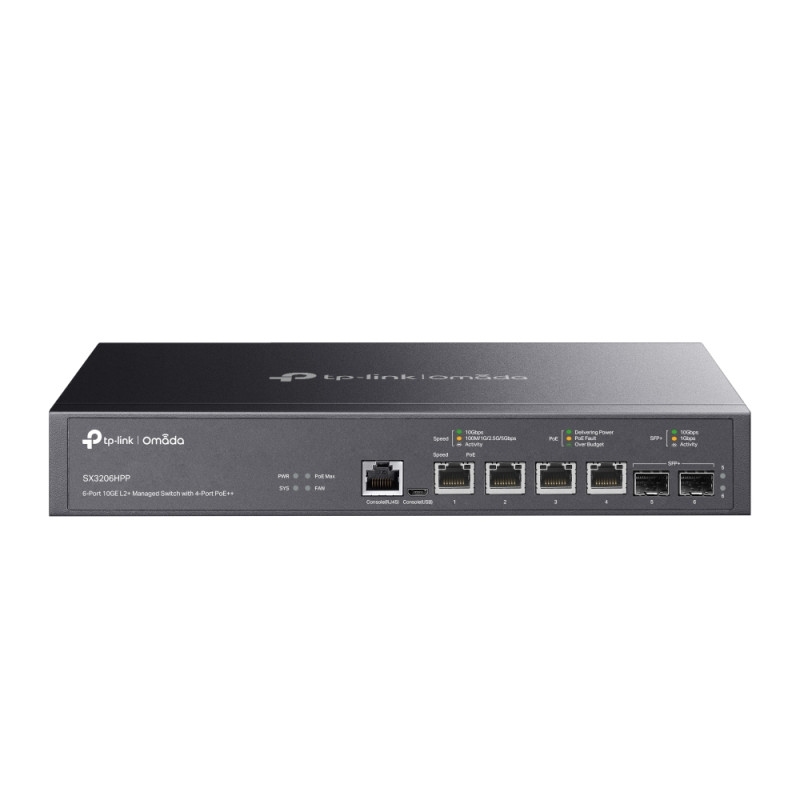

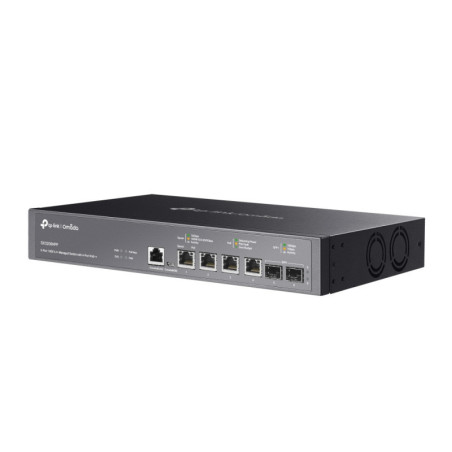

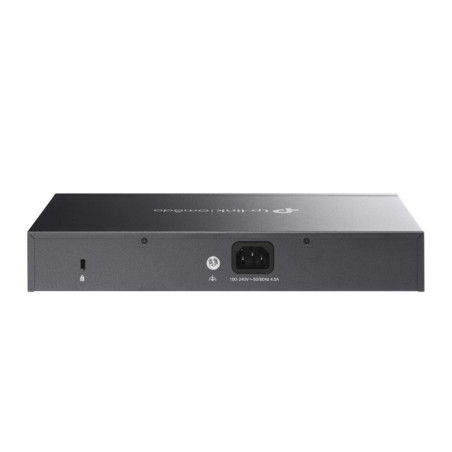

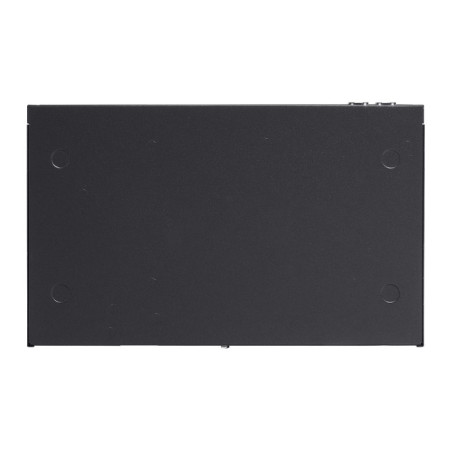

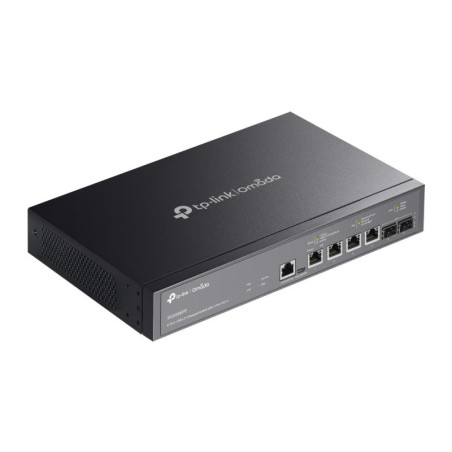

TP-Link Omada 6-Port 10GE L2+ Managed Switch with 4-Port PoE++ Data Sheet
Download (13.02M)4× 100/1000/2500/5000/10000 Mbps RJ45, 2× 10G SFP+ Slots, RJ45/Micro-USB, 120 Gbps, 32 K MAC, 9 KB Jumbo, 294×180×44 mm
sx3206hpp
Out of Stock
