10G support | Yes |
Access Control List (ACL) | Y |
Basic switching RJ-45 Ethernet ports type | N |
Broadcast storm control | Y |
Cables included | AC |
Combo SFP ports quantity | 4 |
Console port | RJ-45/micro-USB |
Depth | 220 mm |
Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
Fiber optic connector | SFP,SFP+ |
Fiber ports quantity | 20 |
Flow control support | Y |
Form factor | 1U |
Forwarding rate | 95.23 Mpps |
Head-of-line (HOL) blocking | Y |
Heat dissipation | 121.81 BTU/h |
Height | 44 mm |
IGMP snooping | Y |
IP routing | Y |
Jumbo frames support | Y |
LED indicators | Y |
Link aggregation | Y |
MAC address filtering | Y |
MAC address table | 16000 entries |
Management protocols | SNMPv1/v2c/v3, SNTP |
Manual | Y |
MIB support | RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925 |
Multicast support | Y |
Networking standards | IEEE 802.11d,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1s,IEEE 802.1w,IEEE 802.3ab,IEEE 802.3ae,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
Number of fans | 1 fan(s) |
Number of power supply units | 2 |
Number of static routes | 48 |
Number of VLANs | 4000 |
Operating relative humidity (H-H) | 10 - 90 % |
Operating temperature (T-T) | 0 - 45 °C |
Packet buffer memory | 12 MB |
Password protection | Y |
Port mirroring | Y |
Power consumption (max) | 35.7 W |
Power over Ethernet (PoE) | No |
Power source | AC |
Power supply included | Y |
Quality of Service (QoS) support | Y |
Rack mount kit | Y |
Rack mounting | Yes |
Rate limiting | Y |
Redundant power supply (RPS) support | Y |
Routing entries | 512 |
Spanning tree protocol | Y |
SSH/SSL support | Y |
Storage relative humidity (H-H) | 5 - 90 % |
Storage temperature (T-T) | -40 - 70 °C |
Store-and-forward | Y |
Switch layer | L2+ |
Switch type | Managed |
Switching capacity | 128 Gbit/s |
System event log | Y |
VLAN support | Y |
Web-based management | Y |
Width | 440 mm |
ARP inspection | Y |
Jumbo frames | 9000 |
IP-MAC-Port binding | Y |
SFP+ module slots quantity | 4 |
BPDU filtering/protection | Y |
Loop protection | Y |
Authentication | Auto VLAN,Guest VLAN,MAC-based authentication,Port-based authentication |
Active link detection | Y |
Multicast listener discovery (MLD) snooping | Y |
Static route | Y |
Power connector | AC-in jack |
GARP VLAN Registration Protocol (GVRP) | Y |
Authentication type | AAA,RADIUS,TACACS+ |
Configuring Location Settings (CLI) | Y |
Queue scheduling algorithms | SP,WRR+SP,Weighted Round Robin (WRR) |
Product colour | Black |
Policy-based routing | Y |
Virtual LAN features | Port-based VLAN,Private VLAN,Tagged VLAN,VLAN mapping,Voice VLAN |
IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL),IPv6 Telnet,IPv6 ping,IPv6 tracert |
DHCP features | DHCP client,DHCP relay,DHCP server |
Cloud-managed | Y |
IGMP proxy | Y |
IPv4 routes | 48 |
IPv6 routes | 48 |

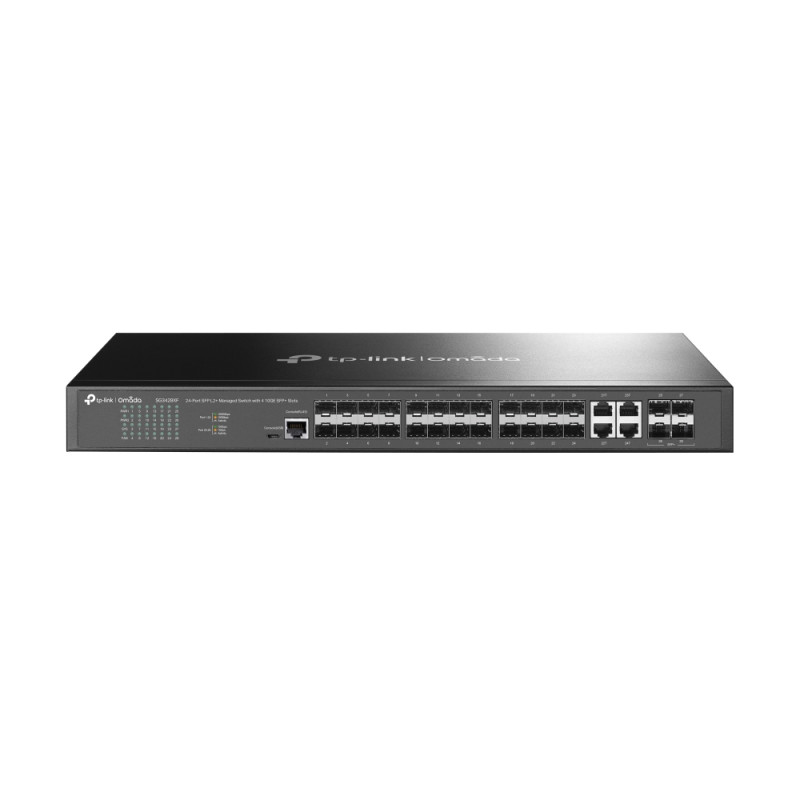

TP-Link Omada 24-Port SFP L2+ Managed Switch with 4 10GE SFP+ Slots Data Sheet
Download (13.02M)20x Gigabit SFP, 4x Gigabit SFP/RJ45 Combo, 4x 10G SFP+ Slots, 1x RJ45, 1x Micro-USB, 128 Gbps, 16 K MAC, 440 × 220 × 44 mm
sg3428xf
In Stock
