TP-LINK JetStream 28-Port Gigabit L2 Managed Switch with 24-Port PoE+
  • TP-LINK JetStream 28-Port Gigabit L2 Managed Switch with 24-Port PoE+
  • TP-LINK JetStream 28-Port Gigabit L2 Managed Switch with 24-Port PoE+
  • TP-LINK JetStream 28-Port Gigabit L2 Managed Switch with 24-Port PoE+
  • TP-LINK JetStream 28-Port Gigabit L2 Managed Switch with 24-Port PoE+
Convenient Gigabit Switch with 24-Port PoE+ for a Complete Omada Network JetStream 28-Port Gigabit L2 Managed Switch with 24-Port PoE+Dedicated 24 PoE+ Ports (384 W Budget) for Numerous Applications Features 24× 802.3af/at compliant PoE+ ports, the switch supports up to 384 W total PoE power budget. Designed to use a single Ethernet cable for both data and power transmission, it offers flexible deployment for PoE-supported devices such as wireless access points, IP cameras, and IP phones, lowering infrastructure costs for small businesses.Software Defined Networking (SDN) with Cloud Access Omada’s Software-Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network— all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.Secure Networking Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control, and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. Users’ network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.Advanced QoS Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.Abundant L2 and L2+ Features A complete lineup of L2 features are supported including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency.ISP Features sFlow, QinQ, L2PT PPPoE ID Insertion, and IGMP authentication features are provided, developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links.IPv6 Support IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.Enterprise Level Management Features Easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enables the switch to be polled for valuable status information and to send traps on abnormal events.
10G supportNo
AC input frequency50/60 Hz
AC input voltage100 - 240 V
Access Control List (ACL)Y
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Broadcast storm controlY
CertificationCE, FCC, RoHS
Console portRJ-45
Depth180 mm
Ethernet LAN data rates10,100,1000 Mbit/s
Flow control supportY
Forwarding rate41.66 Mpps
Head-of-line (HOL) blockingY
Height44 mm
IGMP snoopingY
IP routingY
Jumbo frames supportY
LED indicatorsY
Link aggregationY
MAC address filteringY
MAC address table8000 entries
Multicast supportY
Networking standardsIEEE 802.3af,IEEE 802.3at
Number of fans2 fan(s)
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 45 °C
Port mirroringY
Power consumption (max)463.8 W
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity24
Power supply includedY
Quality of Service (QoS) supportY
Quick start guideY
Rack mountingYes
Rate limitingY
Spanning tree protocolY
SSH/SSL supportY
Static port securityY
Storage relative humidity (H-H)5 - 90 %
Storage temperature (T-T)-40 - 70 °C
Switch layerL2/L2+
Switch typeManaged
Switching capacity56 Gbit/s
System event logY
User guideY
VLAN supportY
Web-based managementY
Width440 mm
ARP inspectionY
SFP module slots quantity4
BPDU filtering/protectionY
Loop protectionY
AuthenticationMAC-based authentication,Port-based authentication
Power over Ethernet (PoE) power per port30 W
Active link detectionY
Configuring Location Settings (CLI)Y
Product colourBlack
DHCP featuresDHCP client,DHCP server
Cloud-managedY

tl-sg3428mp.pdf

TP-LINK JetStream 28-Port Gigabit L2 Managed Switch with 24-Port PoE+ Data Sheet

Download (3.3M)

You might also like

  • Cat5e UTP Cable - LSZH Outer Sheath
    Cat5e UTP Cable - LSZH Outer Sheath
  • RJ45 Boot
    RJ45 Boot
  • SC Fibre Patch Panels
    SC Fibre Patch Panels
  • Cat5e RJ45 Patch Cables
    Cat5e RJ45 Patch Cables
  • 300mm Cable Ties - Pack of 100
    300mm Cable Ties - Pack of 100
  • TP-LINK TL-SM311LM
    TP-LINK TL-SM311LM
  • Loose Tube - Internal/External Fibre Cable
    Loose Tube - Internal/External Fibre Cable
  • UK Socket / UK Plug Rack PDU
    UK Socket / UK Plug Rack PDU
  • LC - LC Multimode Duplex Fibre Patch Leads
    LC - LC Multimode Duplex Fibre Patch Leads
  • UTP RJ45 Through Coupler
    UTP RJ45 Through Coupler

Similar products

  • TP-LINK 8-Port Gigabit Easy Smart Switch with 4-Port PoE
    TP-LINK 8-Port Gigabit Easy Smart Switch...
  • TP-LINK LS1005
    TP-LINK LS1005
  • TP-LINK LS1005G
    TP-LINK LS1005G
  • TP-LINK LS1008
    TP-LINK LS1008
  • TP-LINK LS1008G
    TP-LINK LS1008G

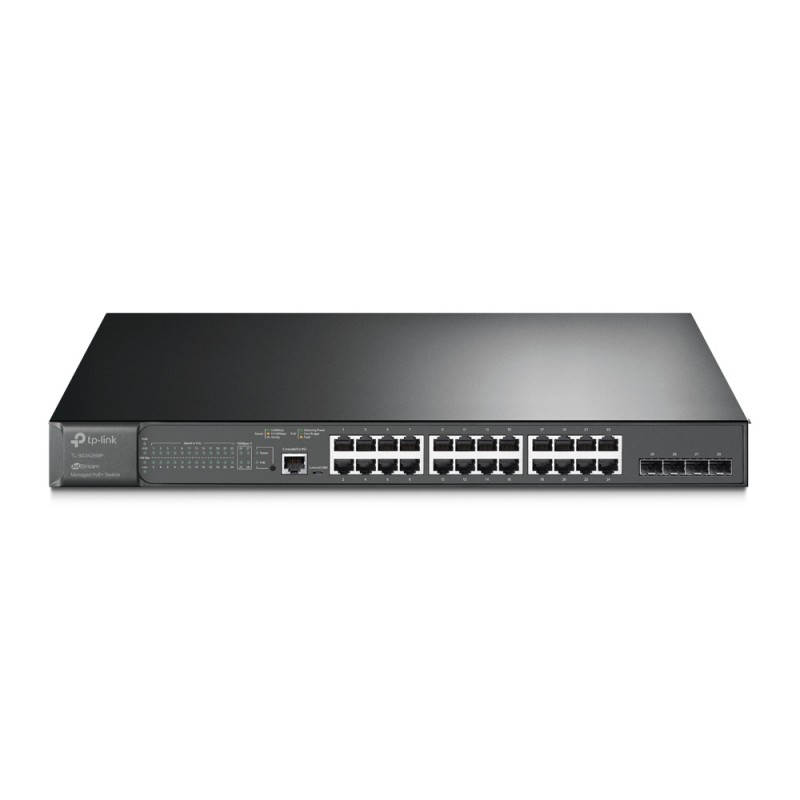

TP-LINK JetStream 28-Port Gigabit L2 Managed Switch with 24-Port PoE+

L2/L2+, 24× 10/100/1000Mbps RJ45, 4× Gigabit SFP, 1× RJ45 Console Port, PoE+, 1× Micro-USB, 440 × 330 × 44 mm

TL-SG3428MP

Out of Stock

£470.20
£391.84 Ex VAT.
