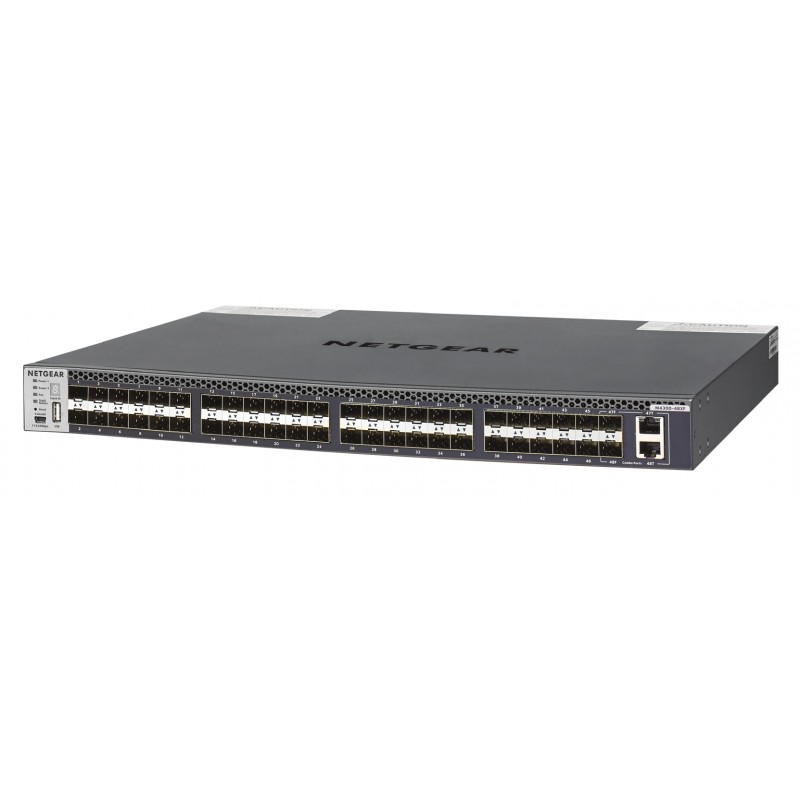

Netgear M4300-48XF
  • Netgear M4300-48XF
  • Netgear M4300-48XF
The world’s only 1G, 10G and 40G stackable platform designed for server and audiovisual installations, converged access layer and dependable core in SMB environments. M4300 stacking topologies deliver 384-port 1G, 768-port 10G, 192-port 40G, or a combination in redundant, unstoppable systems for edge to core connectivity.



The NETGEAR M4300 Stackable Switch Series delivers L2/L3/L4 and IPv4/IPv6 cost-effective services for mid-enterprise edge with full PoE+ and SMB core deployments with unrivalled ease of use: 10 Gigabit models can seamlessly stack with 1 Gigabit models within the series, enabling spine and leaf line-rate stacking topologies. Non-stop forwarding (NSF) virtual chassis architectures provide advanced High Availability (HA) with hitless failover across the stack. Dual redundant, modular power supplies equipping full width models contribute to business continuity management. Layer 3 feature set includes static, dynamic and policy-based routing – as standard. The NETGEAR M4300 Switch Series is perfect for wireless access, unified communications and professional AV-over-IP installations.
10G supportYes
Access Control List (ACL)Y
Auto-sensingY
Basic switching RJ-45 Ethernet ports quantity2
Basic switching RJ-45 Ethernet ports type10G Ethernet (100/1000/10000)
Built-in processorY
Console portRJ-45/Mini-USB
Depth535 mm
Heat dissipation577.8 BTU/h
Height88 mm
IGMP snoopingY
Internal memory1024 MB
IP routingY
Jumbo frames supportY
Link aggregationY
MAC address table128000 entries
Mean time between failures (MTBF)657392 h
Multicast supportY
Networking standardsIEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1v,IEEE 802.1w,IEEE 802.3,IEEE 802.3az,IEEE 802.3bz,IEEE 802.3u
Noise level42.4 dB
Number of multicast groups filtered4000
Number of power supply units1
Number of queues8
Number of static routes64
Number of VLANs4093
Packet buffer memory56 MB
Physical stacking (units)8
Port mirroringY
Power consumption (max)152.4 W
Power over Ethernet (PoE)No
Power supply includedY
Processor frequency800 MHz
Quality of Service (QoS) supportY
Rack mount kitY
Rack mountingYes
Routing protocolsOSPF,OSPFv3,RIP,RIP-1,RIP-2
StackableYes
Store-and-forwardY
Switch layerL3
Switch typeManaged
Switching capacity960 Gbit/s
Throughput714 Mpps
USB 2.0 ports quantity1
VLAN supportY
Weight5860 g
Width440 mm
Jumbo frames9000
SFP+ module slots quantity48
BPDU filtering/protectionY
AuthenticationGuest VLAN,MAC-based authentication
GARP VLAN Registration Protocol (GVRP)Y
Product colourBlack
Airflow directionFront-to-back airflow
Virtual LAN featuresPrivate VLAN,Tagged VLAN,Voice VLAN
DHCP featuresDHCP client,DHCP snooping,DHCPv6 client,DHCPv6 relay,DHCPv6 server,DHCPv6 snooping

xsm4348fs-100nes.pdf

Netgear M4300-48XF Data Sheet

Download (11.82M)

Similar products

  • Netgear M4300-8X8F
    Netgear M4300-8X8F
  • Netgear M4300-12X12F
    Netgear M4300-12X12F
  • Netgear M4300-24X24F
    Netgear M4300-24X24F
  • Netgear XS748T
    Netgear XS748T
  • Netgear FS108
    Netgear FS108

Netgear M4300-48XF

M4300-48XF, 960 Gbps, 714 Mpps, 48x SFP+, 2x 10GBASE-T RJ-45, 250W PSU, 440x88x535 mm

XSM4348FS-100NES

Out of Stock

£5,463.43
£4,552.86 Ex VAT.
