10G support | Yes |
AC input frequency | 50 - 60 Hz |
AC input voltage | 100 - 240 V |
Access Control List (ACL) | Y |
Basic switching RJ-45 Ethernet ports quantity | 24 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Broadcast storm control | Y |
Cables included | AC |
Certification | CE, FCC, VCCI, EN, C-Tick, CCC, CSA, UL/cUL, IEC |
Copper ethernet cabling technology | 10BASE-T,100BASE-T,100BASE-TX,1000BASE-T |
Depth | 204 mm |
Fiber ethernet cabling technology | 1000BASE‑LX,1000BASE‑SX |
Firmware upgradeable | Y |
Flow control support | Y |
Full duplex | Y |
Height | 43 mm |
IGMP snooping | Y |
IP routing | Y |
Jumbo frames support | Y |
LED indicators | Activity,Link,Speed |
Link aggregation | Y |
MAC address filtering | Y |
MAC address table | 8000 entries |
Management protocols | SNMP v1/v2/v3 |
Manual | Y |
Mean time between failures (MTBF) | 634966 h |
Multicast support | Y |
Networking standards | IEEE 802.1D,IEEE 802.1ab,IEEE 802.1as,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3x,IEEE 802.3z |
Number of fans | 3 fan(s) |
Number of multicast groups filtered | 128 |
Number of queues | 8 |
Number of static routes | 32 |
Number of VLANs | 64 |
Operating altitude | 0 - 3000 m |
Operating relative humidity (H-H) | 0 - 90 % |
Operating temperature (T-T) | 0 - 50 °C |
Packet buffer memory | 0.512 MB |
Port mirroring | Y |
Power consumption (max) | 446.7 W |
Power over Ethernet (PoE) | Yes |
Power over Ethernet plus (PoE+) ports quantity | 24 |
Power supply included | Y |
Quality of Service (QoS) support | Y |
Rack mounting | Yes |
Security algorithms | 802.1x RADIUS,HTTPS,SSL/TLS |
Spanning tree protocol | Y |
SSH/SSL support | Y |
Stackable | Yes |
Storage relative humidity (H-H) | 0 - 95 % |
Storage temperature (T-T) | -20 - 70 °C |
Store-and-forward | Y |
Supported network protocols | IPv4/IPv6 |
Switch layer | L2/L3/L4 |
Switch type | Managed |
Switching capacity | 52 Gbit/s |
System event log | Y |
Total Power over Ethernet (PoE) budget | 380 W |
VLAN support | Y |
Web-based management | Y |
Weight | 3700 g |
Width | 440 mm |
Jumbo frames | 9216 |
SFP module slots quantity | 2 |
Power connector | DC-in jack |
Product colour | Blue |
DHCP features | DHCP client |
Harmonized System (HS) code | 85176990 |

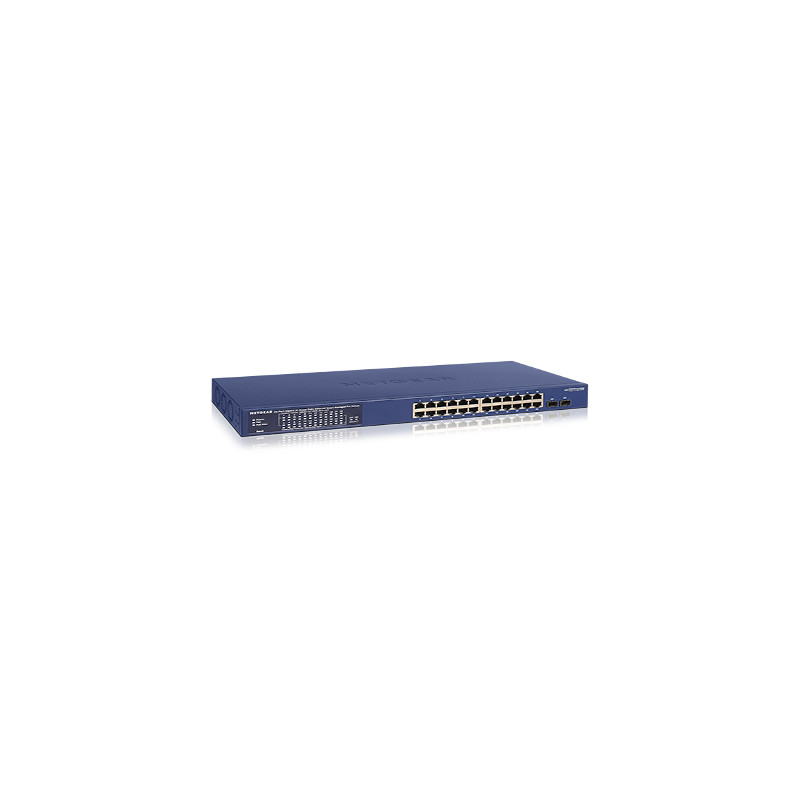

24-port RJ-45, PoE, 512Kb, 380W
GS724TPP-100EUS
Out of Stock
