Expanding Wired Connectivity for SOHO Networks



NETGEAR 300 Series Gigabit Ethernet Unmanaged Switches provide easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly. The GS305P/GS305PP and GS308P with Power-over-Ethernet (PoE) provides power and data from a single Ethernet (CAT-5) cable to devices such as IP cameras, VoIP/Internet-based phones, wireless access points, etc. Just step up to GS316, GS324 or GS348 directly to avoid congestion due to stacking up lower port count switches and be ready for future expansion.
10G supportNo
Auto MDI/MDI-XY
Auto-negotiationY
Basic switching RJ-45 Ethernet ports quantity4
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Console portRJ-45
Copper ethernet cabling technology10BASE-T,100BASE-TX,1000BASE-T
DC input voltage54 V
Depth101 mm
Gigabit Ethernet (copper) ports quantity5
Heat dissipation304 BTU/h
Height29 mm
Housing materialMetal
Input current1.66 A
Jumbo frames supportY
Latency (1 Gbps)2.4 µs
LED indicatorsActivity,Link,PoE,Power
MAC address table2000 entries
ManualY
Networking standardsIEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 40 °C
Package depth269 mm
Package height73 mm
Package weight1270 g
Package width215 mm
Packet buffer memory128 MB
Power consumption (max)88.89 W
Power consumption (typical)2.89 W
Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity4
Quality of Service (QoS) supportY
Rack mountingNo
Reset buttonY
Storage relative humidity (H-H)5 - 95 %
Storage temperature (T-T)-20 - 70 °C
Switching capacity10 Gbit/s
Total Power over Ethernet (PoE) budget83 W
Wall mountableY
Weight410 g
Width158 mm
Jumbo frames9216
Packet forwarding rate (1 Gbps)1448000 pps
Power over Ethernet (PoE) power per port30 W
Cable length detectionY
Static routeY
Power connectorDC-in jack
Product colourBlack
Shipping (inner) case width469 mm
Shipping (inner) case length237 mm
Shipping (inner) case height306 mm
Shipping (inner) case net weight8340 g
Quantity per shipping (inner) case6 pc(s)
Number of cartons per pallet layer10
Number of layers per pallet (air)4
Number of layers per pallet (sea)6
Master (outer) case width237 mm
Master (outer) case length469 mm
Master (outer) case height306 mm
Master (outer) case weight8310 g
Quantity per master (outer) case6 pc(s)

gs305pp-100uks.pdf

Netgear GS305PP Data Sheet

Download (670.32k)

You might also like

  • 300mm Deep CCS Wall Mounted Network Cabinets
    300mm Deep CCS Wall Mounted Network Cabinets
  • Cage Nuts & Bolts - Pack of 50
    Cage Nuts & Bolts - Pack of 50
  • TP-LINK TL-WA801N
    TP-LINK TL-WA801N
  • Cat6a (S/FTP) RJ45 Patch Cables
    Cat6a (S/FTP) RJ45 Patch Cables
  • 300mm 2u Cantilever Shelf
    300mm 2u Cantilever Shelf

Similar products

  • Netgear M4300-8X8F
    Netgear M4300-8X8F
  • Netgear M4300-12X12F
    Netgear M4300-12X12F
  • Netgear M4300-24X24F
    Netgear M4300-24X24F
  • Netgear XS748T
    Netgear XS748T
  • Netgear FS108
    Netgear FS108

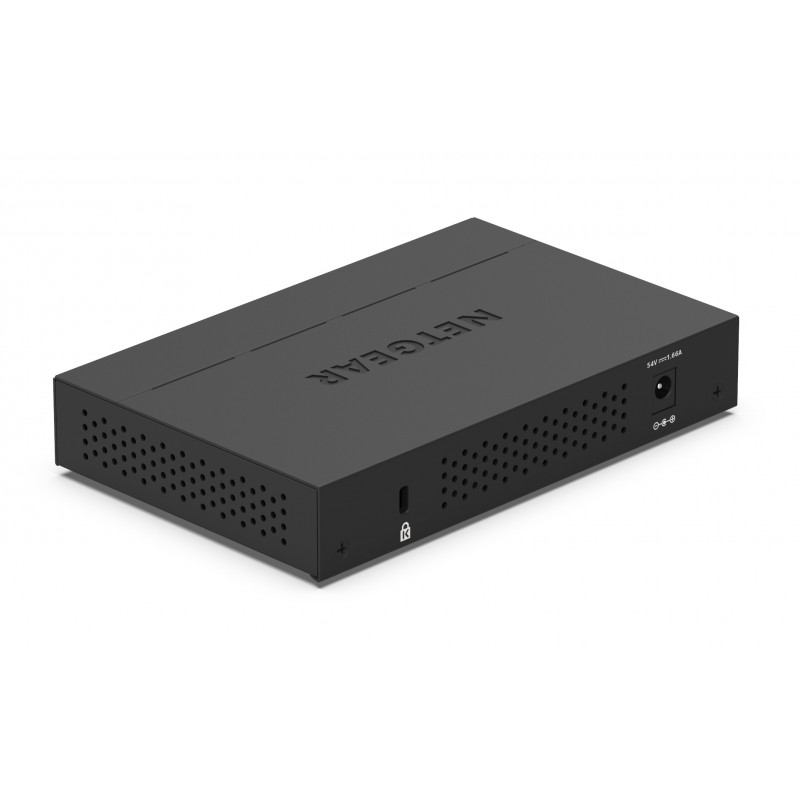

Netgear GS305PP
