Netgear GS310TP
  • Netgear GS310TP
  • Netgear GS310TP
Connectivity, Security and Affordability for Your Smart Business

As a leading provider of network equipment for SMBs, NETGEAR® understands the importance of reliable and high performance networks that are SMB budget aware. With the growth of virtualization, cloud-based services and applications like VoIP, video streaming and IP surveillance, SMB networks need to extend beyond simple reliability to performance and security. The NETGEAR S350 Gigabit Smart Managed Pro Switch series is tailored to these essential network needs of your business; delivering unprecedented non-blocking Gigabit bandwidth and solid network security at an affordable cost.



Designed for Converged Networks

NETGEAR Smart Managed Pro S350 series consists of five switch models, including 8-, 24- and 48-port Gigabit Ethernet switches and 8-, and 24-port Gigabit Ethernet PoE+ switches with 2 or 4 SFP ports for fiber uplinks, offering powerful Layer 2 features, enhanced performance and ease of use. They are purposely designed for converged networks where voice, video, data are all carried on a single network platform. Advanced features such as L2/L3/L4 Access Control Lists (ACLs), Quality of Service (QoS), Link Aggregation Control Protocol (LACP) and Spanning Tree Protocol (STP) will ensure a high-speed and highly secured network environment for your business.



Dynamic VLAN Assignment

IP phones and PCs can authenticate on the same port but under different VLAN assignment policies. Users are free to move around and enjoy the same level of network access regardless of their physical location in the network.



Robust Security Features

Build a secured, converged network with all types of traffic by preventing external attacks and blocking malware while allowing secure access for authorized users. Features include: 802.1x authentication, DHCP filtering, ACL filtering.



Comprehensive QoS Features

Advanced controls for optimized network performance and better delivery of mission-critical traffics such as voice and video. Features include: Port-based or 802.1p-based prioritization, Port-based ingress and egress rate limiting.



Auto-VoIP, Auto-Voice and Auto-Video

Automatic Voice over IP prioritization (Auto-VoIP) simplifies most complex multi-vendor IP telephone deployments, providing the best class of service to VoIP streams (both data and signaling) over other ordinary traffic by classifying traffic, and enabling correct egress queue configuration. Similarly, Auto-Video VLAN enables IGMP snooping to minimize broadcast streams



Protected Ports

Ensure no exchange of unicast, broadcast, or multicast traffic between the protected ports on the switch, thereby improving the security of your converged network. This allows your sensitive phone conversations to stay private and your surveillance video clips can be forwarded to their designated storage device without leakage or alteration.



Advanced per port PoE controls

Remote power management of PoE connected devices including operation scheduling (e.g. Wireless APs, IP security cameras, secure access door locks, IoT devices…)



DHCP Snooping

Ensure IP address allocation integrity by allowing only clients with specific IP/MAC addresses to have access to the network.



Dual Firmware Images

Dual firmware image for transparent firmware updates / configuration changes with minimum service interruption.
Access Control List (ACL)Y
Auto-negotiationY
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Broadcast storm controlY
Buffer size512 KB
Built-in processorY
Depth101 mm
DoS attack preventionY
Firmware upgradeableY
Flash memory32 MB
Flow control supportY
Height30 mm
IGMP snoopingY
Internal memory128 MB
Jumbo frames supportY
LED indicatorsY
Link aggregationY
MAC address table8000 entries
Mean time between failures (MTBF)1081119 h
Memory typeDDR-SDRAM
MIB supportRFC1213, RFC1643, RFC1493
Multicast supportY
Networking standardsIEEE 802.1D,IEEE 802.1ab,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3at,IEEE 802.3az,IEEE 802.3x
Number of multicast groups filtered256
Number of VLANs64
Operating temperature (T-T)0 - 40 °C
Output current1.25 A
Output voltage54 V
Password protectionY
Port mirroringY
Power consumption (max)69.3 W
Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity8
Processor frequency500 MHz
Quality of Service (QoS) supportY
Rack mountingNo
Rate limitingY
Security algorithms802.1x RADIUS,EAP,HTTPS,SSL/TLS
Spanning tree protocolY
Switch layerL2
Switch typeManaged
Switching capacity20 Gbit/s
System event logY
Total Power over Ethernet (PoE) budget55 W
VLAN supportY
Web-based managementY
Weight610 g
Width263 mm
SFP module slots quantity2
Loop protectionY
AuthenticationAuto VLAN,Guest VLAN,MAC-based authentication,Port-based authentication,Web-based authentication
Power connectorDC-in jack
Authentication typeHWTACACS+,IEEE 802.1x
Product colourBlack
Virtual LAN featuresVoice VLAN
DHCP featuresDHCP client
Access Control List (ACL) IPv4 entries100

gs310tp-100eus.pdf

Netgear GS310TP Data Sheet

Download (373.47k)

Similar products

  • Netgear M4300-8X8F
    Netgear M4300-8X8F
  • Netgear M4300-12X12F
    Netgear M4300-12X12F
  • Netgear M4300-24X24F
    Netgear M4300-24X24F
  • Netgear XS748T
    Netgear XS748T
  • Netgear FS108
    Netgear FS108

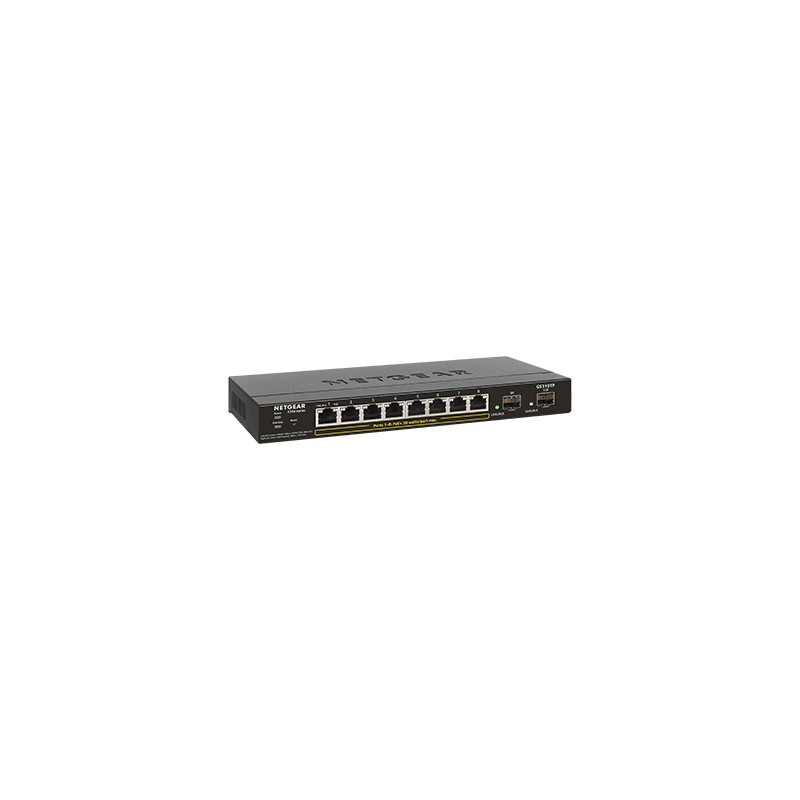

Netgear GS310TP

8-Port Gigabit PoE+ Ethernet Smart Managed Pro Switch with 2 SFP Ports, PoE+, VLAN, 0.61kg

GS310TP-100EUS

Out of Stock

£160.80
£134.00 Ex VAT.
