Netgear GS316PP
  • Netgear GS316PP
  • Netgear GS316PP
  • Netgear GS316PP
  • Netgear GS316PP
  • Netgear GS316PP
NETGEAR 300 Series Gigabit Ethernet Unmanaged Switches with PoE provide easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly.



The unmanaged switches provides power and data from a single Ethernet (CAT-5e) cable to devices such as IP cameras, VoIP/ Internet-based phones, wireless access points, etc. The majority of these models also support PoE power auto-balance and allocation feature.



NETGEAR’s unique PoE technology automatically balances the PoE power based on the device needs independent of PoE class detected. These switches deliver the power the device needs, at the most granular level.
10G supportNo
Auto MDI/MDI-XY
Auto-negotiationY
Auto-sensingY
Basic switching RJ-45 Ethernet ports quantity16
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
CertificationCE, FCC Part A, IC A, RCM, VCCI, BSMI, KC, CB, CE LVD
DC input voltage54 V
Depth102 mm
Flow control supportY
Full duplexY
Heat dissipation669.9 BTU/h
Height27 mm
Housing materialMetal
Input current3.7 A
Jumbo frames supportY
Latency (1 Gbps)3.7 µs
LED indicatorsActivity,Link,PoE,Power,Speed
MAC address table4000 entries
Mean time between failures (MTBF)2362192 h
Networking standardsIEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x
Operating altitude0 - 3000 m
Operating relative humidity (H-H)0 - 90 %
Operating temperature (T-T)0 - 40 °C
Packet buffer memory1 MB
Power consumption (max)195.9 W
Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity16
Quality of Service (QoS) supportY
Rack mountingYes
Storage temperature (T-T)-20 - 70 °C
Switch typeUnmanaged
Switching capacity32 Gbit/s
Total Power over Ethernet (PoE) budget183 W
Wall mountableY
Weight880 g
Width286 mm
Jumbo frames9216
Packet forwarding rate (1 Gbps)1448000 pps
Power over Ethernet (PoE) power per port30 W
Power connectorDC-in jack
Queue scheduling algorithmsWeighted Round Robin (WRR)
Product colourBlack

gs316pp-100eus.pdf

Netgear GS316PP Data Sheet

Download (947.79k)

You might also like

  • SC Loaded Break Out Box
    SC Loaded Break Out Box
  • Fibre Splice Protection Sleeve
    Fibre Splice Protection Sleeve
  • Cat6 RJ45 Patch Cables
    Cat6 RJ45 Patch Cables
  • Cat6 UTP RJ45 Easy Plugs
    Cat6 UTP RJ45 Easy Plugs
  • Horizontal 4 Ring Cable Managment Bars
    Horizontal 4 Ring Cable Managment Bars
  • SC Duplex Connector Clip
    SC Duplex Connector Clip
  • SC - SC Multimode Duplex Fibre Patch Leads
    SC - SC Multimode Duplex Fibre Patch Leads
  • Cat5e RJ45 Patch Cables
    Cat5e RJ45 Patch Cables
  • Cage Nuts & Bolts - Pack of 50
    Cage Nuts & Bolts - Pack of 50

Similar products

  • Netgear M4300-8X8F
    Netgear M4300-8X8F
  • Netgear M4300-12X12F
    Netgear M4300-12X12F
  • Netgear M4300-24X24F
    Netgear M4300-24X24F
  • Netgear XS748T
    Netgear XS748T
  • Netgear FS108
    Netgear FS108

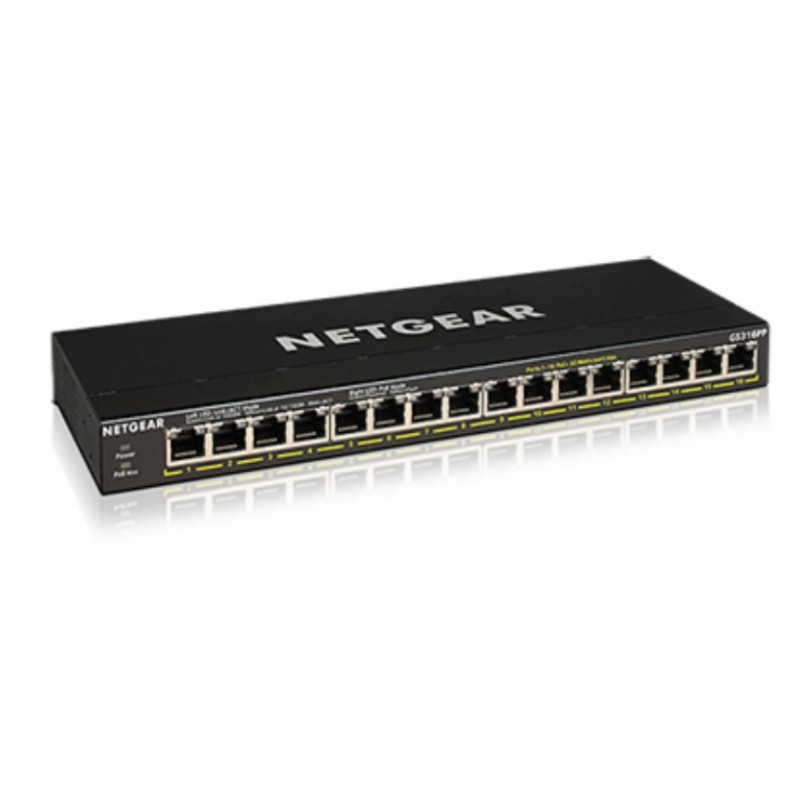

Netgear GS316PP
