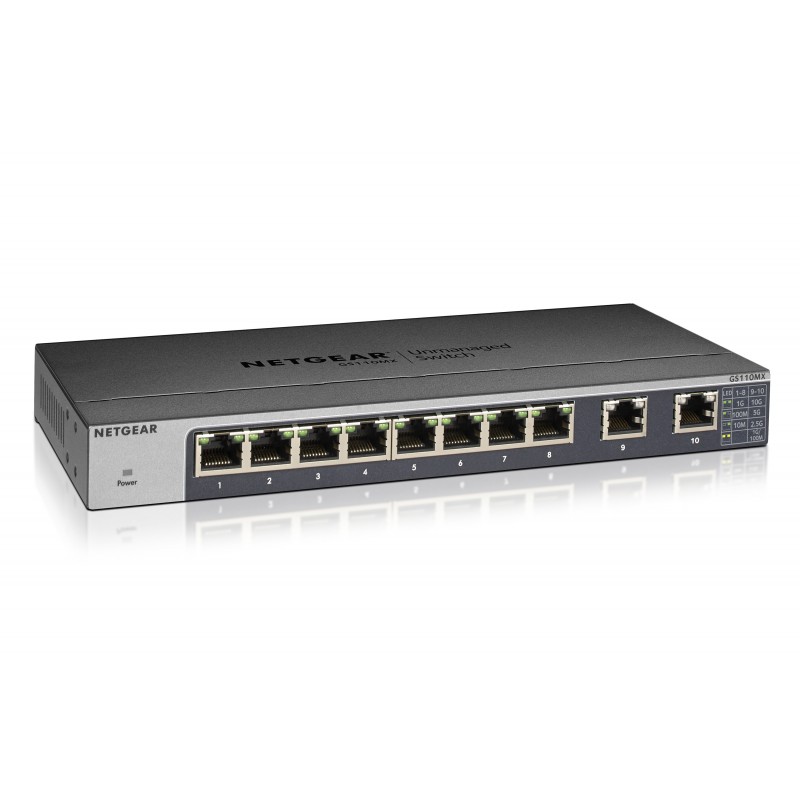

The GS110EMX and GS110MX come with 8 Gigabit Ethernet ports and 2 uplink 10-Gigabit/Multi-Gigabit (5-speed) ports that provide either 100 Megabit, 1-Gigabit, 2.5-Gigabit, 5-Gigabit or 10-Gigabit connectivity.



The two uplink ports automatically detects which speed is needed by the connected device and provides the adequate speed. Moreover these two Multi-speed switch ports can be connected with regular Cat5E Ethernet cables, without the need to upgrade to Cat6 wiring, therefore reducing wiring costs and hassle.



The GS110MX and GS110EMX offer flexible mounting options - they can be mounted in a rack, on a wall or can be used as a desktop switch. Moreover the compact and fanless design make the GS110MX and GS110EMX ideal for any home or business environment.
10G supportYes
AC adapter includedY
Basic switching RJ-45 Ethernet ports quantity10
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Cable types supportedCat5,Cat5e,Cat6,Cat6a,Cat7
Certification47 CFR FCC Part 15, SubpartB, Class B\nICES-003:2016 Issue 6, Class B\nANSI C63.4:2014\nN 55032:2012 +AC:2013 / CISPR 32:2012 / AS/NZS CISPR 32:2013, Class B\nEN 55032:2015 +AC:2016 / CISPR 32:2015 +COR1:2016 / AS/NZS CISPR 32:2015, Class B\nEN 61000-3-2:
Depth102 mm
Electromagnetic compatibilityClass B
Flow control supportY
Forwarding rate41.664 Mpps
Full duplexY
Gigabit Ethernet (copper) ports quantity8
Heat dissipation45.14 BTU/h
Height27 mm
Housing materialMetal
Jumbo frames supportY
Latency (1 Gbps)4 μs
Latency (10 Gbps)3 µs
Latency (10-100 Mbps)7 µs
LED indicatorsLink,Power,Speed
MAC address table16000 entries
Networking standardsIEEE 802.1p,IEEE 802.3az,IEEE 802.3x
Non-operating altitude0 - 3000 m
Number of queues8
Operating altitude0 - 3000 m
Operating relative humidity (H-H)0 - 90 %
Operating temperature (T-T)0 - 40 °C
Output current1.5 A
Output voltage12 V
Packet buffer memory0.128 MB
Power consumption (max)13.2 W
Power consumption (typical)4.8 W
Power over Ethernet (PoE)No
Quick start guideY
Rack mount kitY
Rack mountingYes
Rubber feetY
SafetyUL/cUL Listed (UL 60950-1)/CAN/CSA C22.2 No. 60960-1-07, EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, AS/NZS 60950.1:2015
Storage relative humidity (H-H)0 - 95 %
Storage temperature (T-T)-20 - 70 °C
Switch typeUnmanaged
Switching capacity56 Gbit/s
VLAN supportN
Wall mountableY
Wall mounting kitY
Weight740 g
Width236 mm
Jumbo frames10240
Power connectorDC-in jack
Queue scheduling algorithmsWeighted Round Robin (WRR)
Product colourBlack

GS110MX-100UKS.pdf

Netgear GS110MX Data Sheet

Download (939.83k)
