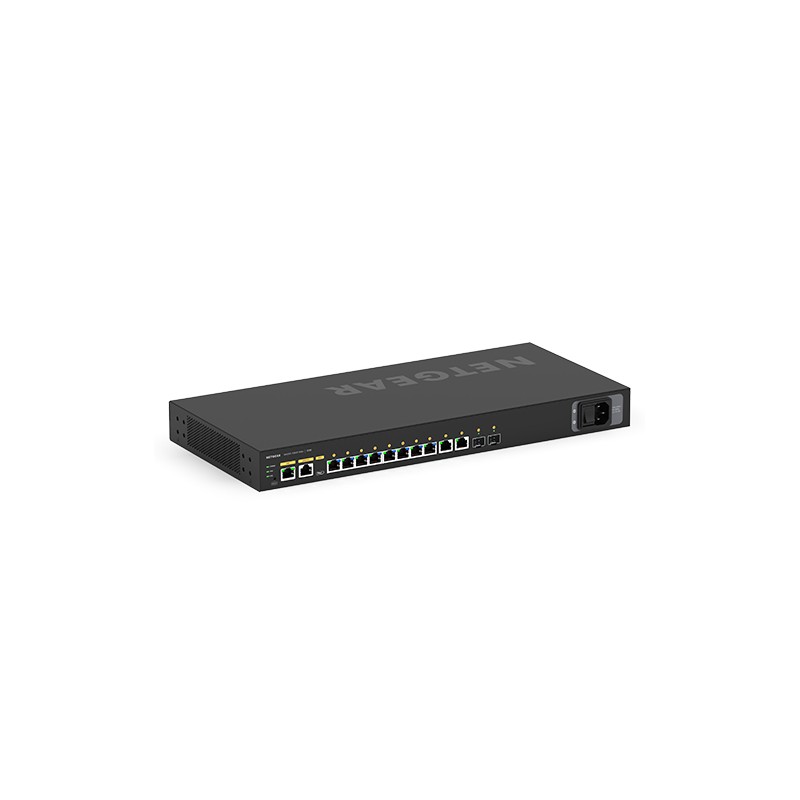

Switching engineered for 1G AV over IP with PoE+, Ultra90 PoE++ and rear-facing ports ensuring a clean integration in AV racks. M4250 switches come pre-configured for standard audio and video signals. When requirements are more specific, an AV user interface offers customization with port-based profiles. For audio Dante, Q-SYS and AES67 profiles are available, as well as an AVB profile requiring an AVB license sold separately. For video the M4250 offers profiles for NVX, SVSI, Q-SYS, NDI, Dante etc. as well as audio/video/control mixed profiles. When multiple switches, NETGEAR IGMP Plus brings automation for you to just connect them together.

M4250 Support for Audio Video Bridging (AVB)

One of the many features designed into the new M4250 product line is full support for Audio Video Bridging (AVB), an industry standard for transporting content over a network. AVB is used most often when very low latency is required such as in live performances when lip sync is critical. All of the AV Line M4250 switches can be optionally licensed for AVB support.

10G support	No
Access Control List (ACL)	Y
Basic switching RJ-45 Ethernet ports quantity	10
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Broadcast storm control	Y
Built-in processor	Y
Depth	200 mm
Form factor	1U
Full duplex	Y
Heat dissipation	559.555 BTU/h
Height	43.2 mm
IGMP snooping	Y
Internal memory	2048 MB
Jumbo frames support	Y
Latency (1 Gbps)	2.27 µs
LED indicators	PoE,Power,Status
Link aggregation	Y
MAC address table	16000 entries
Mean time between failures (MTBF)	778769 h
Multicast support	Y
Networking standards	IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt,IEEE 802.3x
Noise level	30.06 dB
Non-operating altitude	0 - 3000 m
Number of queues	8
Number of VLANs	4093
Operating altitude	0 - 3000 m
Operating relative humidity (H-H)	0 - 90 %
Operating temperature (T-T)	0 - 50 °C
Packet buffer memory	16 MB
Power consumption (typical)	163.9 W
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	8
Processor frequency	1250 MHz
Processor model	ARM Cortex-A9
Quality of Service (QoS) support	Y
Rack mounting	Yes
Rate limiting	Y
Spanning tree protocol	Y
SSH/SSL support	Y
Storage relative humidity (H-H)	0 - 95 %
Storage temperature (T-T)	-20 - 70 °C
Store-and-forward	Y
Switch layer	L2/L3
Switch type	Managed
Switching capacity	24 Gbit/s
Throughput	17.86 Mpps
Total Power over Ethernet (PoE) budget	150 W
VLAN support	Y
Weight	2850 g
Width	440 mm
Jumbo frames	12000
SFP module slots quantity	2
BPDU filtering/protection	Y
Loop protection	Y
Authentication	MAC-based authentication
Power over Ethernet (PoE) power per port	30 W
Authentication type	RADIUS
Product colour	Black
IPv4 multicast entries	2000
IPv6 multicast entries	2000
Virtual LAN features	MAC address-based VLAN,Private VLAN,Protocol-based VLAN,Tagged VLAN,Voice VLAN
DHCP features	DHCP Option 82,DHCP relay,DHCP server,DHCP snooping,DHCPv6 client,DHCPv6 relay,DHCPv6 server,DHCPv6 snooping
