Netgear GS308PP
  • Netgear GS308PP
  • Netgear GS308PP
  • Netgear GS308PP
  • Netgear GS308PP
  • Netgear GS308PP
  • Netgear GS308PP
NETGEAR 300 Series Gigabit Ethernet Unmanaged Switches with PoE provide easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly.



The unmanaged switches provides power and data from a single Ethernet (CAT-5e) cable to devices such as IP cameras, VoIP/ Internet-based phones, wireless access points, etc. The majority of these models also support PoE power auto-balance and allocation feature.



NETGEAR’s unique PoE technology automatically balances the PoE power based on the device needs independent of PoE class detected. These switches deliver the power the device needs, at the most granular level
10G supportNo
Auto MDI/MDI-XY
Auto-negotiationY
Auto-sensingY
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
CertificationCE Mark, \nFCC Part 15 \nClass A, \nIC Class A, \nRCM, \nVCCI,\nBSMI, \nKC
DC input voltage54 V
Depth102 mm
Flow control supportY
Full duplexY
Heat dissipation300.6 BTU/h
Height27 mm
Housing materialMetal
Input current1.66 A
Jumbo frames supportY
Latency (1 Gbps)3 µs
LED indicatorsActivity,Link,PoE,Power,Speed
MAC address table4000 entries
Mean time between failures (MTBF)2752476 h
Networking standardsIEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x
Operating relative humidity (H-H)0 - 90 %
Operating temperature (T-T)0 - 40 °C
Packet buffer memory0.192 MB
Power consumption (max)87.9 W
Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity8
Quality of Service (QoS) supportY
Storage relative humidity (H-H)0 - 3000 %
Storage temperature (T-T)-20 - 70 °C
Switch typeUnmanaged
Switching capacity16 Gbit/s
Total Power over Ethernet (PoE) budget130 W
Wall mountableY
Weight600 g
Width236 mm
Jumbo frames9216
Packet forwarding rate (1 Gbps)1448000 pps
Power over Ethernet (PoE) power per port30 W
Power connectorDC-in jack
Product colourBlack
Power over Ethernet (PoE) type supportedPoE+

gs308pp-100eus.pdf

Netgear GS308PP Data Sheet

Download (947.79k)

You might also like

  • 100mm 1u 10" Shelf
    100mm 1u 10" Shelf
  • 12 Port Cat6 10" UTP Patch Panel
    12 Port Cat6 10" UTP Patch Panel

Similar products

  • Netgear M4300-8X8F
    Netgear M4300-8X8F
  • Netgear M4300-12X12F
    Netgear M4300-12X12F
  • Netgear M4300-24X24F
    Netgear M4300-24X24F
  • Netgear XS748T
    Netgear XS748T
  • Netgear FS108
    Netgear FS108

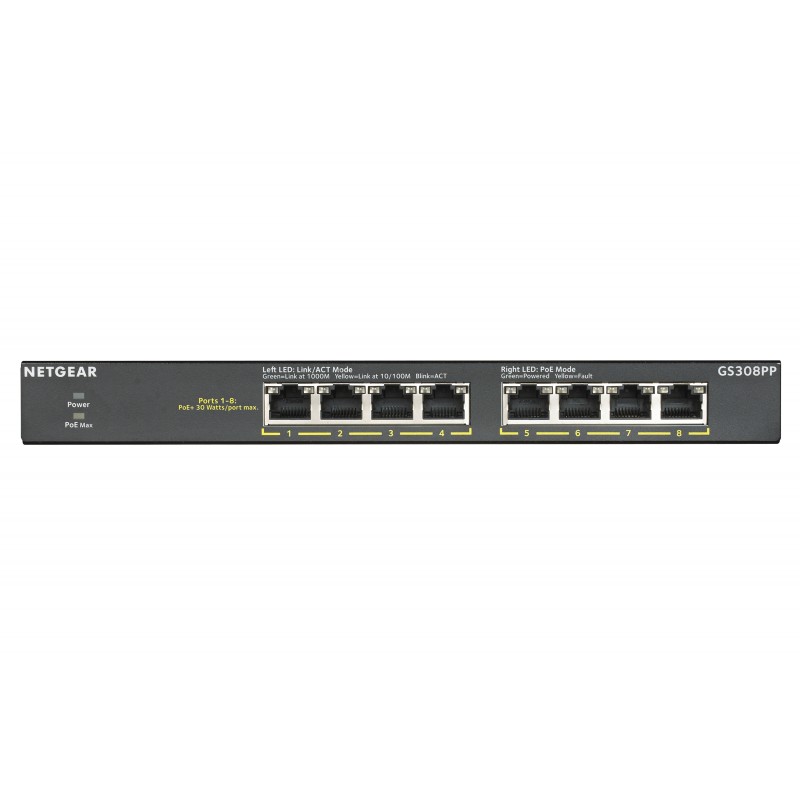

Netgear GS308PP

8-Port Gigabit Ethernet Unmanaged PoE+ Switch with FlexPoE

GS308PP-100EUS

In Stock

£135.06
£112.55 Ex VAT.
