10G support | Yes |
AC input frequency | 50 - 60 Hz |
AC input voltage | 100 - 240 V |
Basic switching RJ-45 Ethernet ports quantity | 4 |
Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
Certification | 47 CFR FCC, ICES-003:2016 Issue 6, ANSI C63.4:2014, EN 55032:2012+AC2013, EN 55024:2010, EN 61000-3-2:2014, EN 6100-3-3:2013, AS/NZS CISPR 32:2015, VCCI V-3/2015.04, V-4/2012.4, CNS 13438 |
Colour of product | Grey,Silver |
Console port | RJ-45 |
DC-in jack | Y |
Depth | 169 mm |
Heat dissipation | 85.3 BTU/h |
Height | 43.2 mm |
Input current | 1.5 A |
Jumbo frames support | Y |
LED indicators | Y |
MAC address table | 2000 entries |
Mean time between failures (MTBF) | 1093237 h |
Networking standards | IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ae,IEEE 802.3an,IEEE 802.3aq,IEEE 802.3az,IEEE 802.3bz,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
Operating altitude | 0 - 3000 m |
Operating relative humidity (H-H) | 0 - 95 % |
Operating temperature (T-T) | 0 - 50 °C |
Packet buffer memory | 128 MB |
Power consumption (max) | 22.5 W |
Power consumption (typical) | 12.25 W |
Quality of Service (QoS) support | Y |
Rack mounting | Yes |
Safety | CE: CB 60950-1, LVD 60950-1, AUS/NZ: AS/NZS 60950-1, USA: UL 60950-1, SNE VA, BSMI |
Storage relative humidity (H-H) | 0 - 95 % |
Storage temperature (T-T) | -20 - 70 °C |
Switch type | Unmanaged |
Switching capacity | 100 Gbit/s |
Weight | 1380 g |
Width | 328 mm |
Jumbo frames | 9000 |
Installed SFP+ modules quantity | 1 |

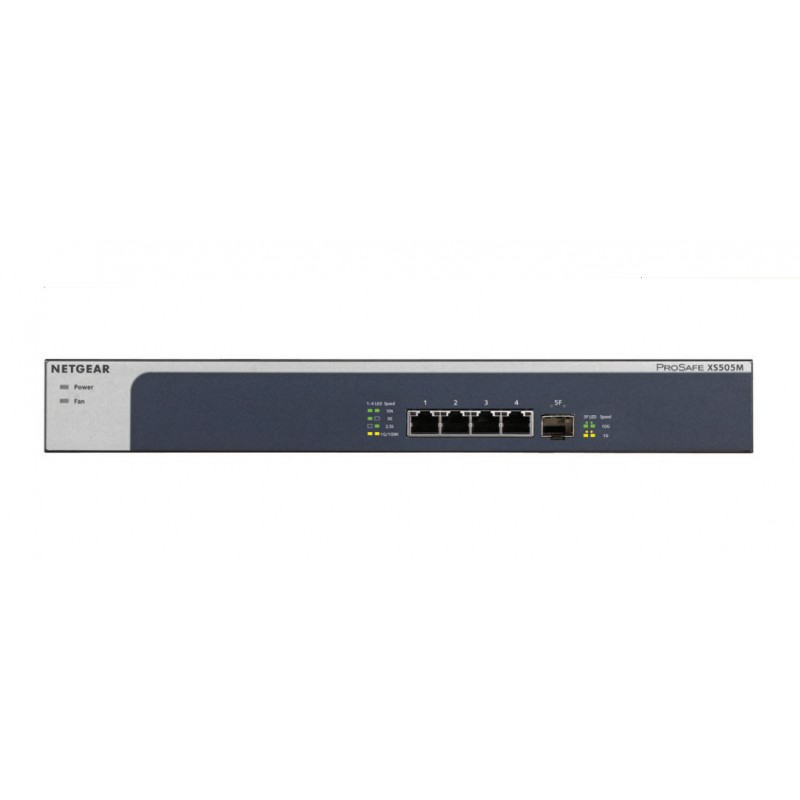

XS505M-100EUS
Out of Stock
