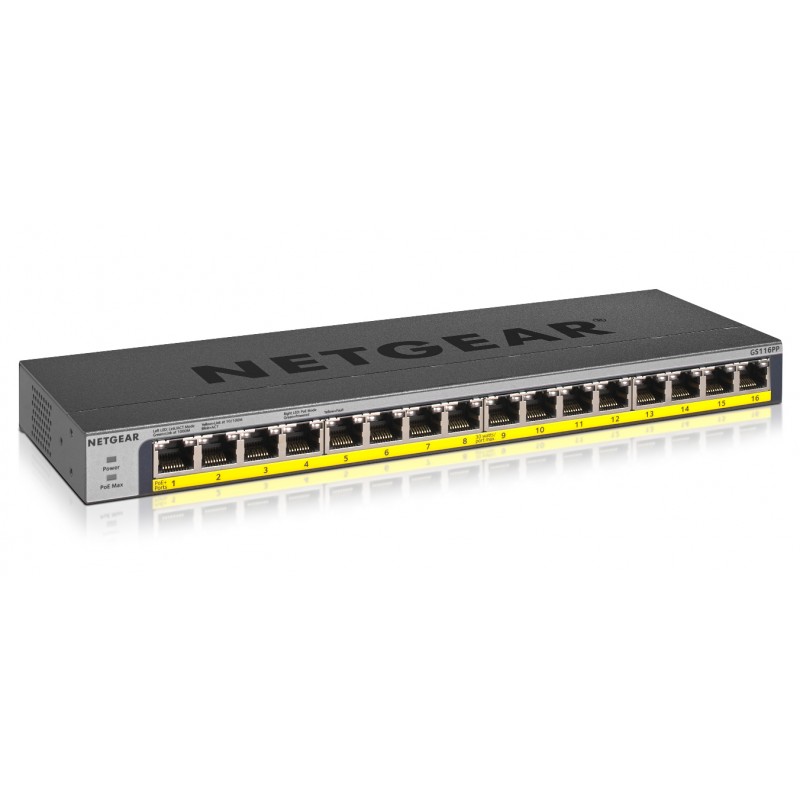

Netgear GS116PP
  • Netgear GS116PP
  • Netgear GS116PP
  • Netgear GS116PP
Instant Connectivity with Reliable Performance

The NETGEAR Gigabit Unmanaged Switch series helps businesses cost-effectively expand their network to Gigabit speeds and higher port counts. These unmanaged Gigabit switches come in a wide range of models including desktop, wall-mount and rackmount form factors and 5 to 24 port configurations.



They are energy efficient, built to last, and rigorously tested to provide the reliability businesses need. 802.1p traffic prioritization and jumbo frame support allow for seamless integration with more sophisticated networks.



High quality components and Energy Efficiency

Unmanaged Gigabit switches are built with Top Quality components to assure a long life. Unmanaged switches are built to last, and rigorously tested to provide the reliability businesses need.



NETGEAR Unmanaged Switches also support the latest Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active ports or when there is no link or no activity detected. It can further save energy when a short cable is used.



PoE+ Support (GS108LP,GS108PP,GS116LP,GS116PP)

Power-Over-Ethernet (PoE) and PoE+ options available for powering IP Security Cameras, VoIP phones, wireless access points, and other Ethernet-powered devices.



These PoE+ Switches are not just flexible in terms of placement they are also flexible in terms of PoE Power. Thanks to the interchangeable external Power Supply and with a built-in PoE selector they allow you to increase or decrease the PoE budget at any time.



The flexible mounting system gives you the flexibility to place them in a desktop environment, mounted in a rack (accessories included) or wall-mounted.
AC input voltage54 V
Basic switching RJ-45 Ethernet ports quantity16
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Buffer size1000 KB
CertificationCE, FCC, ICES-003, VCCI, RCM, BSMI, KC, CB, CE LVD, BSMI, EAC, RCM, KC, EN 60950-1
Depth102 mm
Heat dissipation680.58 BTU/h
Height27 mm
Input current3.7 A
LED indicatorsY
MAC address table4000 entries
Mean time between failures (MTBF)2088514 h
Networking standardsIEEE 802.1p,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3x
Number of fans1 fan(s)
Operating altitude0 - 3000 m
Operating relative humidity (H-H)0 - 90 %
Operating temperature (T-T)0 - 40 °C
Power consumption (typical)200 W
Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity16
Rack mountingYes
Storage relative humidity (H-H)0 - 95 %
Storage temperature (T-T)-20 - 70 °C
Switch typeUnmanaged
Switching capacity32 Gbit/s
Total Power over Ethernet (PoE) budget183 W
Weight880 g
Width286 mm
Product colourBlack

GS116PP-100EUS.pdf

Netgear GS116PP Data Sheet

Download (676.5k)

Similar products

  • Netgear M4300-8X8F
    Netgear M4300-8X8F
  • Netgear M4300-12X12F
    Netgear M4300-12X12F
  • Netgear M4300-24X24F
    Netgear M4300-24X24F
  • Netgear XS748T
    Netgear XS748T
  • Netgear FS108
    Netgear FS108

Netgear GS116PP

16x 10/100/1000 Base-T RJ45 ports, 16x PoE/PoE+ 802.3af/802.3at Ports, PoE Budget 183W, PSU 200W, Fanless, Desktop, Wall/Rack mount

GS116PP-100EUS

In Stock

£262.08
£218.40 Ex VAT.
