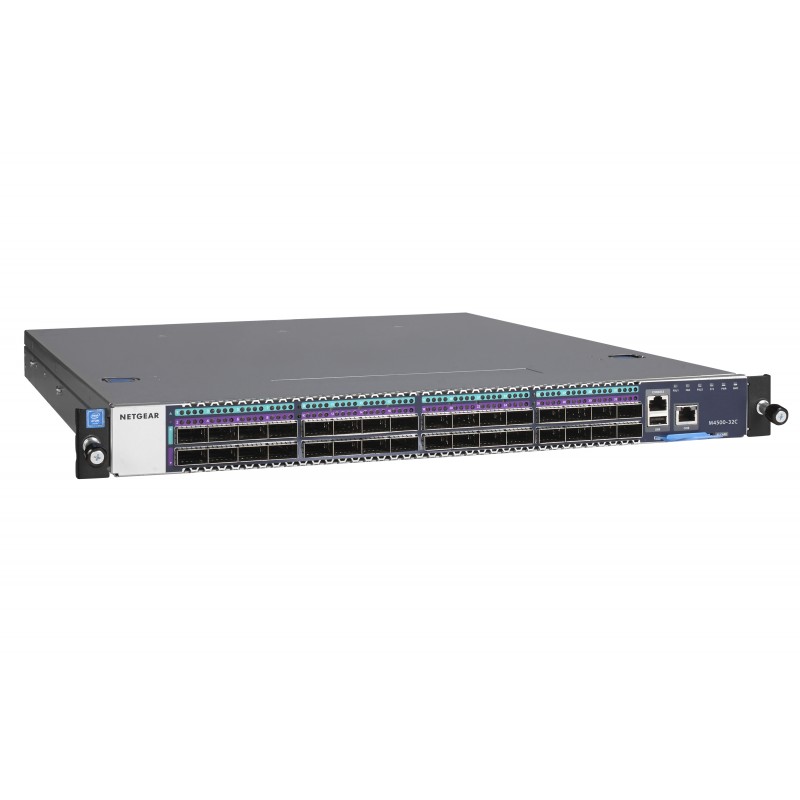

Netgear M4500-32C
  • Netgear M4500-32C
  • Netgear M4500-32C
  • Netgear M4500-32C
  • Netgear M4500-32C
  • Netgear M4500-32C
The trend of moving matrix switching into the Ethernet network is inevitable and SDVoE already delivers capabilities far beyond that of a traditional matrix switch. Historically it has been simple to design AV over IP systems of up to 96 I/Os using a single switch using Layer-2 Multicast IGMP. However, larger installations required data center-class 100G Ethernet switches with more complex Layer-3 Multicast Routing techniques, adding complexity and cost to the Ethernet infrastructure. As SDVoE systems become ever larger, a new class of switches has come to market. The M4500 switches combine the configurability of a matrix switch with the power and scalability of Ethernet to support hundreds of AV over IP endpoints, at a price point dramatically cheaper than comparable matrix switches. Removing the need for Layer-3 PIM routing, these new switches offer IGMP Plus and greatly simplify system architectures with the same well-known IGMP techniques across the entire AV over IP network.
10G supportYes
Access Control List (ACL)Y
Auto MDI/MDI-XY
Auto-negotiationY
Auto-sensingY
Basic switching RJ-45 Ethernet ports quantity32
Basic switching RJ-45 Ethernet ports type10G Ethernet (100/1000/10000)
Built-in processorY
Console portRJ-45
Electromagnetic compatibilityCE, FCC 15 A, VCCI A, A EN 55022, (CISPR 22) A, EN 50082-1, EN 55024
Fiber ethernet cabling technology100BASE-X
Fiber optic connectorQSFP+
Flash memory256 MB
Flow control supportY
Form factor1U
Housing materialMetal
IGMP snoopingY
Internal memory8000 MB
LED indicatorsY
Link aggregationY
MAC address table32000 entries
Management protocolsWeb GUI, HTTPs, CLI, Telnet, SSH, SNMP, MIBs RSPAN, Radius Users, TACACS+
ManualY
Memory typeDDR3-SDRAM
Multicast supportY
Networking standardsIEEE 802.1AX,IEEE 802.3ad
Noise level64 dB
Number of VLANs4000
Package depth888 mm
Package height186 mm
Package typebox
Package weight20490 g
Package width593 mm
Port mirroringY
Power consumption (max)426 W
Quality of Service (QoS) supportY
Rack mountingYes
Rate limitingY
Reset buttonY
Security algorithmsHTTPS,SNMP,SSH
Spanning tree protocolY
SSH/SSL supportY
Switch layerL2/L3/L4
Switch typeManaged
Switching capacity6400 Gbit/s
System event logY
USB 2.0 ports quantity1
User guideY
VLAN supportY
Web-based managementY
ARP inspectionY
BPDU filtering/protectionY
Power connectorDC-in jack
Product colourBlack
Virtual LAN featuresPrivate VLAN,Tagged VLAN,Voice VLAN
DHCP featuresDHCP client,DHCP relay,DHCP server
Quantity per master (outer) case1 pc(s)

csm4532-100eus.pdf

Netgear M4500-32C Data Sheet

Download (1.18M)

Similar products

  • Netgear M4300-8X8F
    Netgear M4300-8X8F
  • Netgear M4300-12X12F
    Netgear M4300-12X12F
  • Netgear M4300-24X24F
    Netgear M4300-24X24F
  • Netgear XS748T
    Netgear XS748T
  • Netgear FS108
    Netgear FS108

Netgear M4500-32C

M4500-32C, 32 ports 1x100G; 1x50G; 1x40G; 4x25G; 4x10G, RJ45 RS232, USB

CSM4532-100EUS

Out of Stock

£22,829.10
£19,024.25 Ex VAT.
